Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction criteria to the line(s) that should be checked in the table:

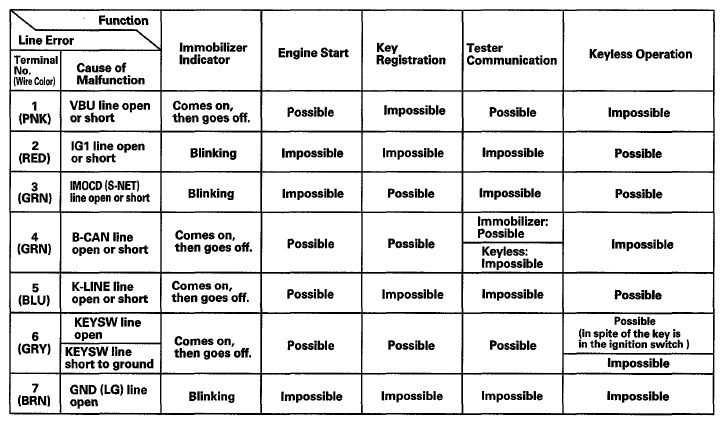

Fig 1: Malfunction Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
