Rack End Removal and Installation: Notes

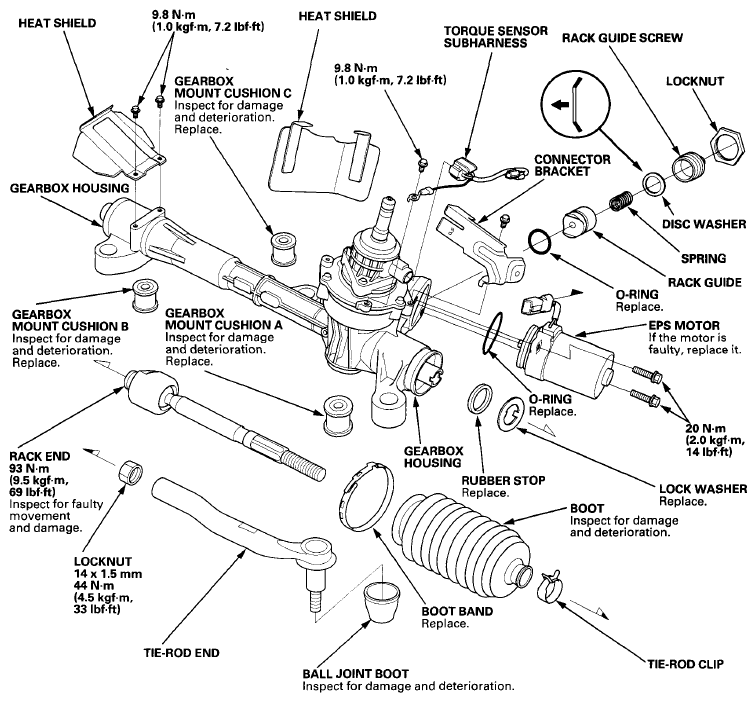

Fig 1: Exploded View Of Steering Gearbox Rack End With Torque Specifications
G08093563Courtesy of AMERICAN HONDA MOTOR CO., INC.
