Knock Sensor Replacement

Remove the dipstick.
Disconnect the knock sensor 2P connector (A).

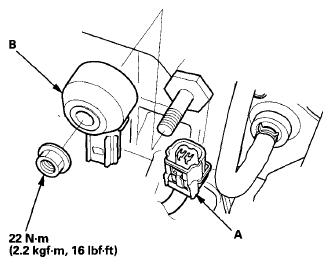

Fig 1: Lnock Sensor, 2P Connector And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the knock sensor (B).
Install the parts in the reverse order of removal.
