D position D3 Driving Mode Control

This automatic transmission is equipped with a D3 driving mode. D has two modes; general driving mode (shifts gears automatically 1st through 5th gear), and the D3 driving mode (shifts gears automatically 1st through 3rd gear). The transmission switches modes when you press the D3 button on the shift lever knob in D.

Fig 1: Identifying D3 Switch And Shift Lever Knob
G06966801Courtesy of AMERICAN HONDA MOTOR CO., INC.

In the D3 driving mode, the D3 indicator next to the D indicator in the gauge control module comes on. The D3 driving mode is canceled by pressing the D3 button, and the D3 indicator goes off. Also, the D3 driving mode is canceled when the ignition switch is turned to LOCK (0). When the shift lever is moved out of D in the D3 driving mode, the D3 indicator goes off, but the transmission returns to the D3 driving mode when the shift lever is returned to D, and the D3 indicator comes on.

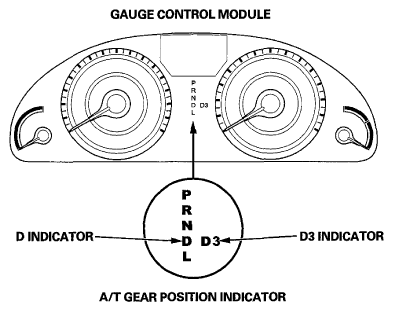

Fig 2: Identifying Gauge Control Module And A/T Gear Position Indicator
G06966802Courtesy of AMERICAN HONDA MOTOR CO., INC.
