Windshield Wiper Control Unit/Motor Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

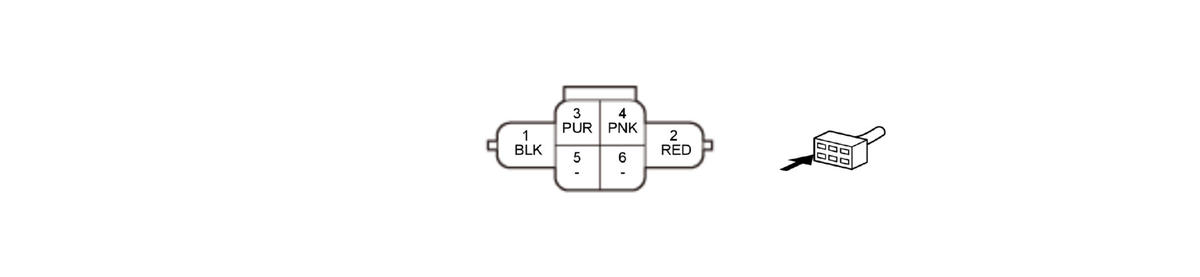

Windshield Wiper Control Unit/Motor 6P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | PGND | Ground for windshield wiper control unit/motor | Less than 0.2 V at all times |
| 2 | +B WIPER | Power source for windshield wiper control unit/motor | About battery voltage at all times |
| 3 | BACK UP(WIPER) | Detects BACK UP(WIPER) line | With wiper HI or LO operation: about battery voltage If none of the above conditions are met: less than 0.2 V |
| 4 | LIN(FR WIPER) | Communication line | --- |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
