Gearbox Mount Cushion Replacement
- Remove the steering gearbox (see STEERING GEARBOX REMOVAL AND INSTALLATION
).
- Position a 34 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C), and a 10 mm nut (D) as shown.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Hold the flange bolt with a wrench, and tighten the nut with a wrench. Remove the gearbox mount cushion (E).
- Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place the mount cushion on the gearbox mounting cushion hole.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Position a 34 mm socket (B) on the flange part of the gearbox housing with a washer, a flange bolt, and a nut as shown.

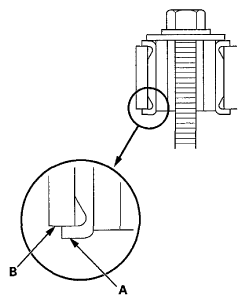

- Install the gearbox mount cushion by tightening the nut until the mount cushion edge (A) properly fits on the gearbox flange surface (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the steering gearbox (see INSTALLATION
).
