GA-Net Bus Configuration

The GA-Net bus passes audio and navigation commands throughout the navigation and audio components. These commands include navigation touch screen and hard button signals, audio/XM selections by voice, and XM station and music title names. Because the entire bus is "daisy chained" between components (see diagram), any open or short in the GA-Net bus harness will cause any or all of these functions to become inoperative. The addition of any audio accessory must maintain the continuity of the GA-Net bus by installing the Y cable included with the accessory kit.

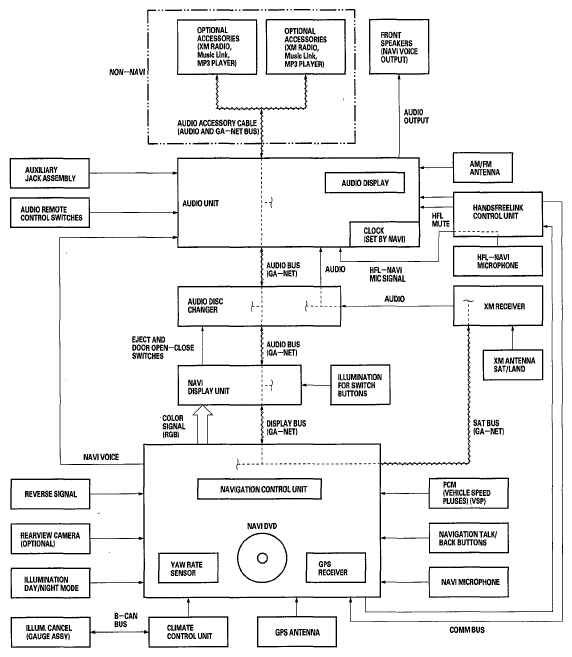

Fig 1: GA-Net Bus Configuration Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: GA-Net Bus Configuration Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
