Removal & Installation

NOTE:

• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
• If the immobilizer-keyless control unit is replaced, do the immobilizer-keyless control unit registration. If the original immobilizer-keyless control unit is installed, confirm that all systems work properly.

• 1. Column Cover - Remove
• 2. Immobilizer-Keyless Control Unit - Remove

  Courtesy of HONDA, U.S.A., INC.

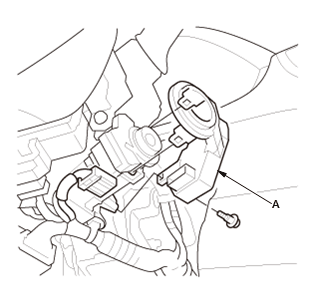

  1. Disconnect the connector

  2. Remove the immobilizer-keyless control unit (A).

• 3. All Removed Parts - Install the parts in the reverse order of removal.
• 4. IMMOBILIZER SYSTEM REGISTRATION
