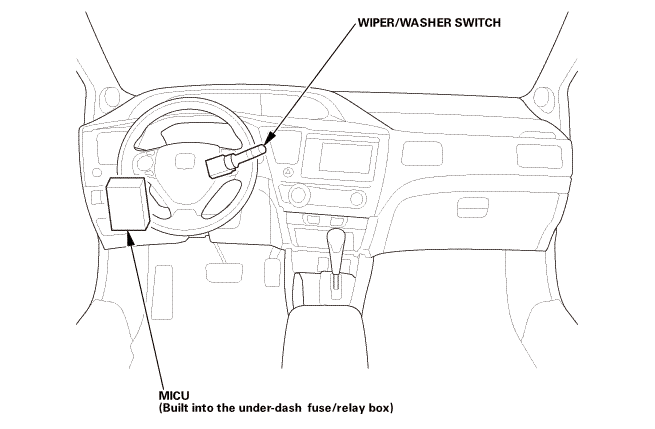

| MICU (Built into the under-dash fuse/relay box) |
Input Test |
| Removal and Installation - Refer to: Under-Dash Fuse/Relay Box Removal and Installation(KA models with Keyless Access System)Under-Dash Fuse/Relay Box Removal and Installation(KA KX models without Keyless Access System) |
| RELAY CONTROL MODULE (With keyless access system) |
Removal, Installation, and Test |

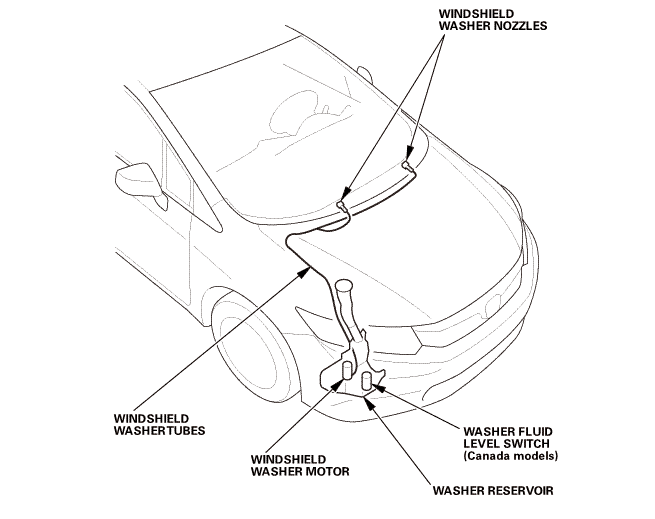

| WASHER FLUID LEVEL SWITCH (Canada models) |
Removal, Installation, and Test |
| WASHER RESERVOIR |
Removal and Installation |
| WINDSHIELD WASHER TUBE |
Removal and Installation |
| WINDSHIELD WASHER MOTOR |
Removal and Installation |
| Test |
| WINDSHIELD WASHER NOZZLE |
Adjustment - Refer to: Wiper Arm Removal and InstallationWiper Arm/Nozzle Adjustment |

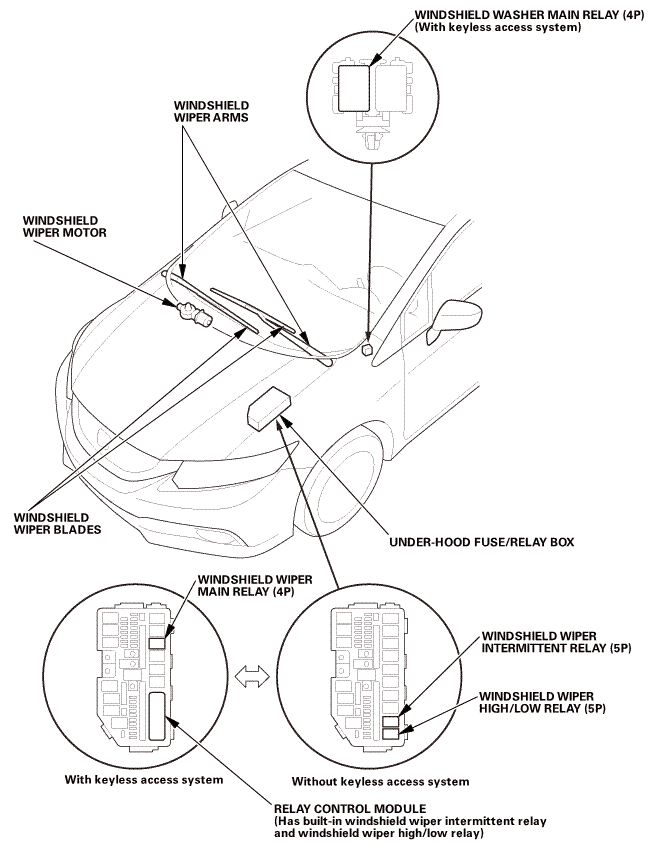

| WINDSHIELD WIPER ARM |
Removal and Installation - Refer to: Wiper Arm Removal and InstallationWiper Arm/Nozzle Adjustment |
| Adjustment - Refer to: Wiper Arm Removal and InstallationWiper Arm/Nozzle Adjustment |
| WINDSHIELD WIPER MOTOR |
Removal and Installation |
| Test |
| WINDSHIELD WIPER BLADE |
Removal and Installation |
| WINDSHIELD WIPER INTERMITTENT RELAY (5P) (Without keyless access system) |
Test - Refer to: Power Relay Test(Natural Gas) (2014 2015)Power Relay Test('14-'15: except Natural Gas models) (2014 2015) |
| WINDSHIELD WIPER HIGH/LOW RELAY (5P) (Without keyless access system) |
Test - Refer to: Power Relay Test(Natural Gas) (2014 2015)Power Relay Test('14-'15: except Natural Gas models) (2014 2015) |
| WINDSHIELD WASHER MAIN RELAY (4P) (With keyless access system) |
Test - Refer to: Power Relay Test(Natural Gas) (2014 2015)Power Relay Test('14-'15: except Natural Gas models) (2014 2015) |
| WINDSHIELD WIPER MAIN RELAY (4P) (With keyless access system) |
Test - Refer to: Power Relay Test(Natural Gas) (2014 2015)Power Relay Test('14-'15: except Natural Gas models) (2014 2015) |
| WIPER/WASHER SWITCH |
Removal, Installation, and Test |
