Electronic Throttle Control System Component Location Index (R18Z1)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

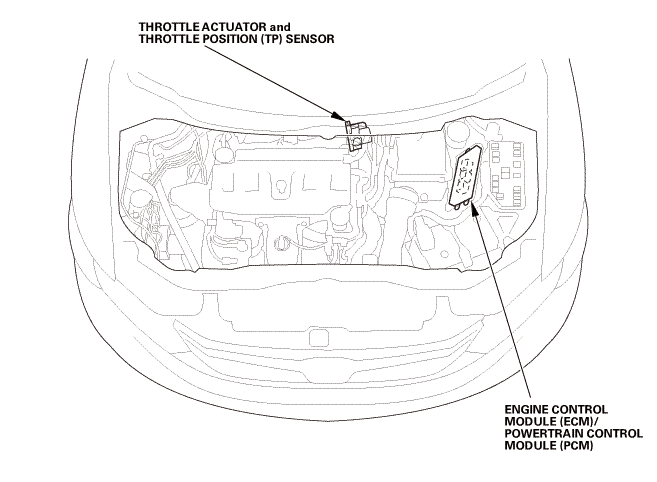

ENGINE CONTROL MODULE (ECM)/POWERTRAIN CONTROL MODULE (PCM)	Update - Refer to: ECM/PCM Update , ECM Removal and Installation (K24Z7) , ECM/PCM Removal and Installation (Except K24Z7 and R18Z1 (CVT))
	Removal and Installation - Refer to: ECM/PCM Update , ECM Removal and Installation (K24Z7) , ECM/PCM Removal and Installation (Except K24Z7 and R18Z1 (CVT))
THROTTLE ACTUATOR and THROTTLE POSITION (TP) SENSOR	Carbon Accumulation Check - Refer to: Throttle Body Carbon Accumulation Check (K24Z7) , Throttle Body Carbon Accumulation Check (Except K24Z7)
	Cleaning - Refer to: Throttle Body Removal and Installation (K24Z7) , Throttle Body Cleaning (K24Z7) , Throttle Body Disassembly and Reassembly (K24Z7) , Throttle Body Removal and Installation (R18Z1) , Throttle Body Removal and Installation (R18A9) , Throttle Body Cleaning (Except K24Z7) , Throttle Body Disassembly and Reassembly (Except K24Z7)
	Removal and Installation - Refer to: Throttle Body Removal and Installation (K24Z7) , Throttle Body Cleaning (K24Z7) , Throttle Body Disassembly and Reassembly (K24Z7) , Throttle Body Removal and Installation (R18Z1) , Throttle Body Removal and Installation (R18A9) , Throttle Body Cleaning (Except K24Z7) , Throttle Body Disassembly and Reassembly (Except K24Z7)

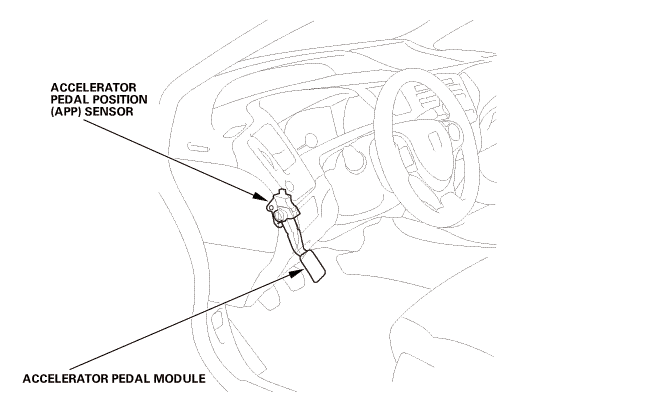

ACCELERATOR PEDAL MODULE	Removal and Installation - Refer to: Accelerator Pedal Module Removal and Installation (K24Z7) , Accelerator Pedal Module Removal and Installation (Except K24Z7)
ACCELERATOR PEDAL POSITION (APP) SENSOR	Signal Inspection - Refer to: APP Sensor Signal Inspection (K24Z7) , APP Sensor Signal Inspection (Except K24Z7)
