Resetting the Power Window Control Unit: Procedure

Reset the power window control unit after doing any of the following actions:

• Power window regulator replacement, removal, or installation.
• Power window motor replacement, removal, or installation.
• Glass run channel replacement, removal, or installation.
• Door glass replacement, removal, or installation.
• Power window master switch replacement.
• Power is disconnected from the driver's power window master switch while the power window timer is ON.

Without HDS

1. Power Window Control Unit - Reset

   2. Move the power window all the way down with the driver's window DOWN switch

   3. Open the driver's door.

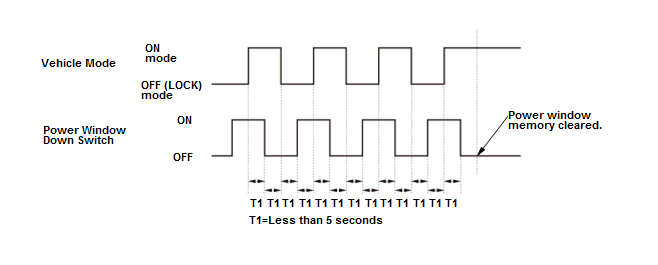

   NOTE:  Steps 4 -7 must be done within 5 seconds of each other

   4. Turn the vehicle to the OFF (LOCK) mode.

   Courtesy of HONDA, U.S.A., INC.

   5. Press and hold the power window DOWN switch

   6. Turn the vehicle to the ON mode

   7. Release the power window DOWN switch

   8. Repeat steps 4 -7 three more times

   9. Wait at least 1 second

   10. Confirm that AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go back to step 1

   11. Move the power window all the way down with the power window DOWN switch

   12. Pull up and hold the power window UP switch until the window reaches the fully closed position, then continue to hold the switch for at least 1 second.

   1. 13.Confirm that the power window control unit is reset by using the driver's window AUTO UP and AUTO DOWN functions:
      • If the window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 seconds time limit between steps.
      • If the window still does not work, refer to the power window master switch input test .

   With HDS

2. Power Window Control Unit - Reset

   1. Connect the HDS to the data link connector (DLC) 2. Turn the vehicle to the ON mode, then enter the vehicle's VIN and mileage at the prompts 3. Select BODY ELECTRICAL from the SYSTEM SELECTION MENU 4. From the BODY ELECTRICAL SYSTEM SELECT menu, select POWER WINDOWS 5. From the MODE MENU, select ADJUSTMENT 6. From the ADJUSTMENT MENU, select POWER WINDOW RESET FOR DRIVER SIDE 7. Follow the prompts on the screen 8. Confirm that the power window control unit is reset by using the power window AUTO UP and AUTO DOWN function.
