Audio Display-USB Adapter Control Unit Removal/Installation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard.
  1. Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION  ) and the center upper panel (see CENTER UPPER PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws, then pull out the audio display-USB adapter control unit (A).

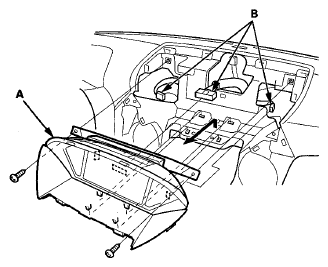

    Fig 1: Identifying Audio Display-USB Adapter Control Unit With Connectors
    G08090945Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (B), and remove the audio display-USB adapter control unit.
  4. Separate the audio display-USB adapter control unit (A) and the tray (B).
    Fig 2: Identifying Audio Display-USB Adapter Control Unit And Tray
    G08090946Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the audio display-USB adapter control unit in the reverse order of removal.
