Rear Controller and Screen Connector for Inputs and Outputs: Notes

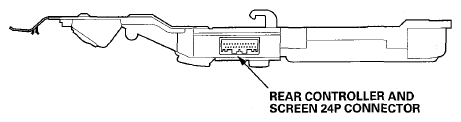

Fig 1: Identifying Rear Controller And Screen 24P Connector
G08090990Courtesy of AMERICAN HONDA MOTOR CO., INC.
