Rear Controller And Screen 24P Connector

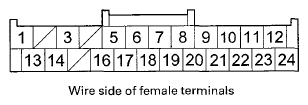

Fig 1: Identifying Rear Controller And Screen 24P Connector Terminals Identification
G08090991Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire Color Terminal Name Description
1 WHT +B Continuous power source
3 BLK GA-NET RR BUS+ Communication signal to audio unit
5 BRN RR NTSC GND Ground for video signal
6 RED HP R/L GND Ground for sound signal
7 GRY(1) HP R/L SH Shield for terminals No. 6, No. 18, and No. 19
8 RED HP R/L OUT GND Ground for sound signal
9 GRY(1) HP R/L OUT SH Shield for terminals No. 8, No. 20, and No. 21
10 LT GRN SCTY Security signal from MICU
11 LT BLU ILL+ Detects parking light on signal
12 YEL SYS ACC Detects rear controller and screen switching ON/OFF
13 GRY(1) GA-NET RR BUS SH Shield for terminals No. 3, and No. 14
14 WHT GA-NET RR BUS- Communication signal to audio unit
16 YEL RR NTSC Inputs video signal from audio-navigation unit
17 GRY(1) RR NTSC SH Shield for terminals No. 5, and No. 16
18 WHT HP L Inputs sound signal from audio-navigation unit
19 BLK HP R Inputs sound signal from audio-navigation unit
20 BLK HP L OUT Outputs sound signal to RES auxiliary jack assembly
21 WHT HP R OUT Outputs sound signal to RES auxiliary jack assembly
22 RED SCTY Security signal to audio-navigation unit
23 YEL ILL- Detects illumination control signal
24 BLK GND Ground for rear controller and screen (G404)
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
