Left Power Mirror Function Test
- Remove the power window master switch (see
REAR POWER WINDOW SWITCH TEST/REPLACEMENT
).
- Disconnect the 13P connector from the power mirror switch and 37P connector from the power window master switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Turn the ignition switch to ON (II).
- Measure the voltage between body ground and power mirror switch 13P connector terminal No. 2 with the ignition switch ON (II). There should be battery voltage.
- If there is no battery voltage, check for:
- Blown No. 36 (10 A) fuse in the under-dash fuse/relay box.
- An open in the YEL wire.
- If there is battery voltage, go to step 5.
- Check for continuity between terminal No. 6 and body ground. There should be continuity.
- If there is no continuity, check for:
- An open in the BLK wire.
- Poor ground (G401).
- If there is continuity, go to step 6.

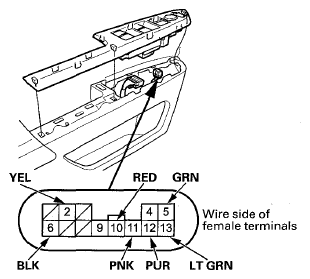

- Connect terminals No. 2 and No. 10, and terminals No. 5 (or No. 12) and No. 6 with jumper wires. The left mirror should tilt down (or swing left) with the ignition switch ON (II).
- If the left mirror does not tilt down (or does not swing left), check for an open in the GRN (or PUR) wire between the left power mirror and the 13P connector. If the wire is OK, check the left mirror actuator.
- If the mirror neither tilts down nor swings left, repair the RED wire.
- If the mirror works properly, check the power mirror switch (see POWER MIRROR SWITCH TEST/REPLACEMENT
).
