System Diagnostic Mode: Version

This diagnosis displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if requested by the factory, or instructed by a service bulletin. Software may be loaded from a DVD or a USB device.

• Flash: Displays the version of the navigation software in memory.
• HDD: Displays the version of the navigation software in the navigation HDD.
• USB: If displayed, this value represents the version of the USB software in the USB device.
• Disc: If displayed, this value represents the version of the navigation software on the navigation DVD.
• DSP: Displays the version of the DSP firmware.
• IPL, APL, DBOOT, HDD, and APP, are all for factory use.
• Model: For this model, the field should begin with SZA.

If you need to download a software into the audio-navigation unit, do this:

1. Insert the DVD or connect the USB device in which the software is installed.
2. Select DownLoad in the Version menu.

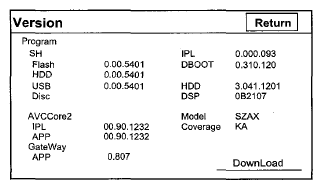

   Fig 1: Version Data Screen

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. If you are loading older software into the audio-navigation unit's memory, a confirmation screen appears warning you that the version being uploaded is older than the currently loaded software.

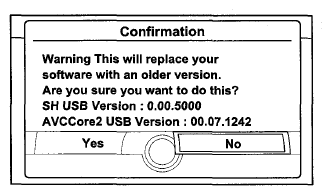

   Fig 2: Version Confirmation Screen

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Select YES on the confirmation screen. The navigation system reboots.
5. Check that the navigation display shows the map properly.
