Circuit Diagram

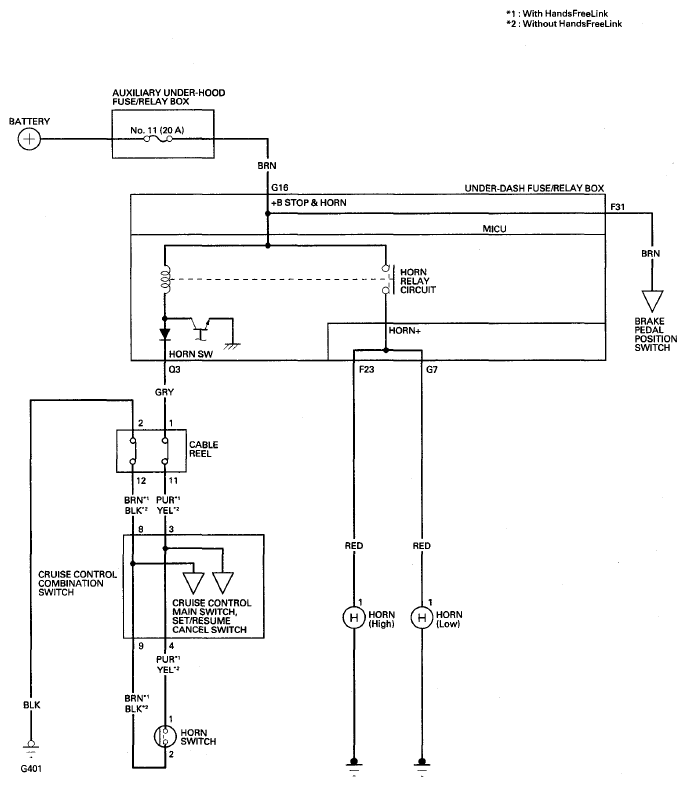

Fig 1: Horn - Circuit Diagram

G08088900

Courtesy of AMERICAN HONDA MOTOR CO., INC.
