Detailed Information & Settings

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

These section allows you to run a specific diagnostic and allows additional setting choices for some screens that are not shown when selecting an icon from the System Links screen.

When you select the Detail Information & Setting menu, the main diagnosis menu is displayed.

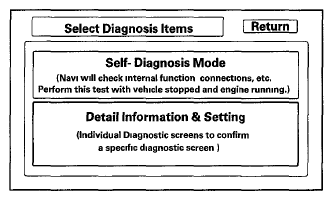

Fig 1: Identifying Screen Display - Self-Diagnosis Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.

After the display changes to the Diagnostic Menu, select the item you want to check, and the test begins. To return to the previous screen, select Return.

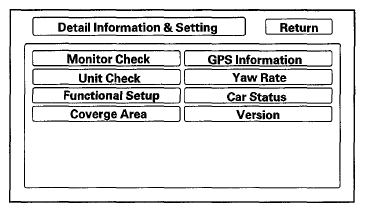

Fig 2: Identifying Screen Display - Detailed Information & Settings

Courtesy of AMERICAN HONDA MOTOR CO., INC.
