Audio and Visual System Circuit Diagram(Without Navigation, With Display Audio)

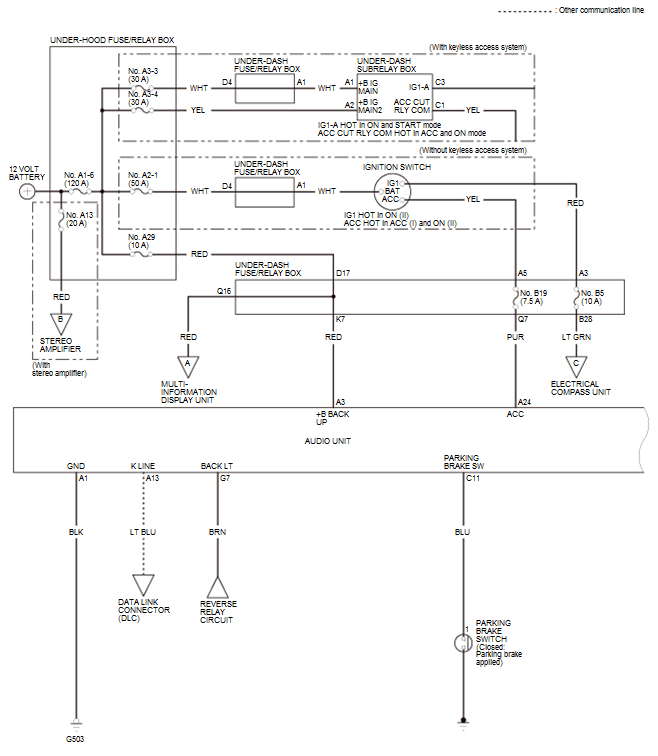

GHH47410

Courtesy of HONDA, U.S.A., INC.

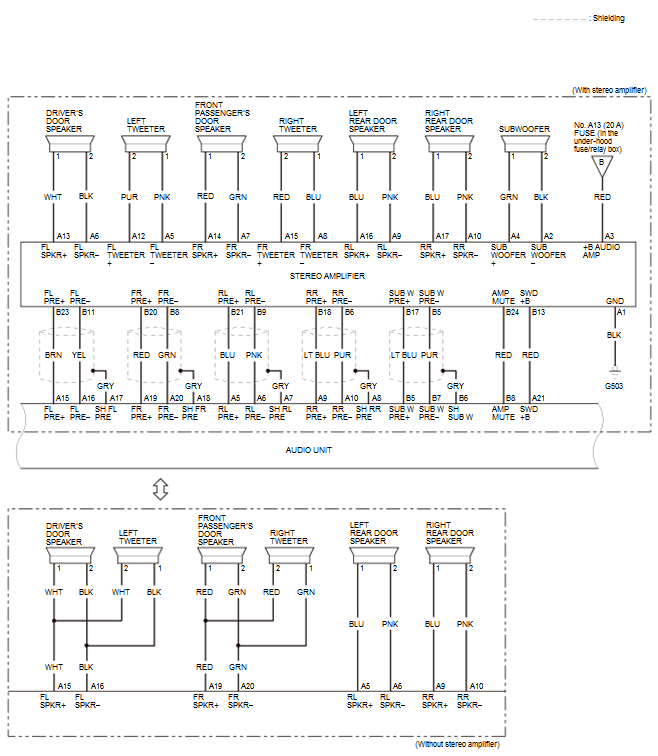

GHH47411

Courtesy of HONDA, U.S.A., INC.

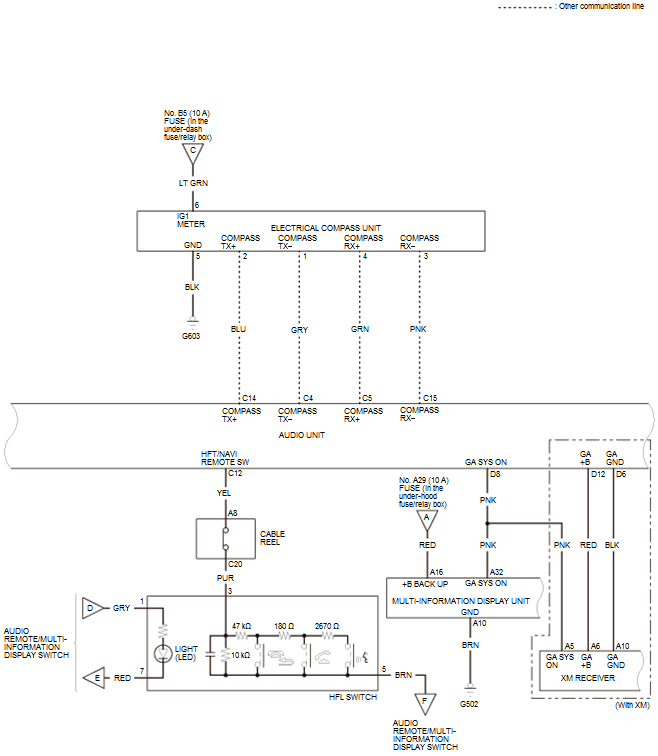

GHH47412

Courtesy of HONDA, U.S.A., INC.

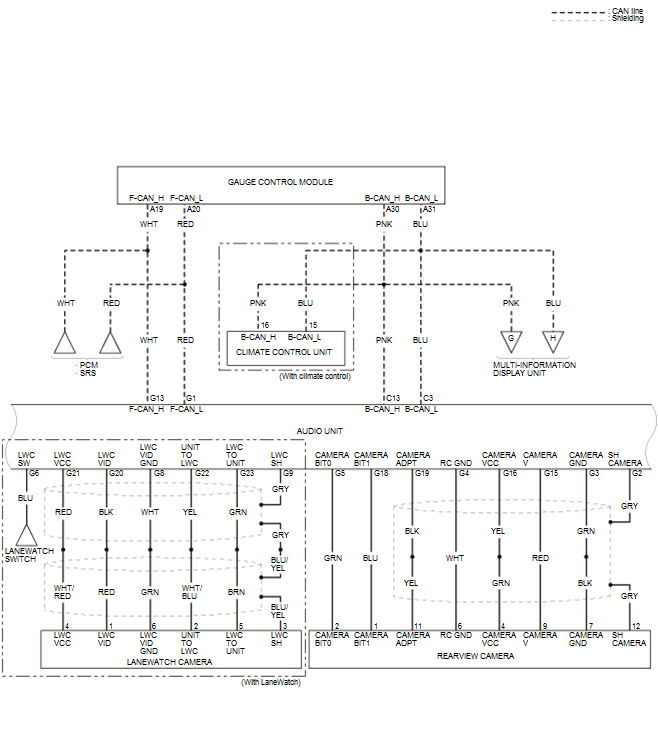

GHH47413

Courtesy of HONDA, U.S.A., INC.

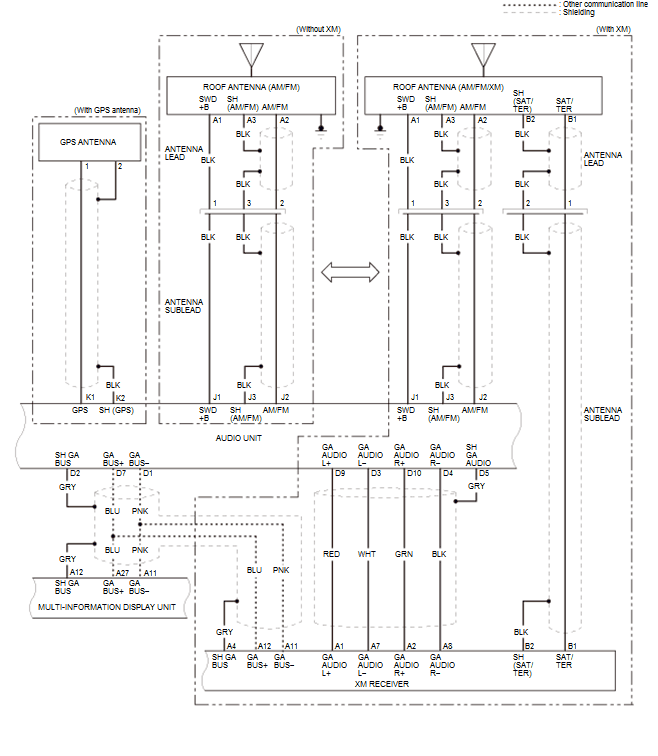

GHH47414

Courtesy of HONDA, U.S.A., INC.

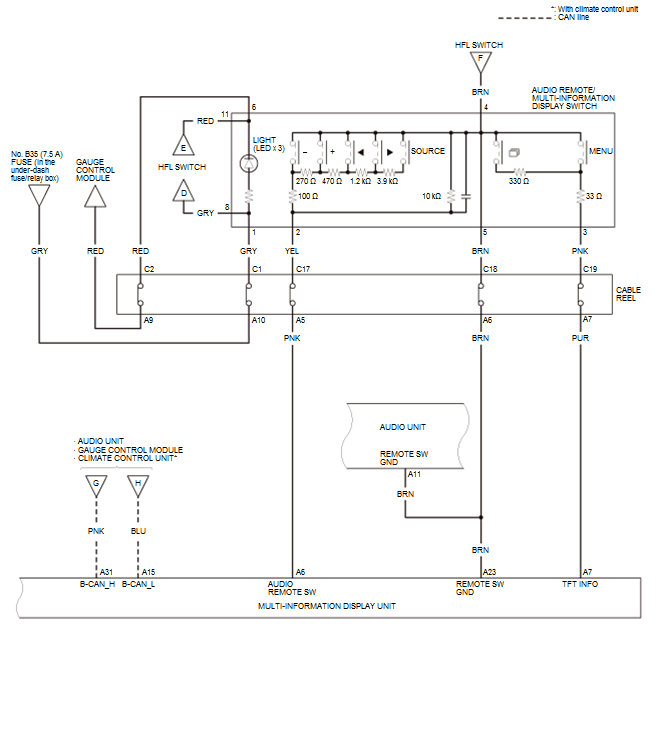

GHH47415

Courtesy of HONDA, U.S.A., INC.

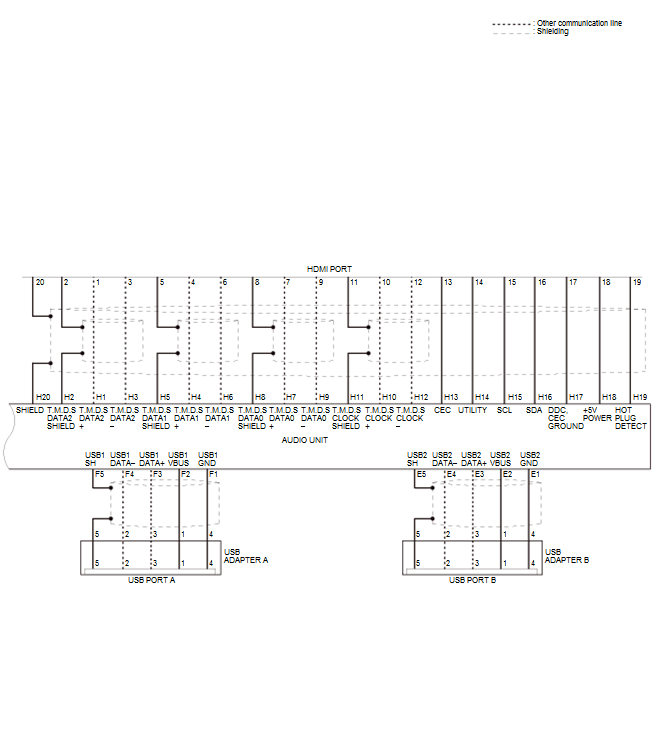

GHH47416

Courtesy of HONDA, U.S.A., INC.
