Guideline Setup

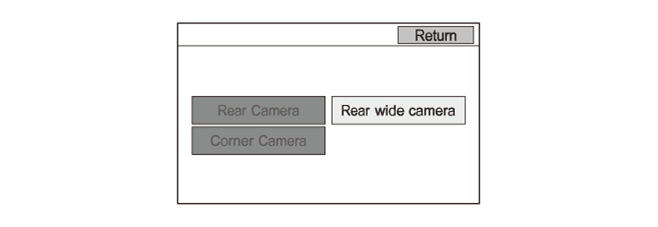

These screens adjusts the rearview camera image guide lines. Select the Rear Wide Camera icon to adjust the guide lines.

Courtesy of HONDA, U.S.A., INC.

Rear Wide Camera

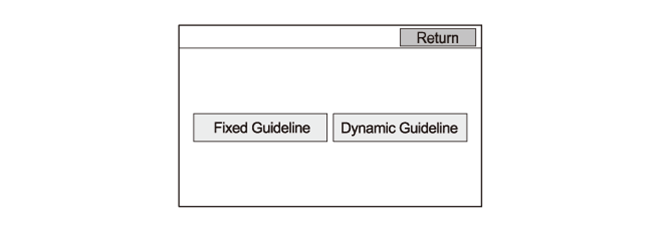

Select the item you want to adjust.

Courtesy of HONDA, U.S.A., INC.

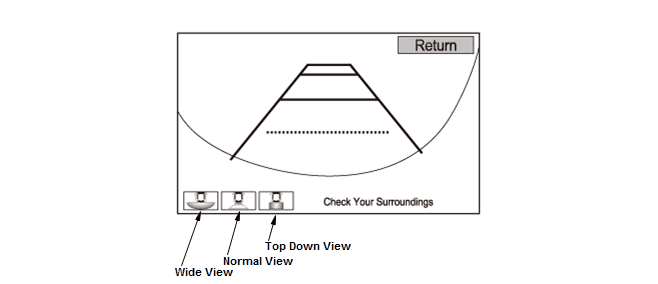

Select the view mode icons (Wide View, Normal View, Top Down View) you want to adjust.

NOTE: The Top Down View cannot be selected when the dynamic guideline is selected.

Courtesy of HONDA, U.S.A., INC.

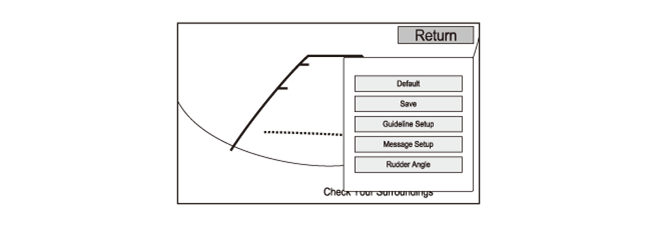

Press the MENU button to display the sub menu.

Default: All guidelines can be reset to the factory specification.
Save: Reflects the result of the guideline adjustment.
Guideline Setup: Adjust the guideline.
Message Setup: Adjust the caution message position.
Rudder Angle: The steering angle which adjusts the position of the chosen guideline.

Courtesy of HONDA, U.S.A., INC.

Guideline Setup

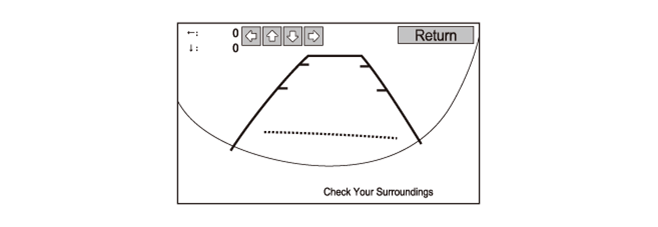

Touch each arrow icon to move the guidelines up/down or left/right. The screen displays the information about the adjusted distance and its direction.

Courtesy of HONDA, U.S.A., INC.

Message Setup

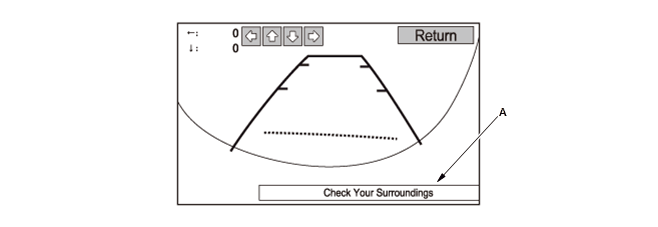

Touch each arrow icon to move the message (A) up/down or left/right.

Courtesy of HONDA, U.S.A., INC.

Rudder Angle

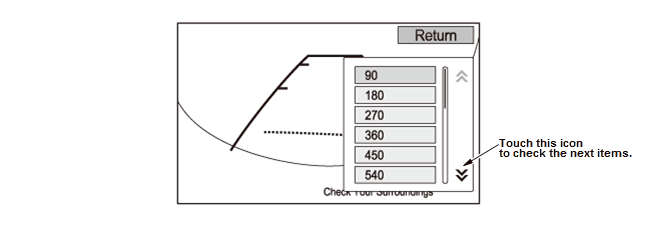

Select different steering angles (90° - Lock end) from the sub menu. After selecting, do the Guideline Adjustment. The adjustment method for the guideline locations is the same as the Fixed Guideline.

Courtesy of HONDA, U.S.A., INC.
