Speaker Check Mode

NOTE:

1. Turn the vehicle to the ON mode

2. Make sure the audio unit is turned off

3. Use the DISPLAY button on the steering wheel to select the screen that displays Audio Off

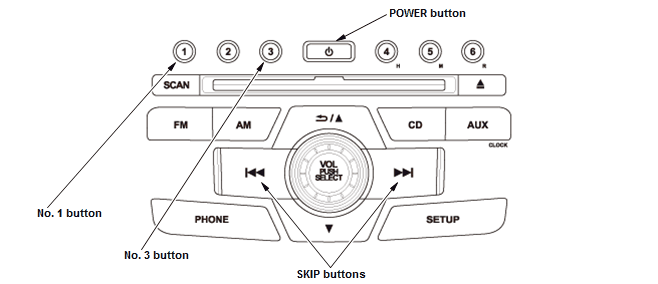

4. Press and hold the preset No. 1 and No. 3 buttons

5. While holding the buttons, push the POWER button

6. Release the buttons, and the speaker check mode begins.

Courtesy of HONDA, U.S.A., INC.

Display Specifications

When you press the SKIP (Right) button, the system checks the speakers in this order:	1 2 3 4 5
When you press the SKIP (Left) button, the system checks the speakers in this order:	1 5 4 3 2

	Display Message	Vehicle Test Condition
1	A-Diag SPK FR-L	You should hear a tone from the driver's door speaker
2	A-Diag SPK FR-R	You should hear a tone from the front passenger's door speaker
3	A-Diag SPK RR-R	You should hear a tone from the right rear door speaker.
4	A-Diag SPK RR-L	You should hear a tone from the left rear door speaker.
5	A-Diag SPK ALL	You should hear a tone from the all speakers.

7. To end the speaker check mode, turn the audio system off, or turn the vehicle to the OFF mode.
