Power Windows - Testing & Troubleshooting
>>
Description
>>
Power Windows System Description - System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Windows System Description - System Diagram

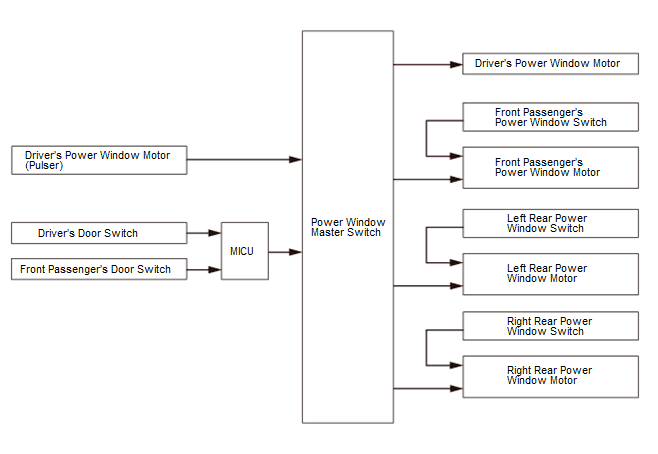

Without Door Multiplex Control Unit
Courtesy of HONDA, U.S.A., INC.

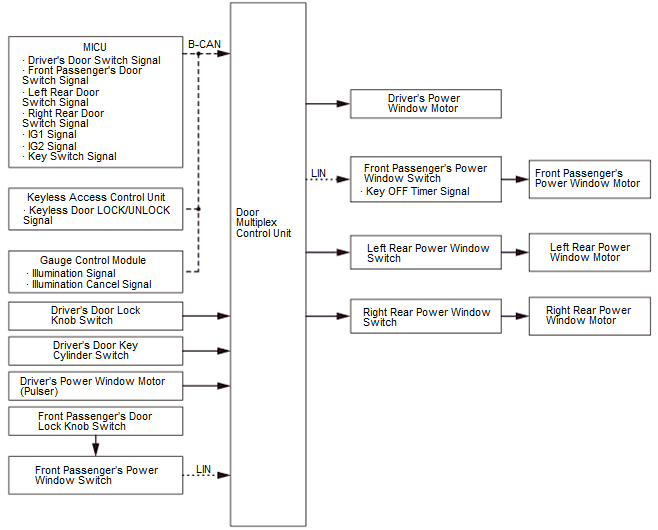

With Door Multiplex Control Unit
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
