Engine Start/Stop Switch Test: Test

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

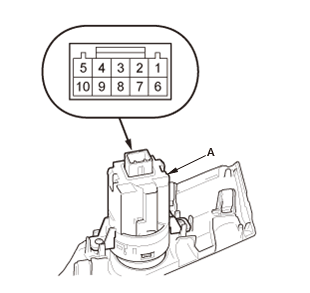

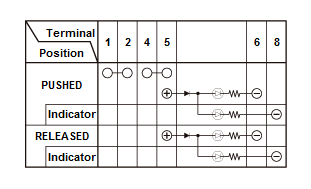

1. Check the engine start/stop switch (A) according to the table.

NOTE:

• When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
• Make sure the correct test lead (+ or -) is placed on the terminal.
• When checking for continuity across the diode, use the diode setting.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the engine start/stop switch .
