Door Lock Actuator Test: Test

Front Door

• 1. Front Door Panel - Remove
• 2. Door Lock Actuator - Test

  Courtesy of HONDA, U.S.A., INC.

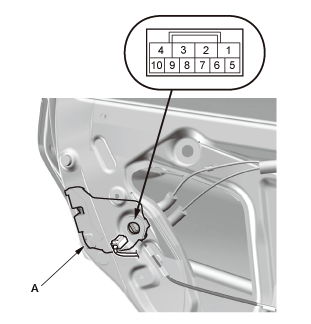

  Driver's and Front Passenger's Door

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector.

  2. Check the actuator operation by connecting 12 volt battery power and ground according to the table.

  NOTE:  To prevent damage to the actuator, apply 12 volt battery power only momentarily.

  3. If the actuator does not operate as specified, the front door lock actuator is faulty; replace the front door latch (A) .

• 3. All Removed Parts - Install the parts in the reverse order of removal.

  Rear Door

• 1. Rear Door Panel - Remove
• 2. Door Lock Actuator - Test

  Courtesy of HONDA, U.S.A., INC.

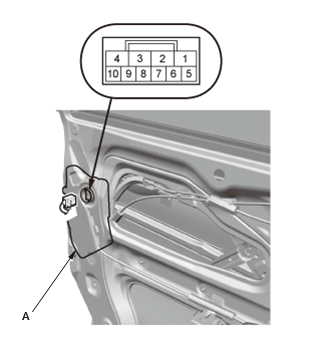

  Right and Left Rear Door

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector.

  2. Check the actuator operation by connecting 12 volt battery power and ground according to the table.

  NOTE:  To prevent damage to the actuator, apply 12 volt battery power only momentarily.

  3. If the actuator does not operate as specified, the rear door lock actuator is faulty; replace the rear door latch (A) .

• 3. All Removed Parts - Install the parts in the reverse order of removal.
