PCM Removal & Installation: Installation

NOTE:

• If you are removing the PCM, skip the procedures of using the HDS.
• If you are substituting the PCM, skip the procedures of WRITE DATA (Engine Oil Life).

• 1. PCM - Install

  Courtesy of HONDA, U.S.A., INC.

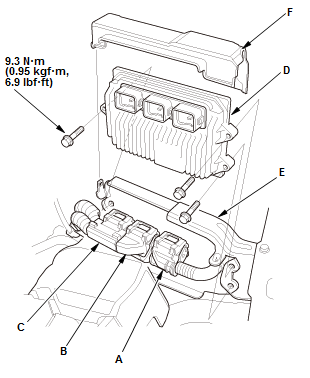

  1. Install the PCM (D) onto the PCM bracket (E)

  2. Connect PCM connectors A, B, and C

  3. Install the PCM cover (F).

• 2. SCS - Open

  1. Exit the SCS Mode with the HDS.

  Procedure After Replacing PCM

• 3. VIN - Input

  1. Turn the vehicle to the ON mode.

  NOTE:  DTC P0630 VIN Not Programmed or Mismatch may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure

  2. Manually input the VIN to the PCM with the HDS.

• 4. WRITE DATA (Engine Oil Life) - Select (USA and Canada models)

  NOTE:  If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", skip this procedure.

  1. Select the REPLACE PCM MENU, then select WRITE DATA, and follow the screen prompts.

• 5. Other Procedures for PCM Replacement - Do (USA and Canada models)

  1. If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", replace the engine oil and the engine oil filter .

• 6. IMMOBI SYSTEM - Registration

  1. Without keyless access system: Do the immobilizer-keyless control unit registration procedure . With keyless access system: Do the keyless access system registration procedure .

• 7. DTC - Clear

  1. Clear the Pending or Confirmed DTCs with the HDS.

• 8. PCM - Update
• 9. PCM - Idle Learn
• 10.CKP Pattern - Clear/Learn
