Keyless Access System Description - Overview

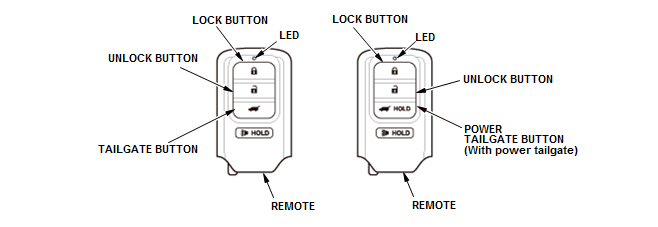

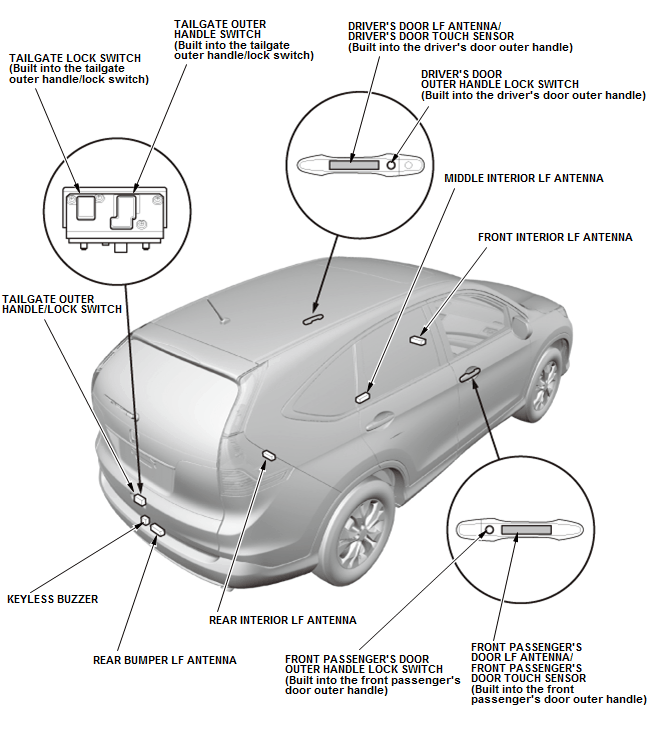

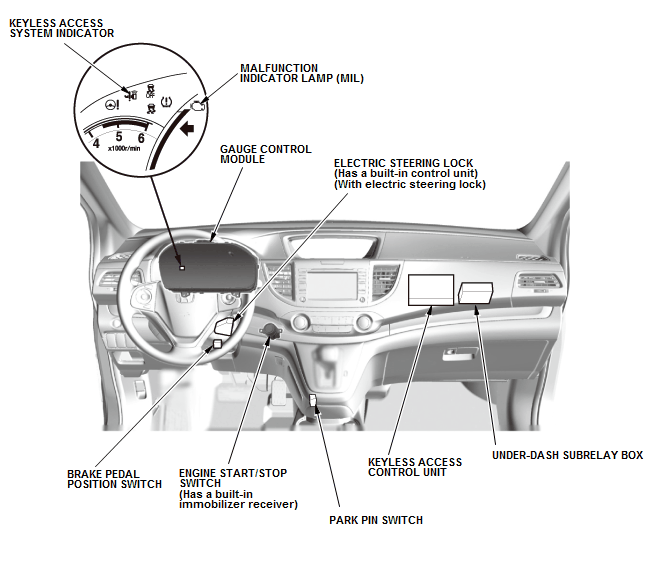

The keyless access system enables you to lock/unlock the doors and the tailgate remotely. The keyless access system uses the LF-RF communication system. It sends the LF signal via the LF antenna, and the keyless access control unit receives the RF signal from the remote.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
