Door Key Cylinder Switch Test: Test

NOTE:  If the power control unit is replaced, do the keyless access registration. If the original power control unit is installed, confirm that all systems work properly.

• 1. Front Door Panel - Remove
• 2. Door Key Cylinder Switch - Test

  Courtesy of HONDA, U.S.A., INC.

  Courtesy of HONDA, U.S.A., INC.

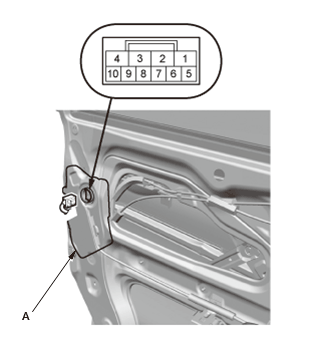

  1. Disconnect the connector.

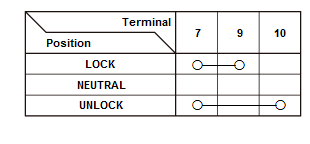

  2. Check for continuity between the terminals in each switch position according to the table.

  3. If the continuity is not as specified, the door key cylinder switch is faulty; replace the front door latch (A) .

• 3. All Removed Parts - Install the parts in the reverse order of removal.
