Test Procedure

1. Driver's Door Panel - Remove
2. Driving Position Memory Switch - Test

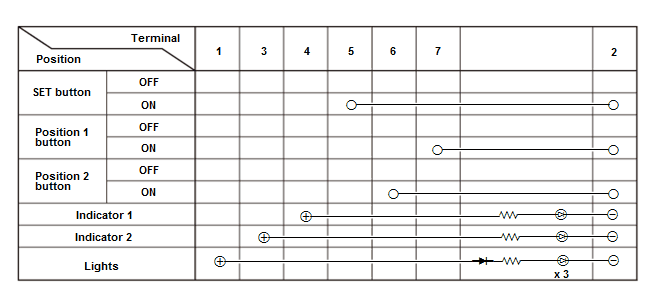

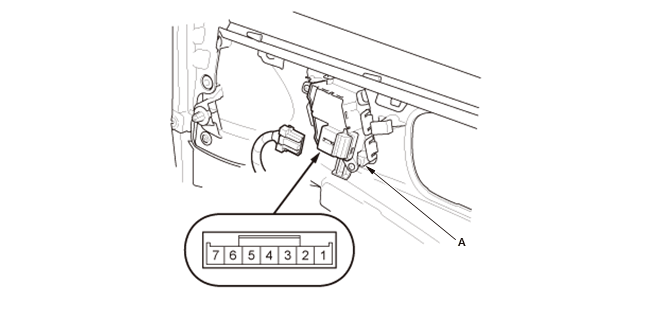

1. Check the driving position memory switch (A) according to the table.

NOTE:
- When an LED is located between terminals, check if the LED lights by connecting 12 volt battery power and ground to the LED.
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting on the digital volt/ohm meter to check the diode bias.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the driving position memory switch .
3. All Removed Parts - Install - Install the parts in the reverse order of removal.
