Save User's Memory

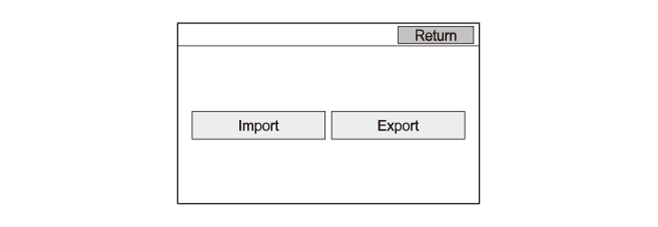

When replacing the audio unit, this function allows the technician to transfer the customer's personal data to the new audio unit. The transferred information includes their setup settings and personal addresses. The dealer inserts a USB device into the USB port, and then selects the Save User's Memory function. The two functions in this diagnostic screen are Export and Import. Export saves the customer's data to the USB device, and Import moves the USB device files to the new audio unit.

This function does not start until you connect a USB device to the USB port.

Courtesy of HONDA, U.S.A., INC.

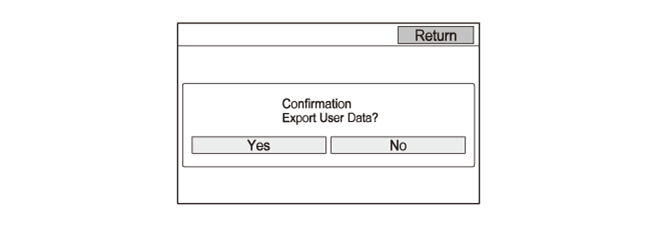

1. Select Export icon to move the customer's data from the original audio unit to the USB device. Select Yes icon on the Export User Data Confirmation screen. The process takes only a couple of seconds. The system stores.DAT files on the USB device.

NOTE: If the Export icon is grayed out, check the USB port.

Courtesy of HONDA, U.S.A., INC.

2. After replacing the new audio unit, allow the system to boot up. Insert the USB device into the USB port and enter the Save User's Memory in the System Diagnostic Mode

3. Select the Import icon to move the two files stored by the Export process from the USB device to the new audio unit. Select the Yes icon on the Import User Data Confirmation screen. When the transfer is finished (a few seconds) the system automatically reboots. After the system reboots, remove the USB device from the USB port.

NOTE: If the Import icon is grayed out, check if the Model and the Program Version shown on the DA Unit and Version screens are the same.

Courtesy of HONDA, U.S.A., INC.
