Keyless/Power Door Locks/Security System Symptom Troubleshooting - AUTO DOOR UNLOCK does not work

NOTE:

• Refer to the Electrical Wiring Diagrams for the location of the under-dash fuse/relay box connectors.
• Before testing, check the No. B8 (15 A), No. B9 (15 A), No. B15 (10 A), No. B30 (10 A), No. B32 (15 A), No. B33 (15 A), and No. B41 (20 A) fuses in the under-dash fuse/relay box.
• There are two pairs of fuses in the same circuit (No. B8 and No. B32 fuses, No. B9 and No. B33 fuses, No. B15 and No. B30 fuses). If one fuse is blown, make sure to check the other fuse in the same circuit. If necessary, replace the blown fuse(s).

• 1. Abnormal circuit check 1:

  - 1. Connect the HDS to the data link connector (DLC) .

  - 2. Select DOOR LOCKS from the BODY ELECTRICAL SYSTEM SELECT menu with the HDS, and enter FUNCTION TESTS.

  BODY ELECTRICAL - Door Locks - Functional Tests

  - 3. Select UNLOCK ALL DOORS with the HDS.

  Do the door lock actuators work normally?

  YES

  Go to step 22.

  NO

  Driver's door lock circuit: go to step 2.

  NO

  Front passenger's door lock circuit: go to step 7.

  NO

  Left rear door lock circuit: go to step 12.

  NO

  Right rear door lock circuit: go to step 17.

• 2. Open wire check (+B F/BOX MAIN line):

  - 1. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  Test point 1	Under-dash fuse/relay box connector D (32P) No. 2
  Test point 2	Body ground

  Is there battery voltage?

  YES

  The +B F/BOX MAIN wire is OK. Go to step 3.

  NO

  Repair an open or high resistance in the wire.

• 3. Open wire check (GND line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector R (8P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected
  Test point 1	Under-dash fuse/relay box connector R (8P) No. 7
  Test point 2	Body ground

  Is there continuity?

  YES

  The GND wire is OK. Go to step 4.

  NO

  Repair an open or high resistance in the ground wire or poor ground (G501).

• 4. Determine possible failure area (door latch, others):

  - 1. Disconnect the following connector.

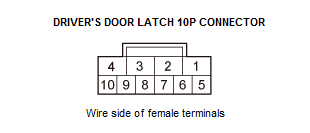

  Driver's door latch 10P connector

  - 2. Test the door lock actuator .

  Is the door lock actuator OK?

  YES

  Go to step 5.

  NO

  Faulty door lock actuator; replace the driver's door latch .

• 5. Open wire check (DR DOOR UNLOCK line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector N (13P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Driver's door latch 10P connector: disconnected Under-dash fuse/relay box connector N (13P): disconnected
  Test point 1	Under-dash fuse/relay box connector N (13P) No. 12
  Test point 2	Driver's door latch 10P connector No. 1

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The DR DOOR UNLOCK wire is OK. Go to step 6.

  NO

  Repair an open or high resistance in the wire.

• 6. Open wire check (DR DOOR LOCK line):

  - 1. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Driver's door latch 10P connector: disconnected Under-dash fuse/relay box connector N (13P): disconnected
  Test point 1	Under-dash fuse/relay box connector N (13P) No. 10
  Test point 2	Driver's door latch 10P connector No. 4

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The DR DOOR LOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

  NO

  Repair an open or high resistance in the wire.

• 7. Open wire check (+B F/BOX MAIN line):

  - 1. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  Test point 1	Under-dash fuse/relay box connector D (32P) No. 2
  Test point 2	Body ground

  Is there battery voltage?

  YES

  The +B F/BOX MAIN wire is OK. Go to step 8.

  NO

  Repair an open or high resistance in the wire.

• 8. Open wire check (GND line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector R (8P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected
  Test point 1	Under-dash fuse/relay box connector R (8P) No. 7
  Test point 2	Body ground

  Is there continuity?

  YES

  The GND wire is OK. Go to step 9.

  NO

  Repair an open or high resistance in the ground wire or poor ground (G501).

• 9. Determine possible failure area (door latch, others):

  - 1. Disconnect the following connector.

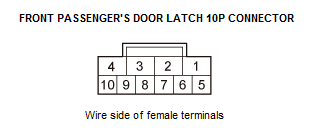

  Front passenger's door latch 10P connector

  - 2. Test the door lock actuator .

  Is the door lock actuator OK?

  YES

  Go to step 10.

  NO

  Faulty door lock actuator; replace the door latch .

• 10. Open wire check (AS SIDE D/L UNLOCK line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector S (10P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Front passenger's door latch 10P connector: disconnected Under-dash fuse/relay box connector S (10P): disconnected
  Test point 1	Under-dash fuse/relay box connector S (10P) No. 1

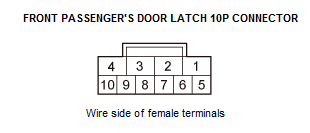

  Test point 2	Front passenger's door latch 10P connector No. 1

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The AS SIDE D/L UNLOCK wire is OK. Go to step 11.

  NO

  Repair an open or high resistance in the wire.

• 11. Open wire check (AS SIDE D/L LOCK line):

  - 1. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Front passenger's door latch 10P connector: disconnected Under-dash fuse/relay box connector S (10P): disconnected
  Test point 1	Under-dash fuse/relay box connector S (10P) No. 3
  Test point 2	Front passenger's door latch 10P connector No. 4

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The AS SIDE D/L LOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

  NO

  Repair an open or high resistance in the wire.

• 12. Open wire check (+B F/BOX MAIN line):

  - 1. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  Test point 1	Under-dash fuse/relay box connector D (32P) No. 2
  Test point 2	Body ground

  Is there battery voltage?

  YES

  The +B F/BOX MAIN wire is OK. Go to step 13.

  NO

  Repair an open or high resistance in the wire.

• 13. Open wire check (GND line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector R (8P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected
  Test point 1	Under-dash fuse/relay box connector R (8P) No. 7
  Test point 2	Body ground

  Is there continuity?

  YES

  The GND wire is OK. Go to step 14.

  NO

  Repair an open or high resistance in the ground wire or poor ground (G501).

• 14. Determine possible failure area (door latch, others):

  - 1. Disconnect the following connector.

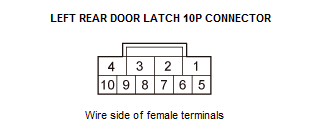

  Left rear door latch 10P connector

  - 2. Test the door lock actuator .

  Is the door lock actuator OK?

  YES

  Go to step 15.

  NO

  Faulty door lock actuator; replace the door latch .

• 15. Open wire check (DR SIDE D/L UNLOCK line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector B (44P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Left rear door latch 10P connector: disconnected Under-dash fuse/relay box connector B (44P): disconnected
  Test point 1	Under-dash fuse/relay box connector B (44P) No. 11

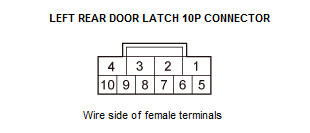

  Test point 2	Left rear door latch 10P connector No. 1

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The DR SIDE D/L UNLOCK wire is OK. Go to step 16.

  NO

  Repair an open or high resistance in the wire.

• 16. Open wire check (DR SIDE D/L LOCK line):

  - 1. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Left rear door latch 10P connector: disconnected Under-dash fuse/relay box connector B (44P): disconnected
  Test point 1	Under-dash fuse/relay box connector B (44P) No. 16
  Test point 2	Left rear door latch 10P connector No. 4

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The DR SIDE D/L LOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

  NO

  Repair an open or high resistance in the wire.

• 17. Open wire check (+B F/BOX MAIN line):

  - 1. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  Test point 1	Under-dash fuse/relay box connector D (32P) No. 2
  Test point 2	Body ground

  Is there battery voltage?

  YES

  The +B F/BOX MAIN wire is OK. Go to step 18.

  NO

  Repair an open or high resistance in the wire.

• 18. Open wire check (GND line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector R (8P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected
  Test point 1	Under-dash fuse/relay box connector R (8P) No. 7
  Test point 2	Body ground

  Is there continuity?

  YES

  The GND wire is OK. Go to step 19.

  NO

  Repair an open or high resistance in the ground wire or poor ground (G501).

• 19. Determine possible failure area (door latch, others):

  - 1. Disconnect the following connector.

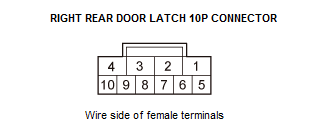

  Right rear door latch 10P connector

  - 2. Test the door lock actuator .

  Is the door lock actuator OK?

  YES

  Go to step 20.

  NO

  Faulty door lock actuator; replace the door latch .

• 20. Open wire check (AS SIDE D/L UNLOCK line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector B (44P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Right rear door latch 10P connector: disconnected Under-dash fuse/relay box connector B (44P): disconnected
  Test point 1	Under-dash fuse/relay box connector B (44P) No. 9

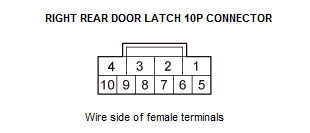

  Test point 2	Right rear door latch 10P connector No. 1

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The AS SIDE D/L UNLOCK wire is OK. Go to step 21.

  NO

  Repair an open or high resistance in the wire.

• 21. Open wire check (AS SIDE D/L LOCK line):

  - 1. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Under-dash fuse/relay box connector R (8P): disconnected Right rear door latch 10P connector: disconnected Under-dash fuse/relay box connector B (44 P): disconnected
  Test point 1	Under-dash fuse/relay box connector B (44P) No. 18
  Test point 2	Right rear door latch 10P connector No. 4

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The AS SIDE D/L LOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

  NO

  Repair an open or high resistance in the wire.

• 22. Abnormal circuit check 2:

  - 1. Check the parameter(s) below with the HDS when each switch is operating.

  MICU

  Signal	Current conditions
  	Value	Unit
  A/T Gear Position Switch (P)
  Driver's Door Lock Knob Switch(UNLOCK)*1
  Front Passenger's Door Lock Knob Sw.(UNLOCK)*1
  Driver's Rear Door Lock Knob Switch(UNLOCK)
  Passenger's Rear Door Lock Knob Sw. (UNLOCK)

  Door Multiplex Control Unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch (UNLOCK)*2
  Passenger's Door Lock Knob Switch (UNLOCK)*2

  *1: Without door multiplex control unit

  *2: With door multiplex control unit

  Is each switch information OK?

  YES

  Faulty MICU; replace the under-dash fuse/relay box .

  NO

  Transmission range switch P position circuit troubleshooting: go to step 23.

  NO

  Driver's door lock knob switch circuit troubleshooting: go to step 29.

  NO

  Front passenger's door lock knob switch circuit troubleshooting: go to step 35.

  NO

  Left rear door lock knob switch circuit troubleshooting: go to step 41.

  NO

  Right rear door lock knob switch circuit troubleshooting: go to step 47.

• 23. Keyless/power door locks/security system check 1:

  - 1. With the transmission range switch in P position, check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  A/T Gear Position Switch (P)

  Is information indicator ON?

  YES

  Go to step 24.

  NO

  Go to step 26.

• 24. Determine possible failure area (transmission range switch, others):

  - 1. Disconnect the following connector.

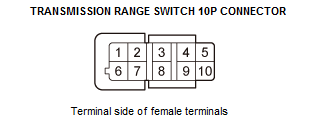

  Transmission range switch 10P connector

  - 2. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  A/T Gear Position Switch (P)

  Is information indicator OFF?

  YES

  Replace the transmission range switch .

  NO

  Go to step 25.

• 25. Shorted wire check (ATP-P line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector D (32P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Transmission range switch 10P connector: disconnected Under-dash fuse/relay box connector D (32P): disconnected
  Test point 1	Under-dash fuse/relay box connector D (32P) No. 22
  Test point 2	Body ground

  Is there continuity?

  YES

  Repair a short to ground in the wire.

  NO

  The ATP-P wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

• 26. Keyless/power door locks/security system check 2:

  - 1. Disconnect the following connector.

  Transmission range switch 10P connector

  - 2. Connect terminals A and B with a jumper wire.

  Terminal A	Transmission range switch 10P connector No. 5
  Terminal B	Body ground

  Courtesy of HONDA, U.S.A., INC.

  - 3. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  A/T Gear Position Switch (P)

  Is information indicator ON?

  YES

  Go to step 27.

  NO

  Go to step 28.

• 27. Open wire check (GND line):

  - 1. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Transmission range switch 10P connector: disconnected
  Test point 1	Transmission range switch 10P connector No. 1
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The GND wire is OK. Replace the transmission range switch .

  NO

  Repair an open or high resistance in the ground wire or poor ground (G101).

• 28. Open wire check (ATP-P line):

  - 1. Connect terminals A and B with a jumper wire.

  Terminal A	Under-dash fuse/relay box connector D (32P) No. 22
  Terminal B	Body ground

  - 2. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  A/T Gear Position Switch (P)

  Is information indicator ON?

  YES

  Repair an open or high resistance in the wire.

  NO

  The ATP-P wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

• 29. Keyless/power door locks/security system check 1:

  - 1. With the driver's door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  Is information indicator ON?

  YES

  Go to step 30.

  NO

  Go to step 32.

• 30. Determine possible failure area (driver's door latch, others):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Driver's door latch 10P connector

  - 3. Check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  Is information indicator OFF?

  YES

  Faulty driver's door lock knob switch; replace the driver's door latch .

  NO

  Go to step 31.

• 31. Shorted wire check (DR SILCON UNLOCK line):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Without door multiplex control unit

  Under-dash fuse/relay box connector X (10P)

  With door multiplex control unit

  Power window master switch 37P connector

  - 3. Check for continuity between test points 1 and 2.

  Without door multiplex control unit

  Test condition	Vehicle OFF (LOCK) mode Driver's door latch 10P connector: disconnected Under-dash fuse/relay box connector X (10P): disconnected
  Test point 1	Under-dash fuse/relay box connector X (10P) No. 4
  Test point 2	Body ground

  With door multiplex control unit

  Test condition	Vehicle OFF (LOCK) mode Driver's door latch 10P connector: disconnected Power window master switch 37P connector: disconnected
  Test point 1	Power window master switch 37P connector No. 32
  Test point 2	Body ground

  Is there continuity?

  YES

  Repair a short to ground in the wire.

  NO

  The DR SILCON UNLOCK wire is OK:

  • Without front windows and all windows AUTO UP/AUTO DOWN function Replace the under-dash fuse/relay box
  • With front windows and all windows AUTO UP/AUTO DOWN function Replace the power window master switch
• 32. Keyless/power door locks/security system check 2:

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Driver's door latch 10P connector

  - 3. Connect terminals A and B with a jumper wire.

  Terminal A	Driver's door latch 10P connector No. 5
  Terminal B	Body ground

  Courtesy of HONDA, U.S.A., INC.

  - 4. Check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  Is information indicator ON?

  YES

  Go to step 33.

  NO

  Go to step 34.

• 33. Open wire check (GND line):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Driver's door latch 10P connector: disconnected
  Test point 1	Driver's door latch 10P connector No. 7
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The GND wire is OK. Faulty driver's door lock knob switch; replace the driver's door latch .

  NO

  Repair an open or high resistance in the wire or poor ground (G501).

• 34. Open wire check (DR SILCON UNLOCK line):

  - 1. Connect terminals A and B with a jumper wire.

  Without door multiplex control unit

  Terminal A	Under-dash fuse/relay box connector X (10P) No. 4
  Terminal B	Body ground

  With door multiplex control unit

  Terminal A	Power window master switch 37P connector No. 32
  Terminal B	Body ground

  - 2. Check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Driver's Door Lock Knob Switch(UNLOCK)

  Is information indicator ON?

  YES

  Repair an open or high resistance in the wire.

  NO

  The DR SILCON UNLOCK wire is OK:

  • Without front windows and all windows AUTO UP/AUTO DOWN function Replace the under-dash fuse/relay box
  • With front windows and all windows AUTO UP/AUTO DOWN function Replace the power window master switch
• 35. Keyless/power door locks/security system check 1:

  - 1. With the front passenger's door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Front Passenger's Door Lock Knob Sw.(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Passenger's Door Lock Knob Sw.(UNLOCK)

  Is information indicator ON?

  YES

  Go to step 36.

  NO

  Go to step 38.

• 36. Determine possible failure area (front passenger's door latch, others):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Front passenger's door latch 10P connector

  - 3. Check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Front Passenger's Door Lock Knob Sw.(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Passenger's Door Lock Knob Sw.(UNLOCK)

  Is information indicator OFF?

  YES

  Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

  NO

  Go to step 37.

• 37. Shorted wire check (AS SILCON UNLOCK line):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Without door multiplex control unit

  Under-dash fuse/relay box connector W (24P)

  With door multiplex control unit

  Front passenger's power window switch 37P connector

  - 3. Check for continuity between test points 1 and 2.

  Without door multiplex control unit

  Test condition	Vehicle OFF (LOCK) mode Front passenger's door latch 10P connector: disconnected Under-dash fuse/relay box connector W (24P): disconnected
  Test point 1	Under-dash fuse/relay box connector W (24P) No. 10
  Test point 2	Body ground

  With door multiplex control unit

  Test condition	Vehicle OFF (LOCK) mode Front passenger's door latch 10P connector: disconnected Front passenger's power window switch 37P connector: disconnected
  Test point 1	Front passenger's power window switch 37P connector No. 29
  Test point 2	Body ground

  Is there continuity?

  YES

  Repair a short to ground in the wire.

  NO

  The AS SILCON UNLOCK wire is OK:

  • Without door multiplex control unit:Replace the under-dash fuse/relay box
  • With door multiplex control unitReplace the front passenger's power window switch - Refer to: Rear Power Window Switch Removal and InstallationFront Passenger's Power Window Switch Removal and Installation
• 38. Keyless/power door locks/security system check 2:

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Front passenger's door latch 10P connector

  - 3. Connect terminals A and B with a jumper wire.

  Terminal A	Front passenger's door latch 10P connector No. 10
  Terminal B	Body ground

  Courtesy of HONDA, U.S.A., INC.

  - 4. Check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Front Passenger's Door Lock Knob Sw.(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Passenger's Door Lock Knob Sw.(UNLOCK)

  Is information indicator ON?

  YES

  Go to step 39.

  NO

  Go to step 40.

• 39. Open wire check (GND line):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Front passenger's door latch 10P connector: disconnected
  Test point 1	Front passenger's door latch 10P connector No. 8
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The GND wire is OK. Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

  NO

  Repair an open or high resistance in the ground wire or poor ground (G503).

• 40. Open wire check (AS SILCON UNLOCK line):

  - 1. Connect terminals A and B with a jumper wire.

  Without door multiplex control unit

  Terminal A	Under-dash fuse/relay box connector W (24P) No. 10
  Terminal B	Body ground

  With door multiplex control unit

  Terminal A	Front passenger's power window switch 37P connector No. 29
  Terminal B	Body ground

  - 2. Check the parameter(s) below with the HDS.

  Without door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Front Passenger's Door Lock Knob Sw.(UNLOCK)

  With door multiplex control unit

  Signal	Current conditions
  	Value	Unit
  Passenger's Door Lock Knob Sw.(UNLOCK)

  Is information indicator ON?

  YES

  Repair an open or high resistance in the wire.

  NO

  The AS SILCON UNLOCK wire is OK:

  • Without door multiplex control unit Replace the under-dash fuse/relay box
  • With door multiplex control unitReplace the front passenger's power window switch - Refer to: Rear Power Window Switch Removal and InstallationFront Passenger's Power Window Switch Removal and Installation
• 41. Keyless/power door locks/security system check 1:

  - 1. With the left rear door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  Driver's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator ON?

  YES

  Go to step 42.

  NO

  Go to step 44.

• 42. Determine possible failure area (left rear door latch, others):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Left rear door latch 10P connector

  - 3. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  Driver's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator OFF?

  YES

  Faulty left rear door lock knob switch; replace the left rear door latch .

  NO

  Go to step 43.

• 43. Shorted wire check (RR DR SILCON UNLOCK line):

  - 1. Disconnect the following connector.

  Under-dash fuse/relay box connector W (24P)

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Left rear door latch 10P connector: disconnected Under-dash fuse/relay box connector W (24P): disconnected
  Test point 1	Under-dash fuse/relay box connector W (24P) No. 5
  Test point 2	Body ground

  Is there continuity?

  YES

  Repair a short to ground in the wire.

  NO

  The RR DR SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

• 44. Keyless/power door locks/security system check 2:

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Left rear door latch 10P connector

  - 3. Connect terminals A and B with a jumper wire.

  Terminal A	Left rear door latch 10P connector No. 9
  Terminal B	Body ground

  Courtesy of HONDA, U.S.A., INC.

  - 4. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  Driver's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator ON?

  YES

  Go to step 45.

  NO

  Go to step 46.

• 45. Open wire check (GND line):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Left rear door latch 10P connector: disconnected
  Test point 1	Left rear door latch 10P connector No. 6
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The GND wire is OK. Faulty left rear door lock knob switch; replace the left rear door latch .

  NO

  Repair an open or high resistance in the ground wire or poor ground (G601).

• 46. Open wire check (RR DR SILCON UNLOCK line):

  - 1. Connect terminals A and B with a jumper wire.

  Terminal A	Under-dash fuse/relay box connector W (24P) No. 5
  Terminal B	Body ground

  - 2. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  Value	Unit
  Driver's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator ON?

  YES

  Repair an open or high resistance in the wire.

  NO

  The RR DR SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

• 47. Keyless/power door locks/security system check 1:

  - 1. With the right rear door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  Driver's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator ON?

  YES

  Go to step 48.

  NO

  Go to step 50.

• 48. Determine possible failure area (right rear door latch, others):

  - 1. Disconnect the following connector.

  Right rear door latch 10P connector

  - 2. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  Passenger's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator OFF?

  YES

  Faulty right rear door lock knob switch; replace the right rear door latch .

  NO

  Go to step 49.

• 49. Shorted wire check (RR AS SILCON UNLOCK line):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Under-dash fuse/relay box connector W (24P)

  - 3. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Right rear door latch 10P connector: disconnected Under-dash fuse/relay box connector W (24P): disconnected
  Test point 1	Under-dash fuse/relay box connector W (24P) No. 4
  Test point 2	Body ground

  Is there continuity?

  YES

  Repair a short to ground in the wire.

  NO

  The RR AS SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

• 50. Keyless/power door locks/security system check 2:

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the following connector.

  Right rear door latch 10P connector

  - 3. Connect terminals A and B with a jumper wire.

  Terminal A	Right rear door latch 10P connector No. 6
  Terminal B	Body ground

  Courtesy of HONDA, U.S.A., INC.

  - 4. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  Passenger's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator ON?

  YES

  Go to step 51.

  NO

  Go to step 52.

• 51. Open wire check (GND line):

  - 1. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode Right rear door latch 10P connector: disconnected
  Test point 1	Right rear door latch 10P connector No. 9
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there continuity?

  YES

  The GND wire is OK. Faulty right rear door lock knob switch; replace the right rear door latch .

  NO

  Repair an open or high resistance in the ground wire or poor ground (G604).

• 52. Open wire check (RR AS SILCON UNLOCK line):

  - 1. Connect terminals A and B with a jumper wire.

  Terminal A	Under-dash fuse/relay box connector W (24P) No. 4
  Terminal B	Body ground

  - 2. Check the parameter(s) below with the HDS.

  Signal	Current conditions
  	Value	Unit
  Passenger's Rear Door Lock Knob Switch (UNLOCK)

  Is information indicator ON?

  YES

  Repair an open or high resistance in the wire.

  NO

  The RR AS SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .
