TPMS Calibration Procedure

The calibration begins when TPMS switch is pressed. The calibration is completed after driving at 31 to 62 mph (50 to 100 km/h), steadily without much acceleration or deceleration, for about 18 minutes. Full functionality of the system cannot be performed properly if the calibration is not completed.

1. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb label.
2. Turn the ignition switch to ON mode.
   NOTE: Vehicle must be stopped with the transmission in P or N.
3. Press and hold the INFORMATION button (A) for at least 3 seconds to enter the customizing mode. See Fig 1.
4. Press the SEL/RESET button (B) to select TPMS.
5. Press the SEL/RESET button to select CALIBRATE.
   NOTE: If COMPLETED is displayed in the multi-information display (C), TPMS learning procedure is completed. If FAILED is displayed in the multi-information display, see manufacturer's service information.
6. See Calibration Completion Check.

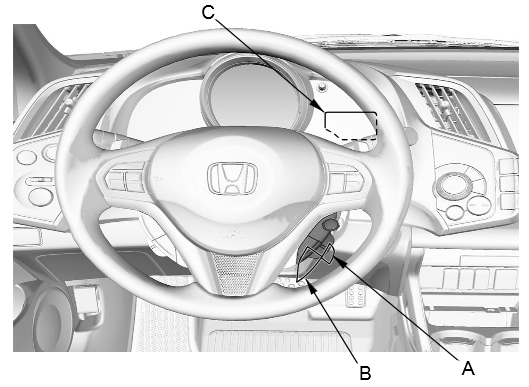

Fig 1: Identifying TPMS Button & Information Display Indicator

Courtesy of AMERICAN HONDA MOTOR CO., INC.
