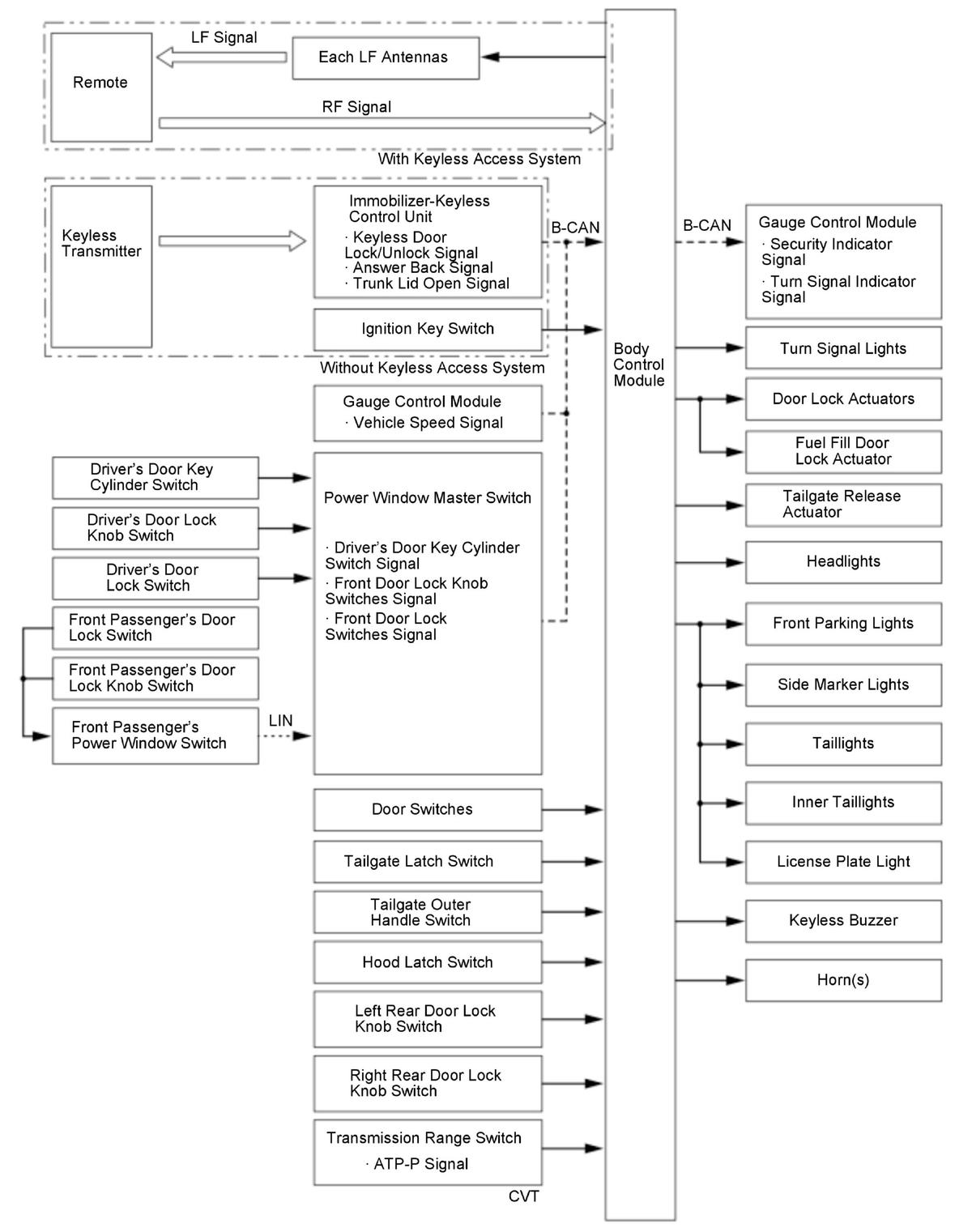

Keyless/Power Door Locks/Security System Description - System Diagram (5-door) (2017 2018 2019 2020 2021)
For locations of each component on the vehicle, refer to the Component Location Index
Courtesy of HONDA, U.S.A., INC.
