Audio-Navigation Unit Connector for Inputs and Outputs (2016 2017 2018)
| Connector Index |
| Audio-Navigation Unit Connector A (24P) (With Stereo Amplifier) |
| Audio-Navigation Unit Connector A (24P) (Without Stereo Amplifier) |
| Audio-Navigation Unit Connector B (24P) |
| Audio-Navigation Unit Connector C (32P) |
| Audio-Navigation Unit Connector E (16P) |
| Audio-Navigation Unit Connector F (5P) |
| Audio-Navigation Unit Connector G (5P) |
| Audio-Navigation Unit Connector H (3P) |
| Audio-Navigation Unit Connector J (3P) |
| Audio-Navigation Unit Connector K (2P) |
| Audio-Navigation Unit Connector L (2P) |
| Audio-Navigation Unit Connector M (4P) (With Stereo Amplifier) |
| Audio-Navigation Unit Connector N (2P) (With XM) |

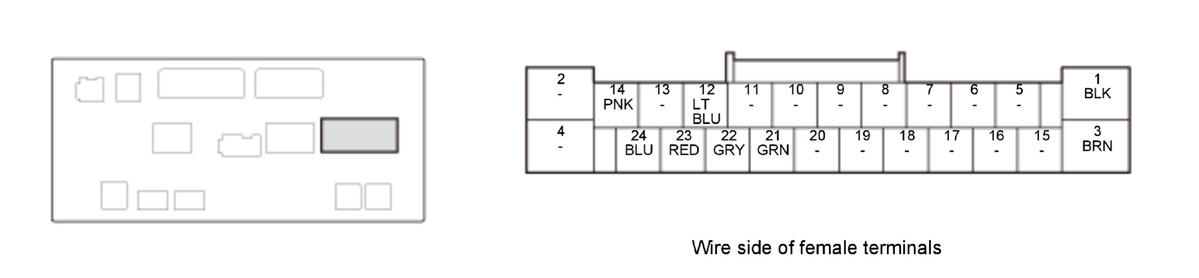

AUDIO-NAVIGATION UNIT CONNECTOR A (24P) (With Stereo Amplifier)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GND |
Ground for audio-navigation unit (G504) |
| A2 |
Not used |
--- |
| A3 |
+B AUDIO |
Continuous power source |
| A4 |
Not used |
--- |
| A5 |
Not used |
--- |
| A6 |
Not used |
--- |
| A7 |
Not used |
--- |
| A8 |
Not used |
--- |
| A9 |
Not used |
--- |
| A10 |
Not used |
--- |
| A11 |
Not used |
--- |
| A12 |
K LINE |
Detects scan tool signal (serial data) |
| A13 |
Not used |
--- |
| A14 |
B-CAN_H |
Communication signal |
| A15 |
Not used |
--- |
| A16 |
Not used |
--- |
| A17 |
Not used |
--- |
| A18 |
Not used |
--- |
| A19 |
Not used |
--- |
| A20 |
Not used |
--- |
| Cavity |
Terminal Name |
Description |
| A21 |
SWD+B |
Outputs signal for stereo amplifier switching on/off |
| A22 |
VSP |
Inputs vehicle speed pulse |
| A23 |
ACC |
Power source for accessories |
| A24 |
B-CAN_L |
Communication signal |
AUDIO-NAVIGATION UNIT CONNECTOR A (24P) (Without Stereo Amplifier)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GND |
Ground for audio-navigation unit (G504) |
| A2 |
Not used |
--- |
| A3 |
+B AUDIO |
Continuous power source |
| A4 |
Not used |
--- |
| A5 |
RL SPKR+ |
Outputs sound signal for left rear speaker and left rear tweeter |
| A6 |
RL SPKR- |
Outputs sound signal for left rear speaker and left rear tweeter |
| A7 |
RR SPKR+ |
Outputs sound signal for right rear speaker and right rear tweeter |
| A8 |
RR SPKR- |
Outputs sound signal for right rear speaker and right rear tweeter |
| A9 |
Not used |
--- |
| A10 |
Not used |
--- |
| A11 |
Not used |
--- |
| A12 |
K LINE |
Detects scan tool signal (serial data) |
| A13 |
Not used |
--- |
| A14 |
B-CAN_H |
Communication signal |
| A15 |
FL SPKR+ |
Outputs sound signal for driver's door speaker and left front tweeter |
| A16 |
FL SPKR- |
Outputs sound signal for driver's door speaker and left front tweeter |
| A17 |
FR SPKR+ |
Outputs sound signal for front passenger's door speaker and right front tweeter |
| A18 |
FR SPKR- |
Outputs sound signal for front passenger's door speaker and right front tweeter |
| A19 |
Not used |
--- |
| A20 |
Not used |
--- |
| A21 |
Not used |
--- |
| A22 |
VSP |
Inputs vehicle speed pulse |
| A23 |
ACC |
Power source for accessories |
| A24 |
B-CAN_L |
Communication signal |

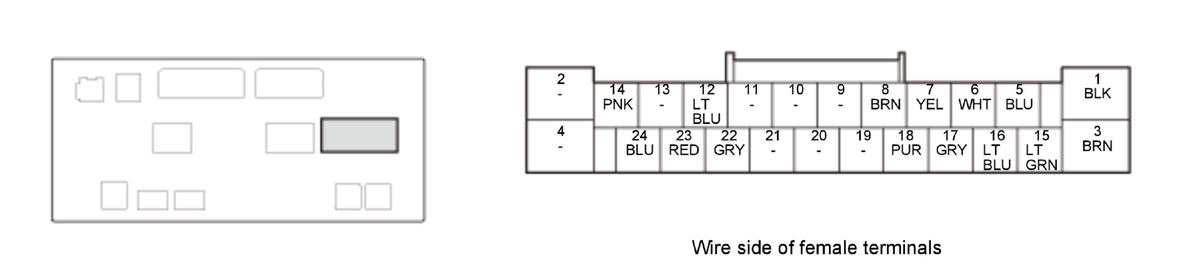

AUDIO-NAVIGATION UNIT CONNECTOR B (24P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 * |
AUX NAVI SH |
Shield for terminals No. 2, No. 13, and No. 14 |
| B2 * |
AUX BEEP |
Outputs system beep signal |
| B3 |
Not used |
--- |
| B4 |
Not used |
--- |
| B5 |
Not used |
--- |
| B6 |
LANEWATCH SW |
Detects LaneWatch on/off signal from LaneWatch switch |
| B7 |
Not used |
--- |
| B8 |
LWC CAM VCC |
Power source for LaneWatch camera |
| B9 |
SH LWC CAM |
Shield for terminals No. 8, No. 20, No. 21, No. 22, and No. 23 |
| B10 |
Not used |
--- |
| B11 |
Not used |
--- |
| B12 |
Not used |
--- |
| B13 * |
AUX NAVI |
Outputs sound signal for voice guidance and Voice Recognition (VR) prompts |
| B14 * |
AUX NAVI GND |
Basis ground for terminals No. 2 and No. 13 |
| B15 |
Not used |
--- |
| B16 |
Not used |
--- |
| B17 |
Not used |
--- |
| B18 |
Not used |
--- |
| B19 |
Not used |
--- |
| B20 |
LWC CAM VID |
Inputs video signal from LaneWatch camera |
| B21 |
LWC CAM VGND |
Ground for LaneWatch camera |
| B22 |
UNIT TO LWC |
Communication signal for LaneWatch camera |
| B23 |
LWC TO UNIT |
Communication signal for LaneWatch camera |
| B24 |
Not used |
--- |

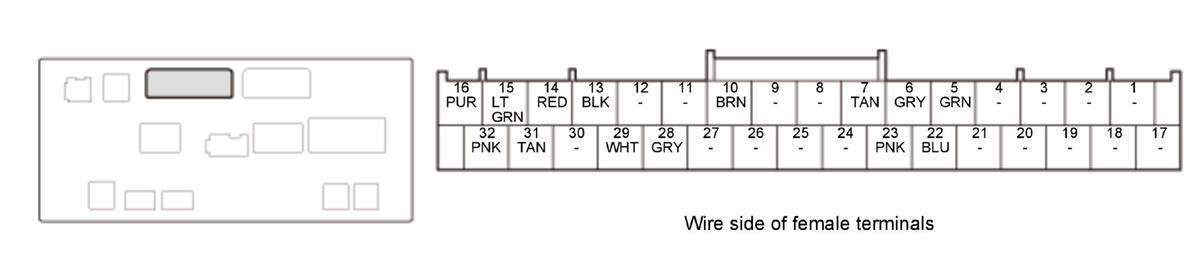

AUDIO-NAVIGATION UNIT CONNECTOR C (32P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
Not used |
--- |
| C2 |
Not used |
--- |
| C3 |
Not used |
--- |
| C4 |
Not used |
--- |
| C5 |
HFT MUTE |
Outputs HFL microphone directivity switching signal |
| C6 |
SH MIC |
Shield for terminals No. 22 and No. 23 |
| C7 |
MIC PWR |
Power source for HFL microphone |
| C8 |
Not used |
--- |
| C9 |
Not used |
--- |
| C10 |
IG1 METER |
IG1 power source |
| C11 |
Not used |
--- |
| C12 |
Not used |
--- |
| C13 |
CAMERA VCC |
Power source for rearview camera |
| C14 |
CAMERA GND |
Ground for rearview camera |
| C15 |
BACK LT |
Detects reverse signal |
| C16 |
CAMERA ADPT |
Detects connection for rearview camera |
| C17 |
Not used |
--- |
| C18 |
Not used |
--- |
| C19 |
Not used |
--- |
| C20 |
Not used |
--- |
| C21 |
Not used |
--- |
| C22 |
MIC+ |
Inputs sound signal from HFL microphone |
| C23 |
MIC GND |
Ground for HFL microphone |
| C24 |
Not used |
--- |
| C25 |
Not used |
--- |
| C26 |
Not used |
--- |
| C27 |
Not used |
--- |
| C28 |
SH CAMERA |
Shield for terminals No. 13, No. 14, and No. 29 |
| C29 |
CAMERA V |
Inputs NTSC video signal from rearview camera |
| C30 |
Not used |
--- |
| C31 |
CAMERA BIT0 |
Outputs mode select signal for rearview camera |
| C32 |
CAMERA BIT1 |
Outputs mode select signal for rearview camera |

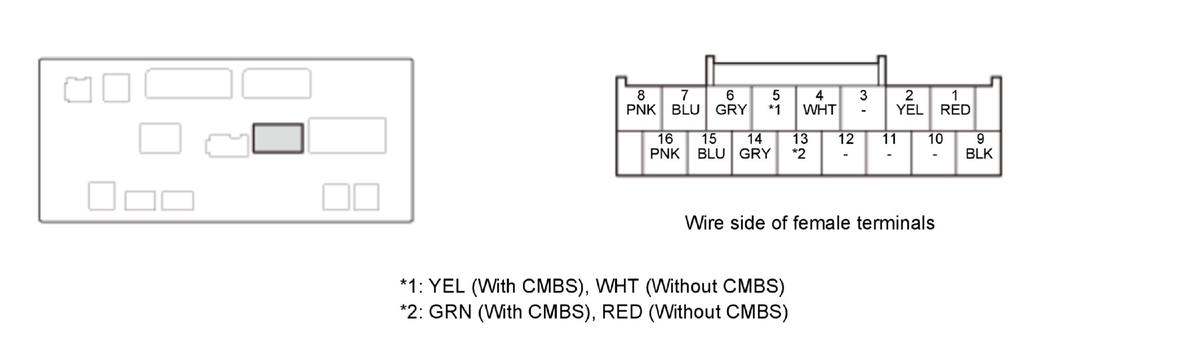

AUDIO-NAVIGATION UNIT CONNECTOR E (16P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| E1 |
TUNER 6V |
Power source for tuner unit |
| Cavity |
Terminal Name |
Description |
| E2 |
TUNER 9V |
Power source for tuner unit |
| E3 |
Not used |
--- |
| E4 |
DISP CONT |
Outputs signal for center display unit switching on/off |
| E5 |
F-CAN B_H *1F-CAN_H *2 |
Communication signal |
| E6 *3 |
AMP RS485 SH |
Shield for terminals No. 7 and No. 8 |
| E7 *3 |
RS485+ |
Communication signal for stereo amplifier |
| E8 *3 |
RS485- |
Communication signal for stereo amplifier |
| E9 |
TUNER GND |
Ground for tuner unit |
| E10 |
Not used |
--- |
| E11 |
Not used |
--- |
| E12 |
Not used |
--- |
| E13 |
F-CAN B_L *1F-CAN_L *2 |
Communication signal |
| E14 |
TUNER RS485 SH |
Shield for terminals No. 15 and No. 16 |
| E15 |
TUNER RS485+ |
Communication signal for tuner unit |
| E16 |
TUNER RS485- |
Communication signal for tuner unit |
| *1: With CMBS |
| *2: Without CMBS |
| *3: With stereo amplifier |

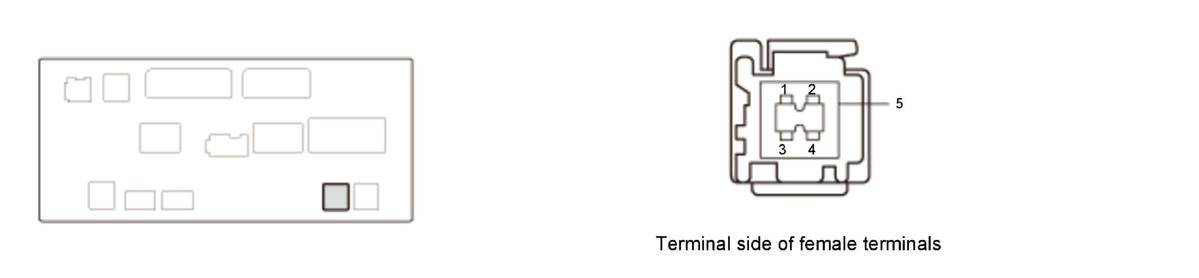

AUDIO-NAVIGATION UNIT CONNECTOR F (5P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| F1 |
USB1 GND |
Ground for USB port A |
| F2 |
USB1 VBUS |
Outputs power source for USB port A |
| F3 |
USB1 DATA+ |
Communication signal |
| F4 |
USB1 DATA- |
Communication signal |
| F5 |
USB1 SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

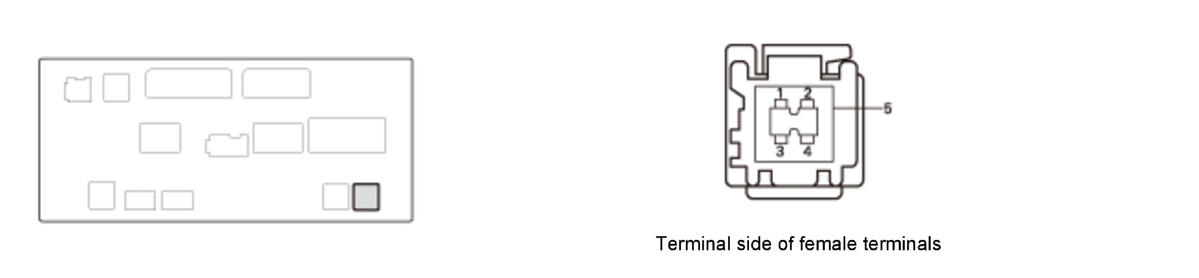

AUDIO-NAVIGATION UNIT CONNECTOR G (5P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| G1 |
USB2 GND |
Ground for USB port B |
| G2 |
USB2 VBUS |
Outputs power source for USB port B |
| G3 |
USB2 DATA+ |
Communication signal |
| G4 |
USB2 DATA- |
Communication signal |
| G5 |
USB2 SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

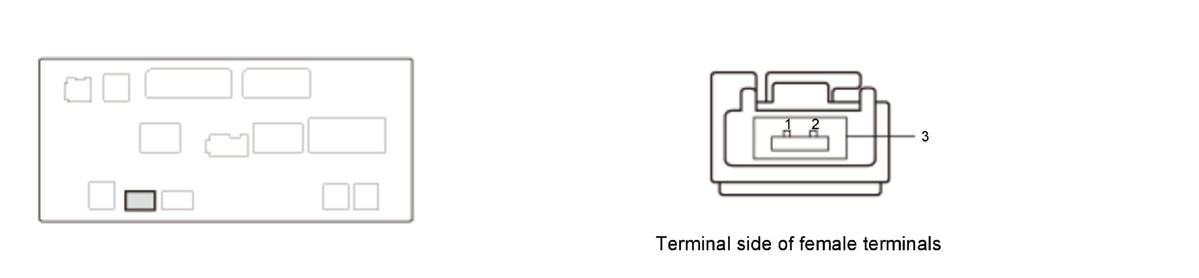

AUDIO-NAVIGATION UNIT CONNECTOR H (3P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| H1 |
LVDS1+ |
Communication signal for center display unit |
| H2 |
LVDS1- |
Communication signal for center display unit |
| H3 |
LVDS1 SH |
Shield for terminals No. 1 and No. 2 |

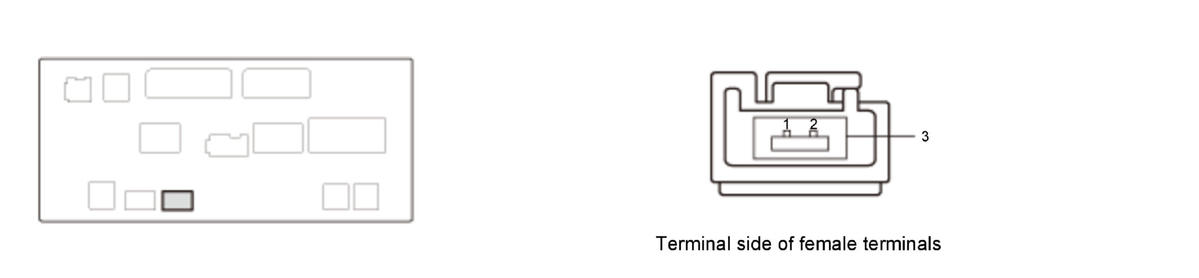

AUDIO-NAVIGATION UNIT CONNECTOR J (3P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| J1 |
LVDS2+ |
Communication signal for gauge control module |
| J2 |
LVDS2- |
Communication signal for gauge control module |
| J3 |
LVDS2 SH |
Shield for terminals No. 1 and No. 2 |

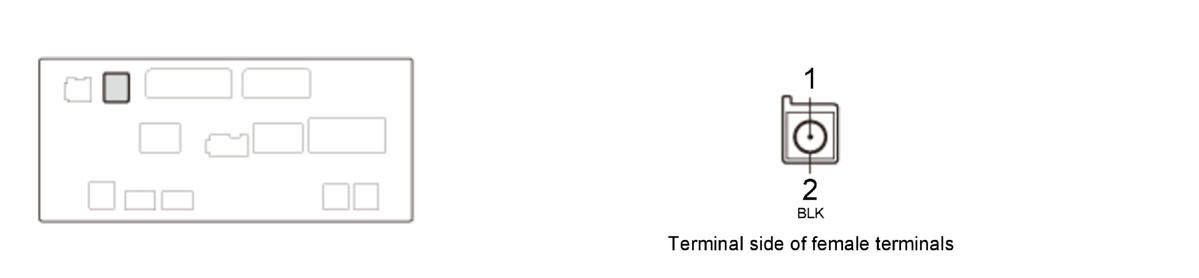

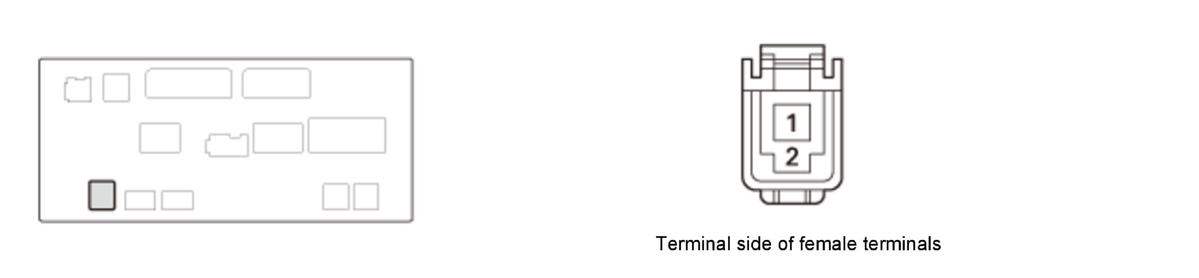

AUDIO-NAVIGATION UNIT CONNECTOR K (2P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| K1 |
GPS ANT |
Inputs GPS signal |
| K2 |
GPS SH |
Shield for terminal No. 1 |
AUDIO-NAVIGATION UNIT CONNECTOR L (2P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| L1 |
SPDIF1 SIG |
Communication signal for tuner unit |
| L2 |
SPDIF1 SH |
Shield for terminal No. 1 |

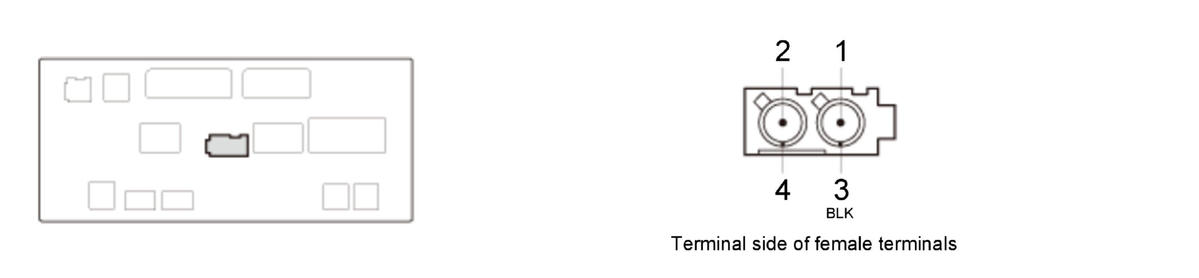

AUDIO-NAVIGATION UNIT CONNECTOR M (4P) (With Stereo Amplifier)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| M1 |
SPDIF2 SIG |
Communication signal for stereo amplifier |
| M2 |
Not used |
--- |
| M3 |
SPDIF2 SH |
Shield for terminal No. 1 |
| M4 |
Not used |
--- |

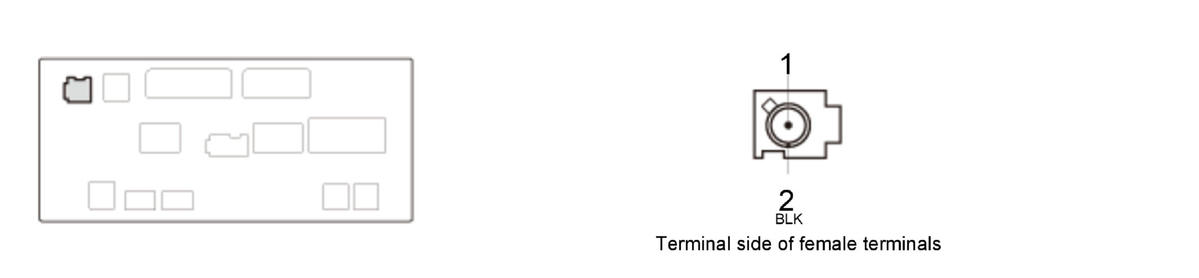

AUDIO-NAVIGATION UNIT CONNECTOR N (2P) (With XM)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| N1 |
SAT/TER |
Inputs satellite/terrestrial signal |
| N2 |
SH(SAT/TER) |
Shield for terminal No. 1 |
