BSI Radar Unit Connector for Inputs and Outputs

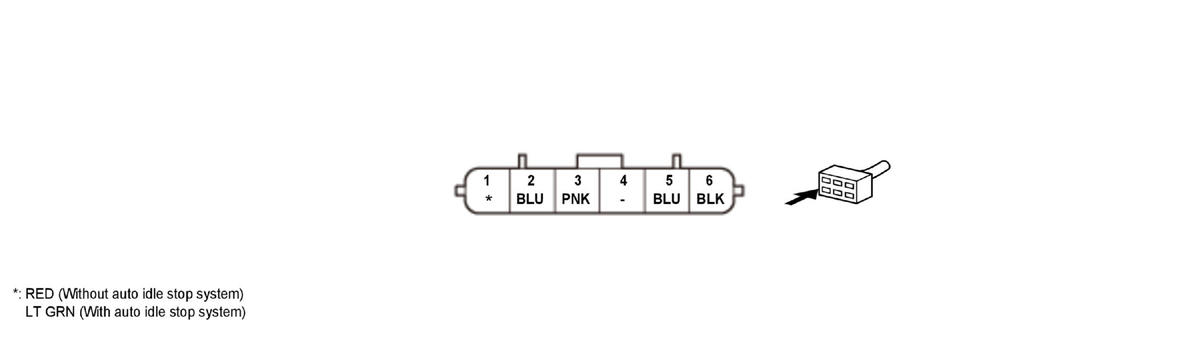

Left Side BSI Radar Unit 6P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1 OPTION *1IG1 EBB *2 | Detects ignition signal |
| 2 | BSI L IND | Drives the left BSI alert indicator |
| 3 | B-CAN_H | B-CAN communication (high) circuit |
| 4 | Not used | - |
| 5 | B-CAN_L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the BSI radar unit |
*1: Without auto idle stop system
*2: With auto idle stop system

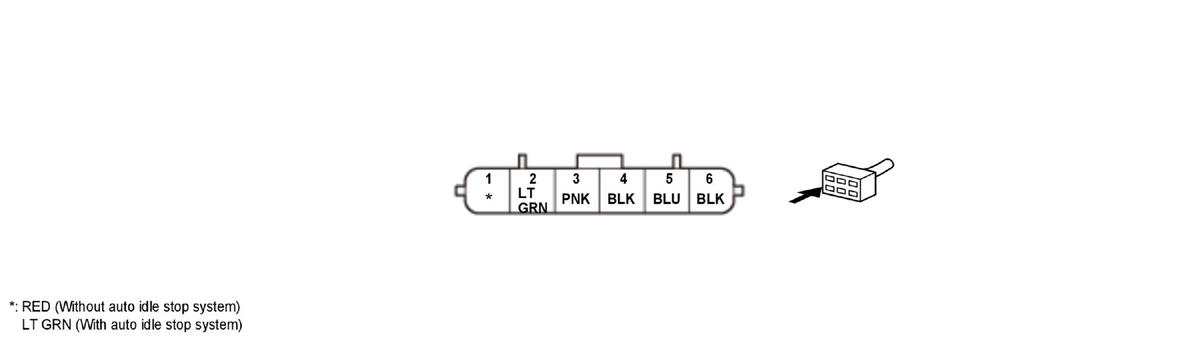

Right Side BSI Radar Unit 6P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1 OPTION *1IG1 EBB *2 | Detects ignition signal |
| 2 | BSI R IND | Drives the right BSI alert indicator |
| 3 | B-CAN_H | B-CAN communication (high) circuit |
| 4 | GND | Ground circuit for the BSI radar unit |
| 5 | B-CAN_L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the BSI radar unit |
*1: Without auto idle stop system
*2: With auto idle stop system
