Run the Sensor Input Display Mode

1. Press and hold both the AUTO and RECIRCULATION buttons, then start the engine.

2. Release both buttons. The display screen goes directly to the A/C sensor display mode shown. The display screen indicates the sensor ID and then the value for that sensor.

GHH428659Courtesy of HONDA, U.S.A., INC.

To advance to the next sensor, touch the sensor ID previous/next icon or press the REAR WINDOW DEFOGGER/MIRROR DEFOGGER * button.

*: With mirror defogger

NOTE:
  • The sensor values will be displayed in degrees Celsius (deg.C) or an alphanumeric code. Use the chart to convert the value to degrees Fahrenheit (deg.F).
  • If the sensor value displays "255", this indicates there is an open or short in the circuit or sensor. Check for DTCs using the HDS, or use the climate control self-diagnostic function.
  • If necessary, compare the sensor input display to a known-good vehicle under the same test conditions.
  • If the sensor displayed value is out of the normal range, refer to the sensor test or substitute a known-good sensor, and recheck.
  • Unsupported items shall be skipped.
Sensor ID Sensor Name Data Value
0 In-car temperature sensor deg.C
1 Outside air temperature sensor deg.C
2 Sunlight sensor 10 W/m 2
3 Engine coolant temperature deg.C
4 Evaporator temperature sensor deg.C
8 Air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution) *1Driver's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution) *2 % of opening
9 *2 Passenger's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution) % of opening
10 Mode positioning 0.1 V
11 Recirculation control opening % of opening
26 Not used ---
27 Sunlight sensor type
  • Hard Wire
  • BCAN
  • Unknown

*1: Without dual zone control*2: With dual zone control

Celsius to Fahrenheit Conversion Table

deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F
0 32 10 50 20 68 30 86 40 104
1 34 11 52 21 70 31 88 41 106
2 36 12 54 22 72 32 90 42 108
3 37 13 55 23 73 33 91 43 109
4 39 14 57 24 75 34 93 44 111
5 41 15 59 25 77 35 95 45 113
6 43 16 61 26 79 36 97 46 115
7 45 17 63 27 81 37 99 47 117
8 46 18 64 28 82 38 100 48 118
9 48 19 66 29 84 39 102 49 120
deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F
50 122 60 140 70 158 80 176 90 194
51 124 61 142 71 160 81 178 91 196
52 126 62 144 72 162 82 180 92 198
53 127 63 145 73 163 83 181 93 199
54 129 64 147 74 165 84 183 94 201
55 131 65 149 75 167 85 185 95 203
56 133 66 151 76 169 86 187 96 205
57 135 67 153 77 171 87 189 97 207
58 136 68 154 78 172 88 190 98 208
59 138 69 156 79 174 89 192 99 210

Alphanumeric Conversion Table

Display Reading (Alphanumeric) Value
0 thru 200 0 thru 200
201 thru 209 -1 thru -9
210 thru 219 -10 thru -19
220 thru 229 -20 thru -29
230 thru 239 -30 thru -39
240 thru 249 -40 thru -49
250 thru 253 Not used
254 ---
255 Er

Alphanumeric Conversion Table (Mode Positioning)

Display Reading (%) Indication Mode Position
-01-01
GHH428660Courtesy of HONDA, U.S.A., INC.
 VENT
16-18
GHH428661Courtesy of HONDA, U.S.A., INC.
 HEAT/VENT-1
22-25 HEAT/VENT-2
32-34 HEAT/VENT-3

*1: Auto mode

*2: Manual mode

Display Reading (%) Indication Mode Position
46-48
GHH428662Courtesy of HONDA, U.S.A., INC.
 HEAT-1
58-61 HEAT-2
68-71
GHH428663Courtesy of HONDA, U.S.A., INC.
 HEAT/DEF-1
88-90 HEAT/DEF-2
99-101
GHH428664Courtesy of HONDA, U.S.A., INC.
 DEF
Not indication *2

*1: Auto mode

*2: Manual mode

4. To cancel the sensor input display mode, press the AUTO button or turn the vehicle to the OFF (LOCK) mode.



1. Press and hold both the AUTO and RECIRCULATION buttons, then start the engine.

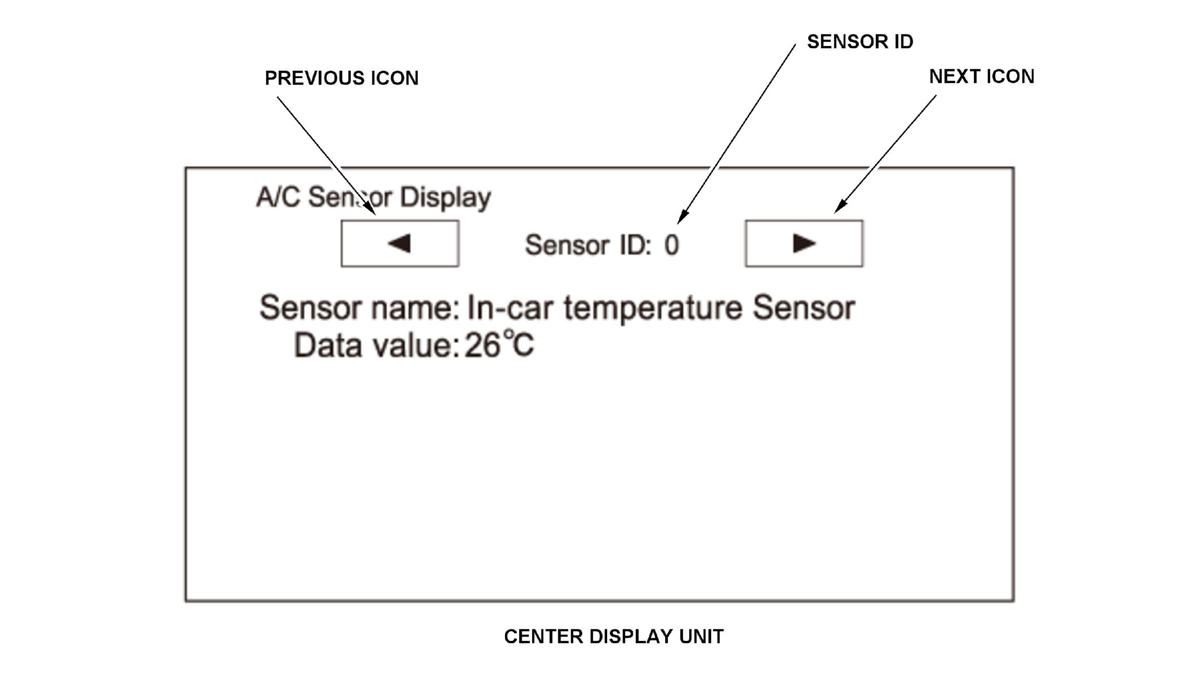

2. Release both buttons. The display screen goes directly to the A/C sensor display mode shown. The display screen indicates the sensor ID and then the value for that sensor.

GHH428671Courtesy of HONDA, U.S.A., INC.

To advance to the next sensor, touch the sensor ID previous/next icon or press the REAR WINDOW DEFOGGER/MIRROR DEFOGGER * button.

*: With mirror defogger

NOTE:
  • The sensor values will be displayed in degrees Celsius (deg.C) or an alphanumeric code. Use the chart to convert the value to degrees Fahrenheit (deg.F).
  • If the sensor value displays "255", this indicates there is an open or short in the circuit or sensor. Check for DTCs using the HDS, or use the climate control self-diagnostic function.
  • If necessary, compare the sensor input display to a known-good vehicle under the same test conditions.
  • If the sensor displayed value is out of the normal range, refer to the sensor test or substitute a known-good sensor, and recheck.
  • Unsupported items shall be skipped.
Sensor ID Sensor Name Data Value
0 In-car temperature sensor deg.C
1 Outside air temperature sensor deg.C
2 Sunlight sensor 10 W/m 2
3 Engine coolant temperature deg.C
4 Evaporator temperature sensor deg.C
5 Humidity sensor %
8 Air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution) *1Driver's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution) *2 % of opening
9 *2 Passenger's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution) % of opening
10 Mode positioning 0.1 V
11 Recirculation control opening % of opening
26 Not used ---
27 Sunlight sensor type
  • Hard Wire
  • BCAN
  • Unknown

*1: Without dual zone control*2: With dual zone control

Celsius to Fahrenheit Conversion Table

deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F
0 32 10 50 20 68 30 86 40 104
1 34 11 52 21 70 31 88 41 106
2 36 12 54 22 72 32 90 42 108
3 37 13 55 23 73 33 91 43 109
4 39 14 57 24 75 34 93 44 111
5 41 15 59 25 77 35 95 45 113
6 43 16 61 26 79 36 97 46 115
7 45 17 63 27 81 37 99 47 117
8 46 18 64 28 82 38 100 48 118
9 48 19 66 29 84 39 102 49 120
deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F deg.C deg.F
50 122 60 140 70 158 80 176 90 194
51 124 61 142 71 160 81 178 91 196
52 126 62 144 72 162 82 180 92 198
53 127 63 145 73 163 83 181 93 199
54 129 64 147 74 165 84 183 94 201
55 131 65 149 75 167 85 185 95 203
56 133 66 151 76 169 86 187 96 205
57 135 67 153 77 171 87 189 97 207
58 136 68 154 78 172 88 190 98 208
59 138 69 156 79 174 89 192 99 210

Alphanumeric Conversion Table

Display Reading (Alphanumeric) Value
0 thru 200 0 thru 200
201 thru 209 -1 thru -9
Display Reading (Alphanumeric) Value
210 thru 219 -10 thru -19
220 thru 229 -20 thru -29
230 thru 239 -30 thru -39
240 thru 249 -40 thru -49
250 thru 253 Not used
254 ---
255 Er

Alphanumeric Conversion Table (Mode Positioning)

Display Reading (%) Indication Mode Position
-01-01
GHH428672Courtesy of HONDA, U.S.A., INC.
 VENT
16-18
GHH428673Courtesy of HONDA, U.S.A., INC.
 HEAT/VENT-1
22-25 HEAT/VENT-2
32-34 HEAT/VENT-3
46-48
GHH428674Courtesy of HONDA, U.S.A., INC.
 HEAT-1
58-61 HEAT-2
68-71
GHH428675Courtesy of HONDA, U.S.A., INC.
 HEAT/DEF-1
88-90 HEAT/DEF-2
99-101
GHH428676Courtesy of HONDA, U.S.A., INC.
 DEF
Not indication *2

*1: Auto mode

*2: Manual mode

4. To cancel the sensor input display mode, press the AUTO button or turn the vehicle to the OFF (LOCK) mode.
