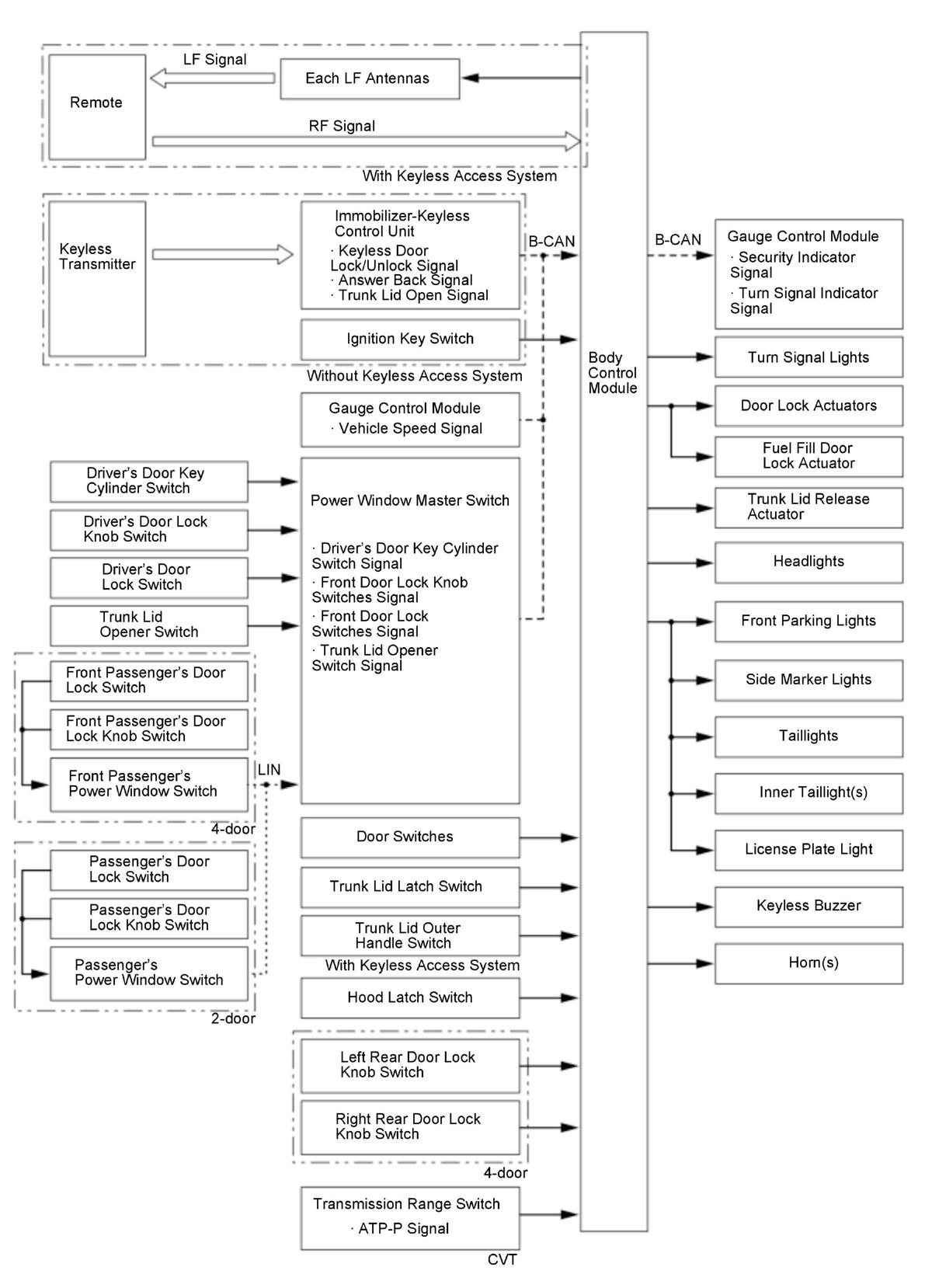

Keyless/Power Door Locks/Security System Description - System Diagram (2/4-door)

For locations of each component on the vehicle, refer to the Component Location Index

Courtesy of HONDA, U.S.A., INC.
