Engine Start/Stop Switch Test: Test

Driver's Dashboard Switch Panel - Remove
Engine Start/Stop Switch - Test
Switch Test

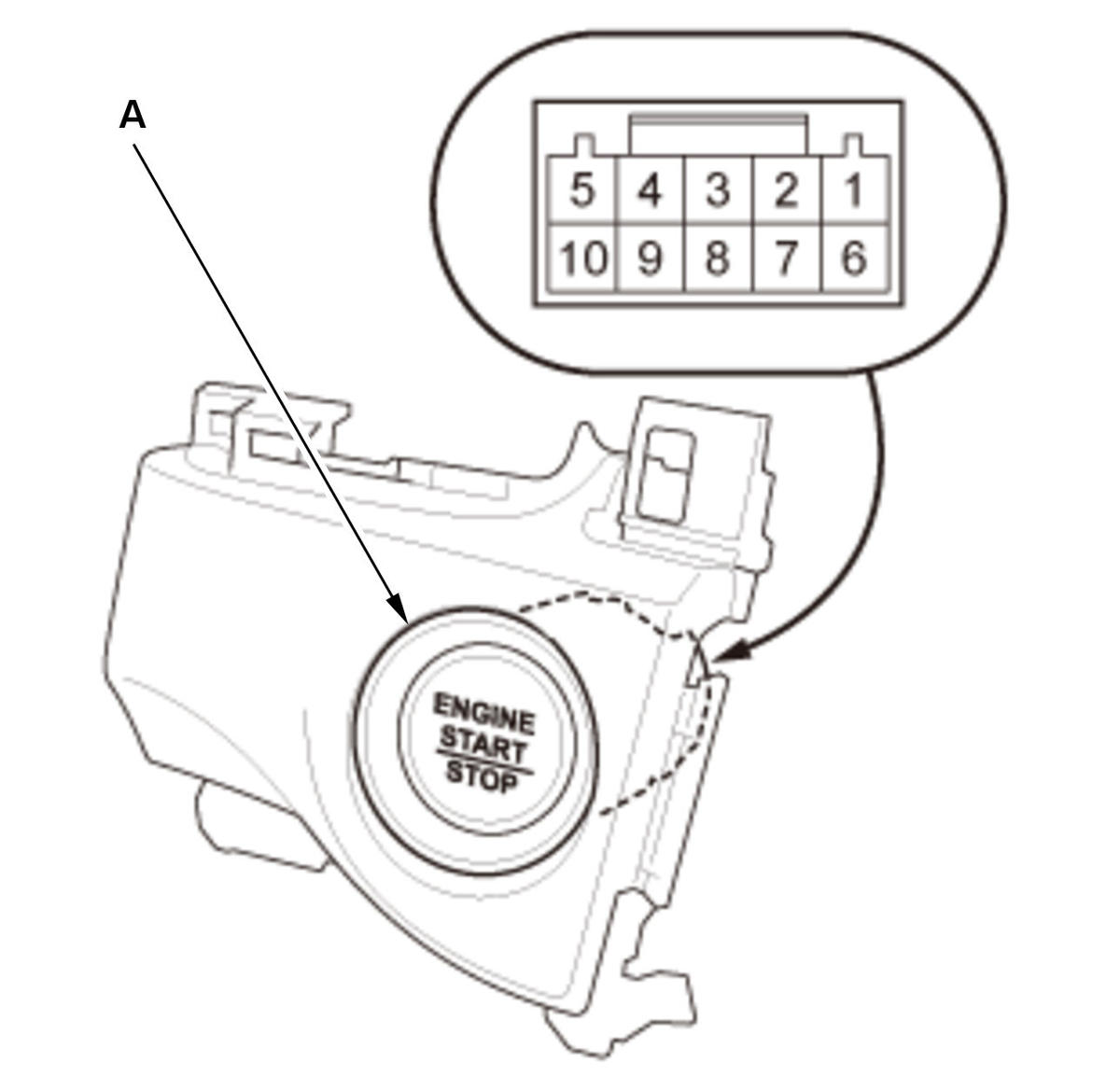

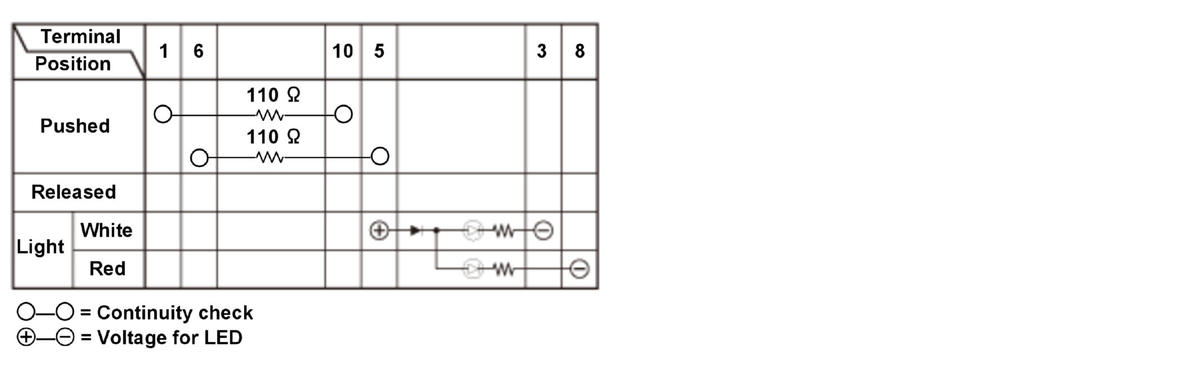

1. Check the engine start/stop switch (A) according to the table.
NOTE:
- When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the engine start/stop switch .

LF Antenna Test

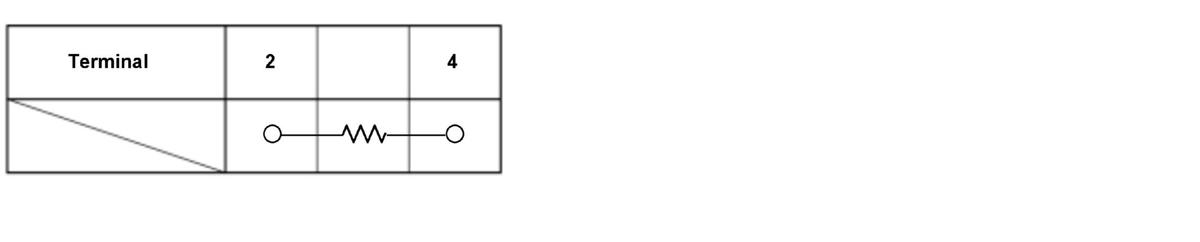

3. Check for continuity between the terminals according to the table. There should be continuity.

Courtesy of HONDA, U.S.A., INC.

4. If the continuity is not as specified, replace the engine start/stop switch .
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
