Park Pin Switch Test: Test

  1. Center Console - Remove
  2. Park Pin Switch - Test
    GHH411568GHH411569Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH411568GHH411569Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

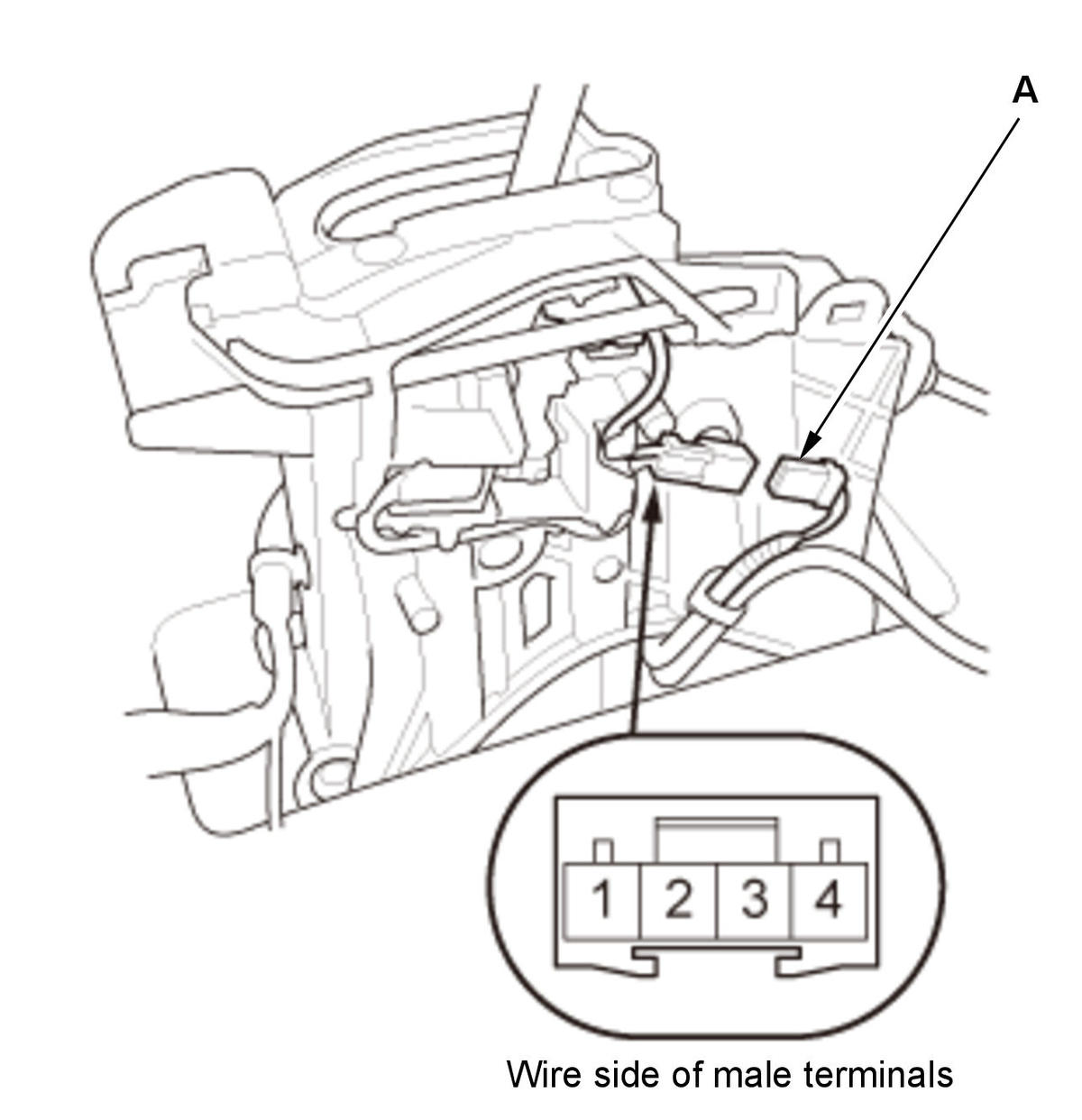

    		 1. Disconnect the connector (A).

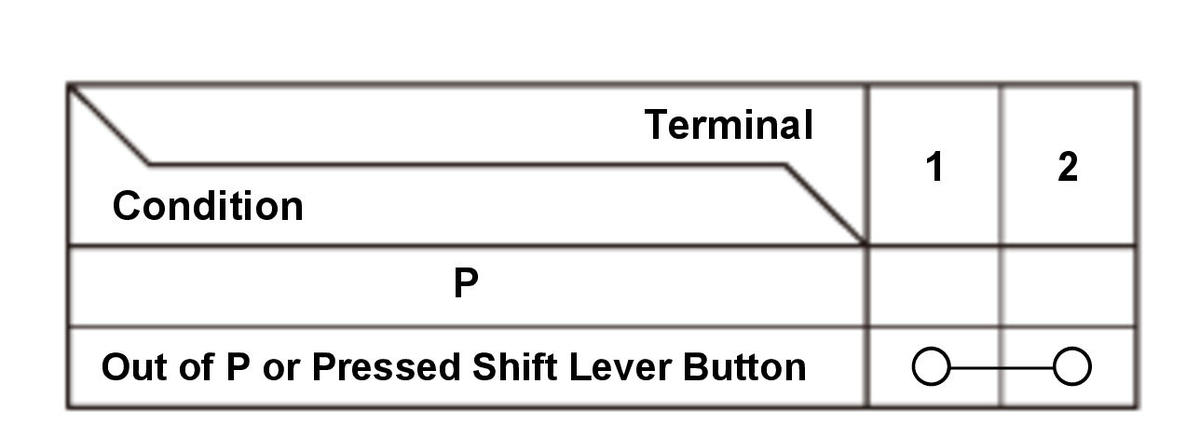

    2. Check for continuity between the terminals in each shift lever condition according to the table.

    3. If the continuity is not as specified, check the shift cable adjustment

    If the cable adjustment is OK, the park pin switch is faulty; replace the shift lock solenoid/park pin switch .
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
