Relay and Control Unit Locations

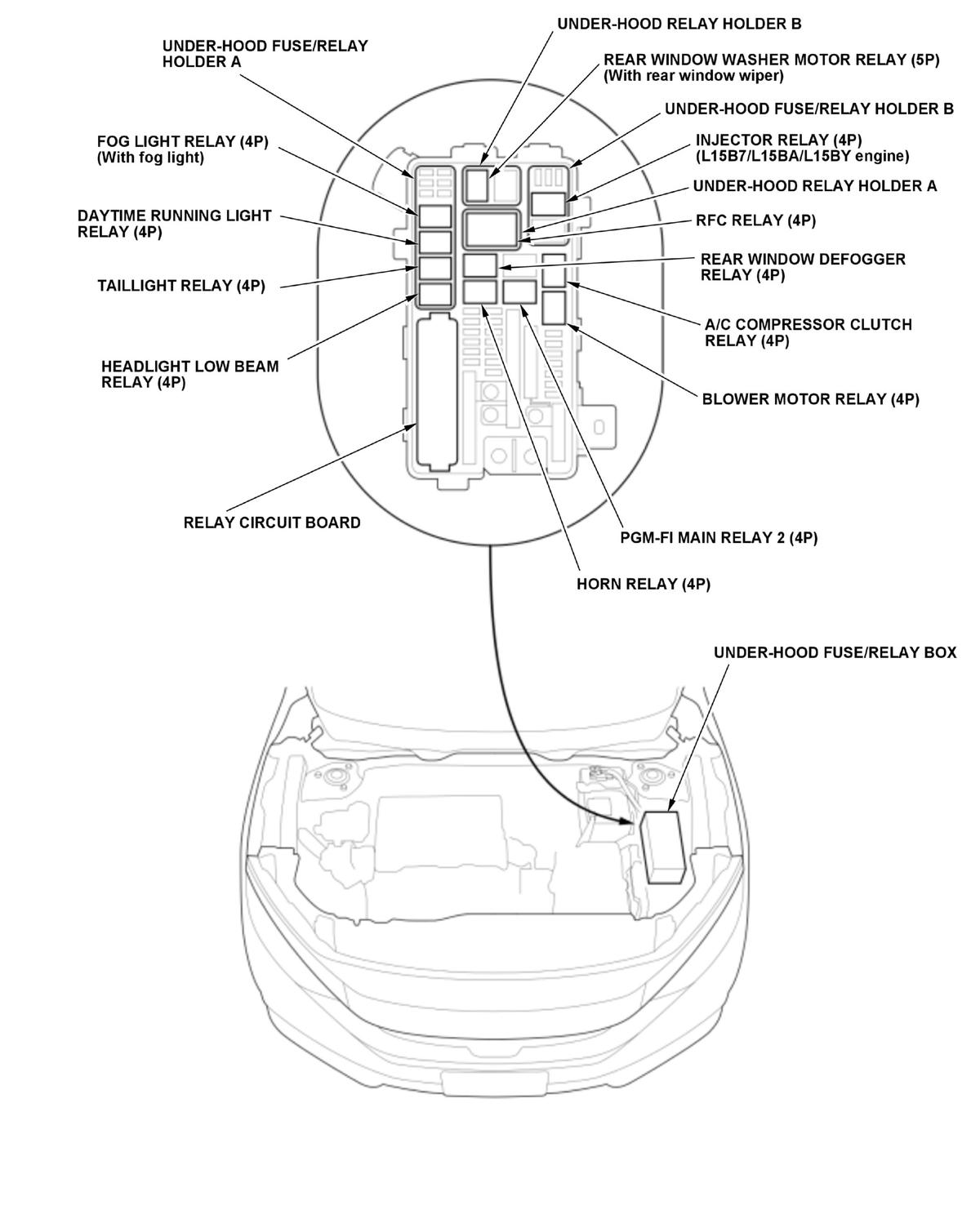

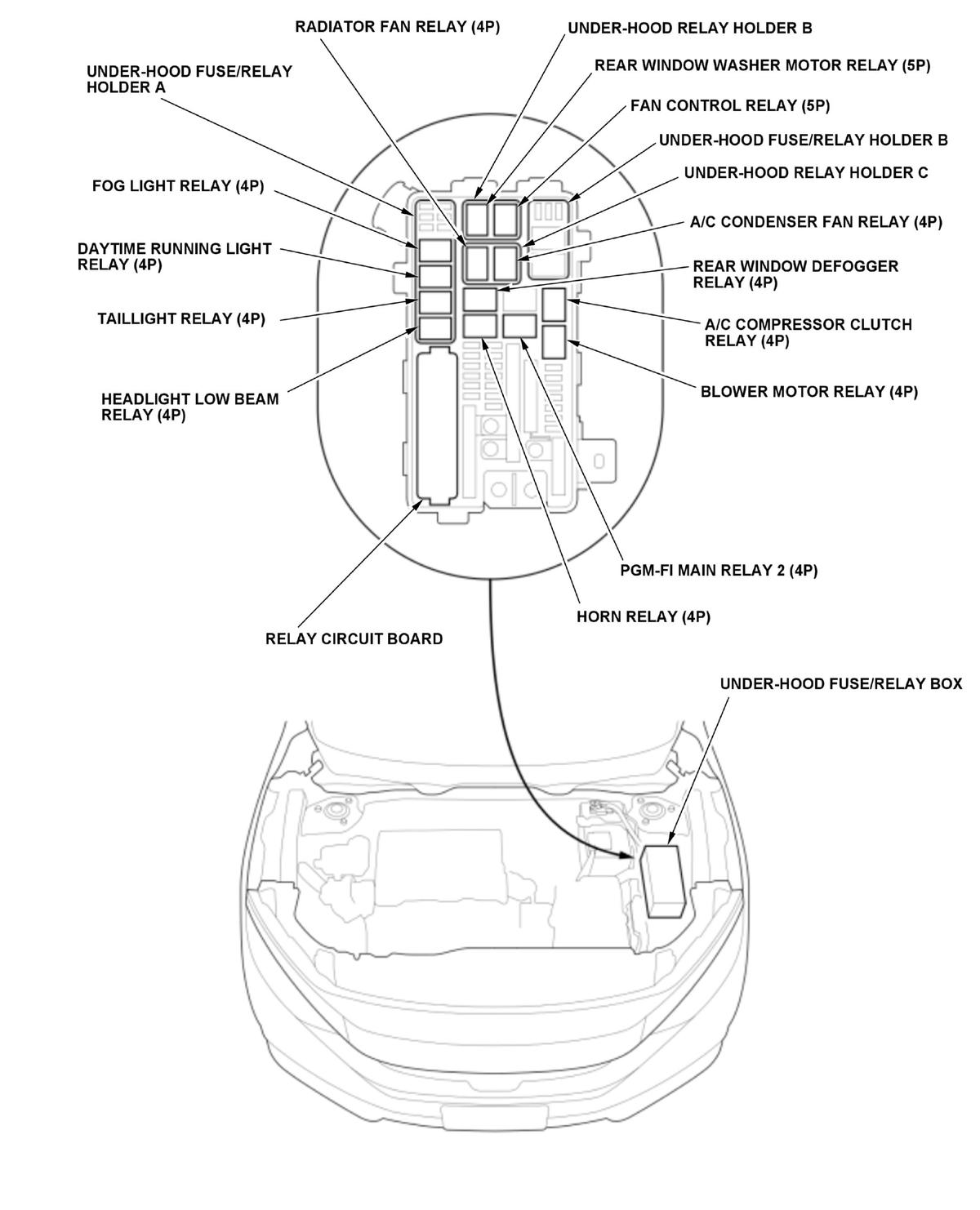

Engine Compartment - 1/4Except K20C1 Engine

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 2/4K20C1 Engine

Courtesy of HONDA, U.S.A., INC.

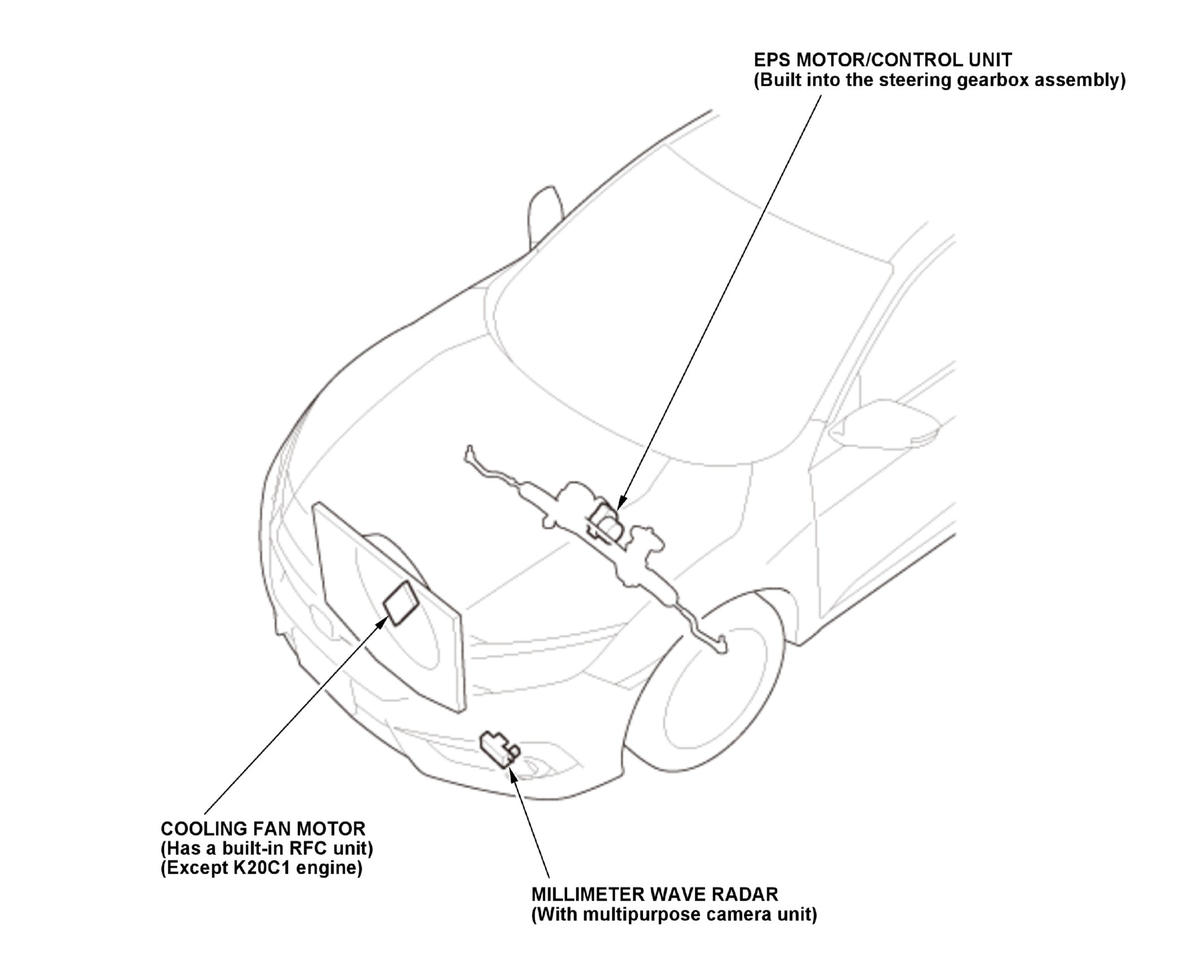

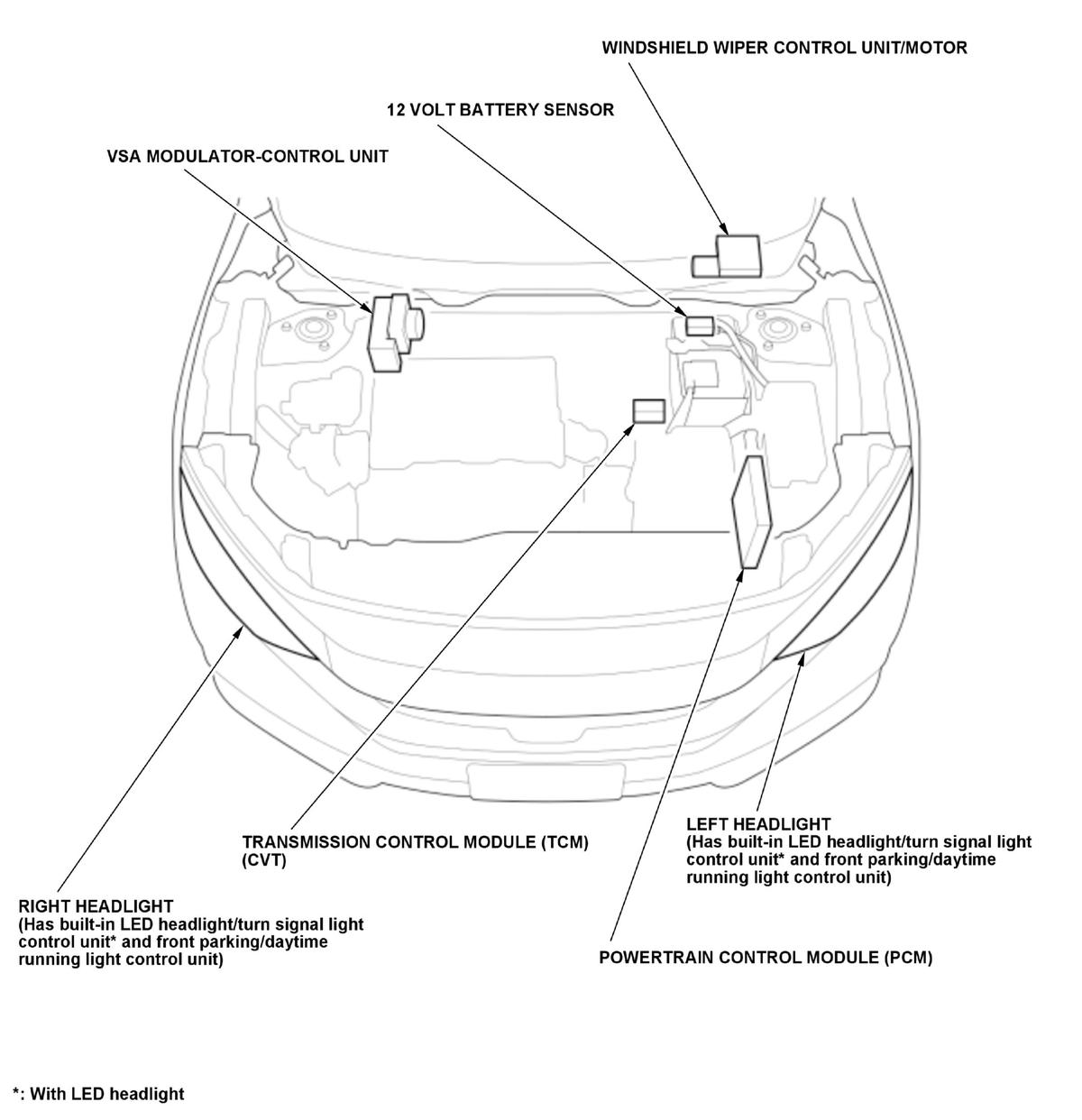

Engine Compartment - 3/4

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 4/4

Courtesy of HONDA, U.S.A., INC.

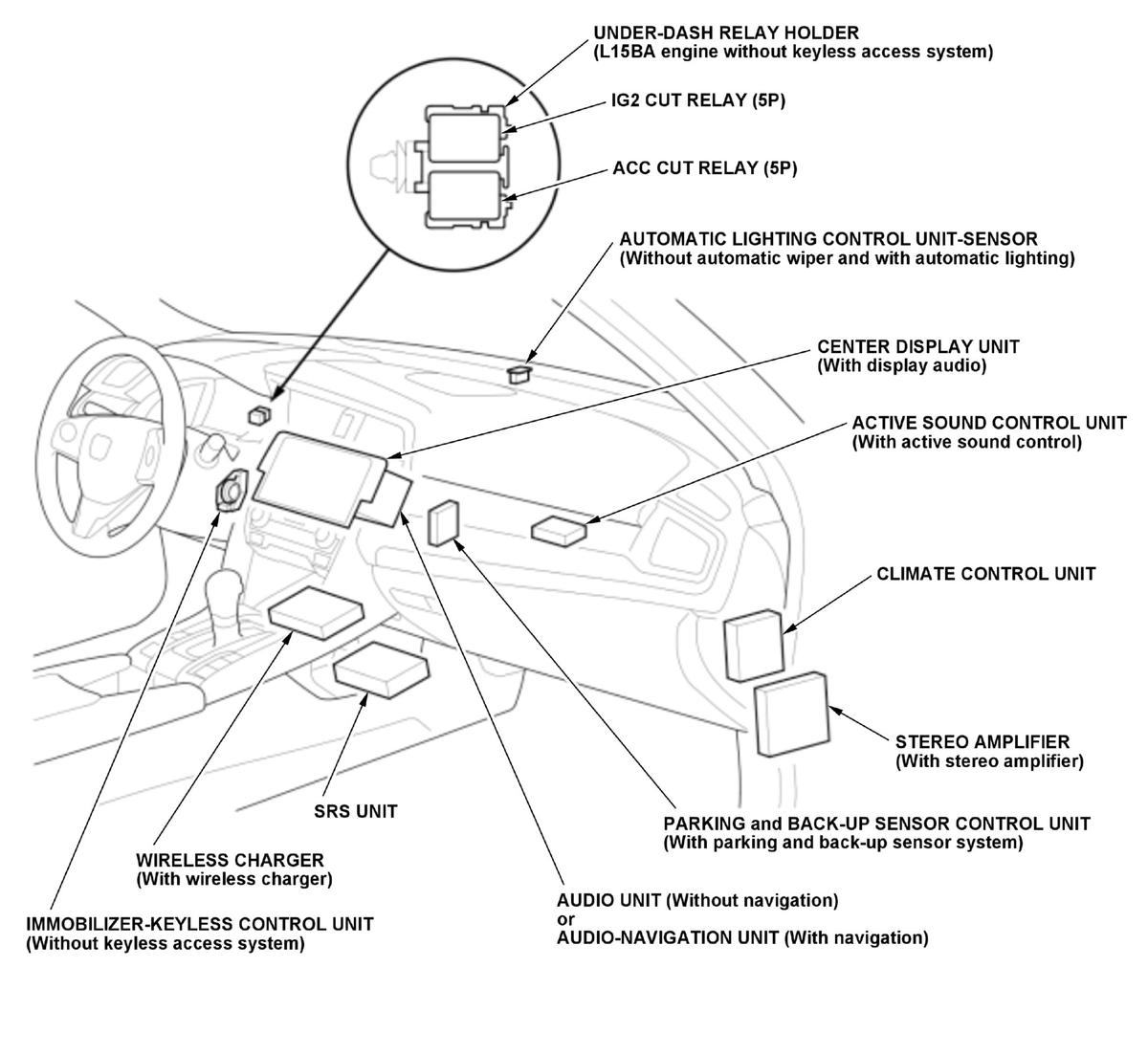

Dashboard - 1/2

Courtesy of HONDA, U.S.A., INC.

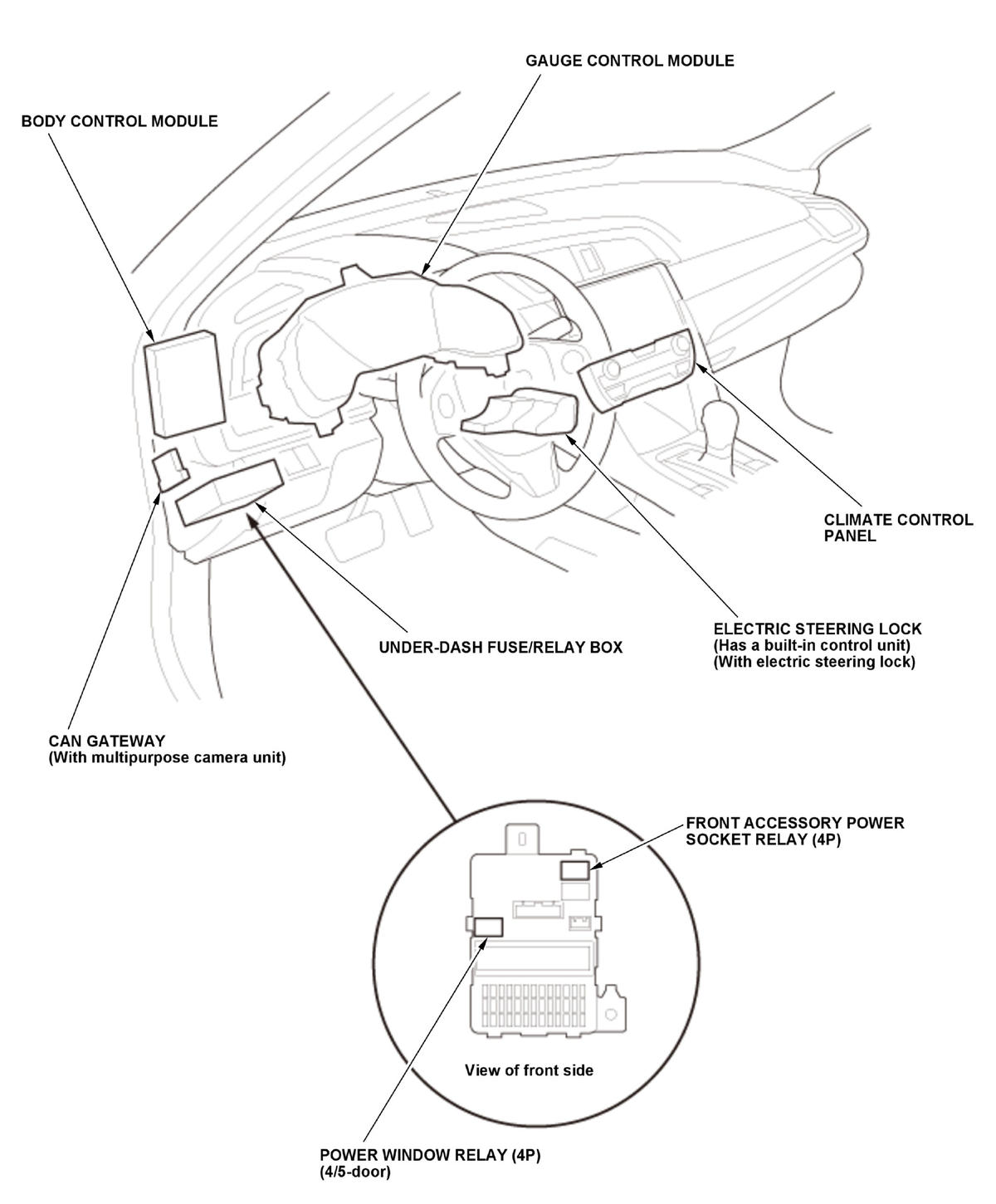

Dashboard - 2/2

Courtesy of HONDA, U.S.A., INC.

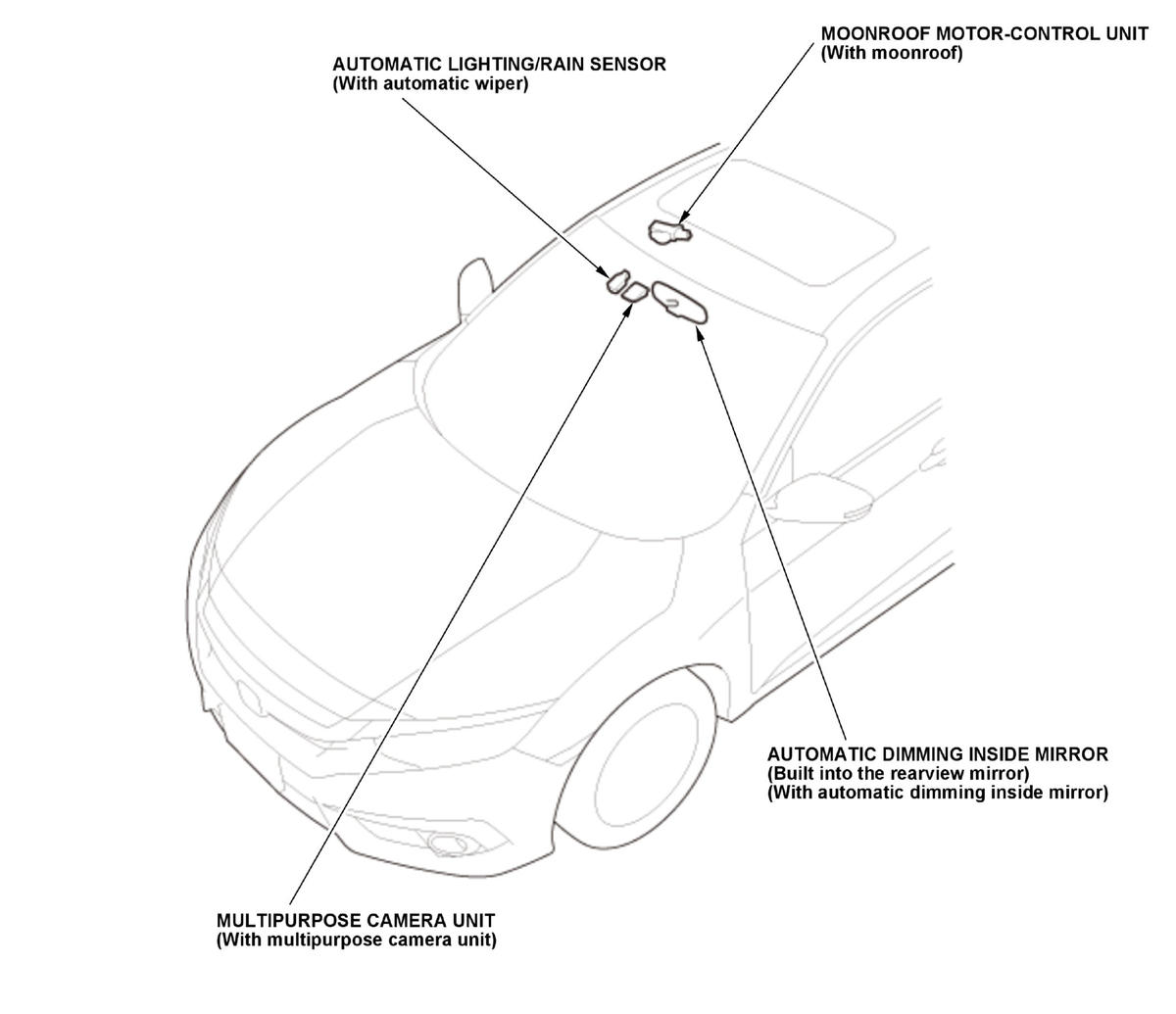

Roof

Courtesy of HONDA, U.S.A., INC.

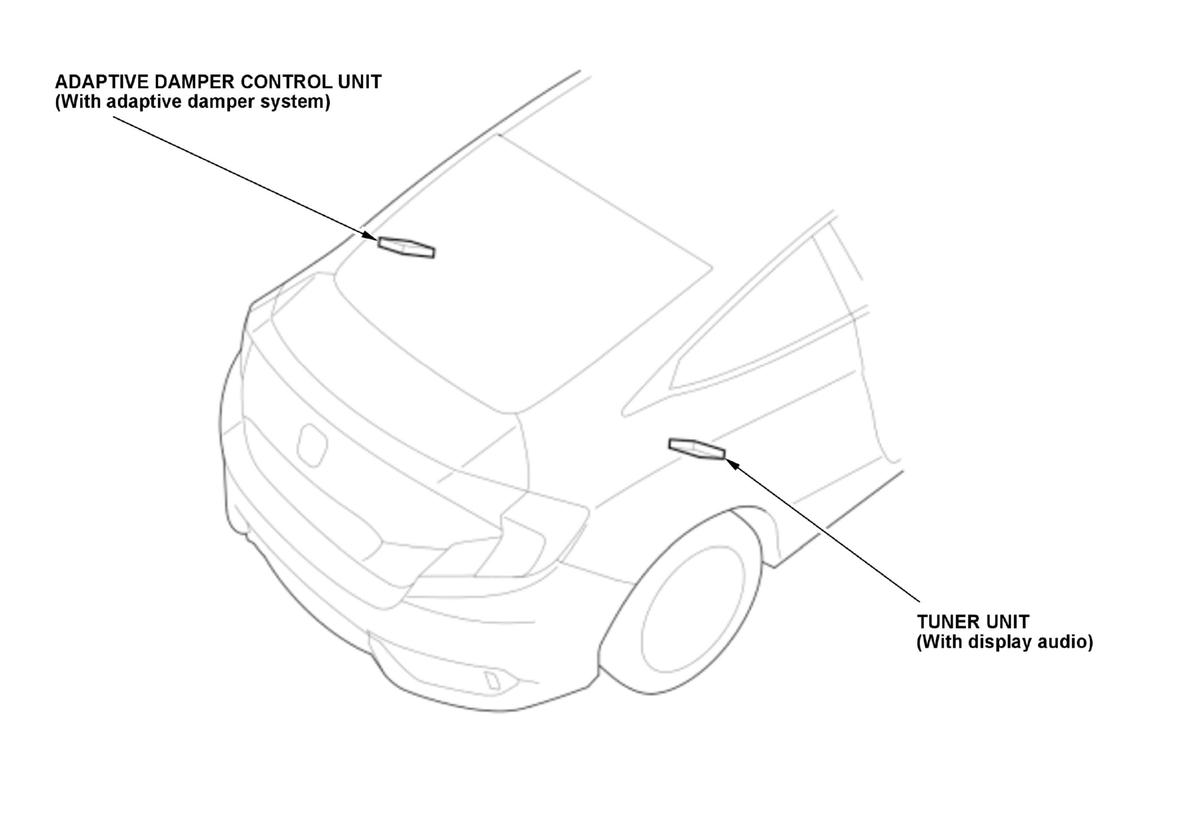

Rear - 1/32-Door

Courtesy of HONDA, U.S.A., INC.

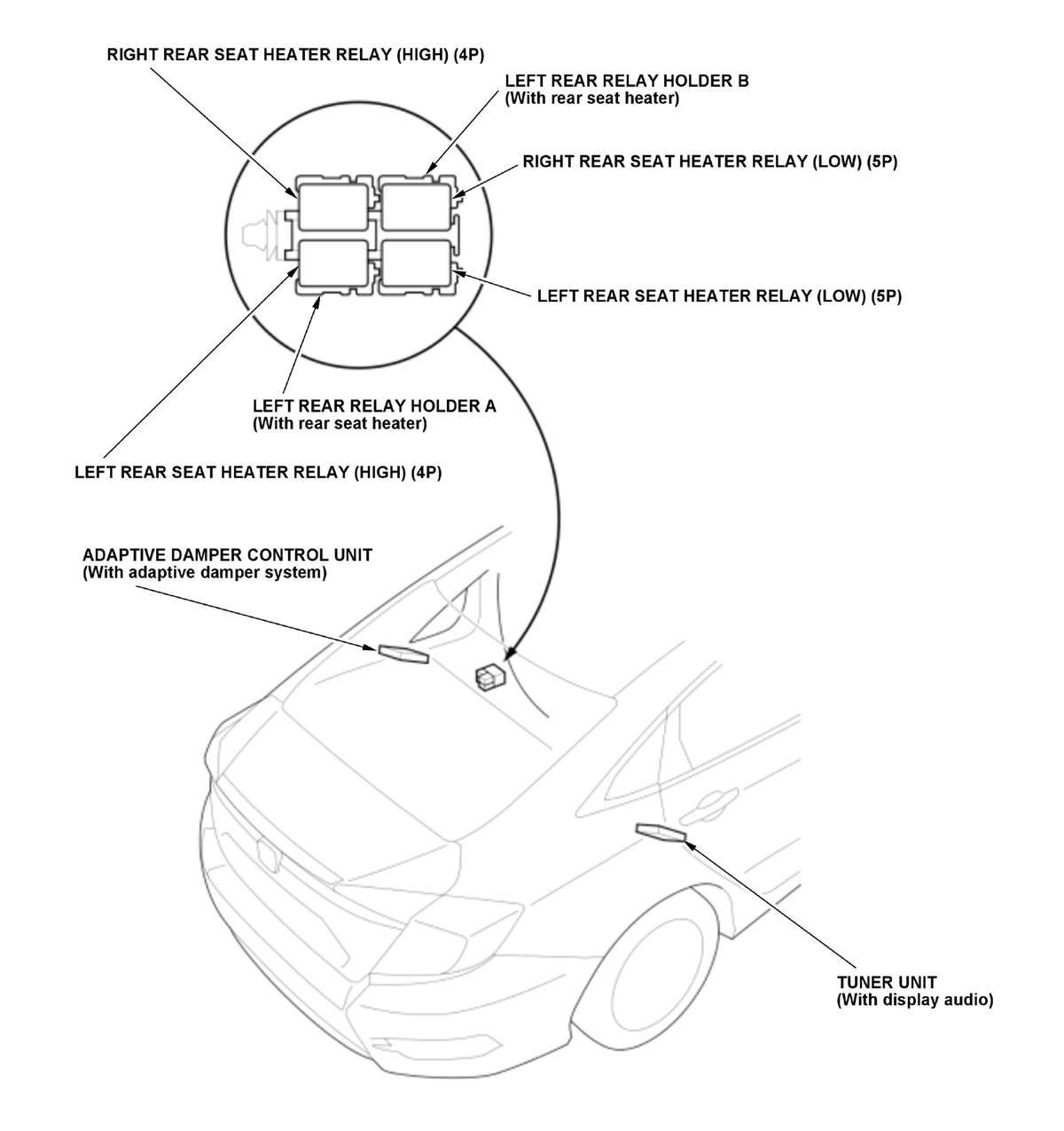

Rear - 2/34-Door

Courtesy of HONDA, U.S.A., INC.

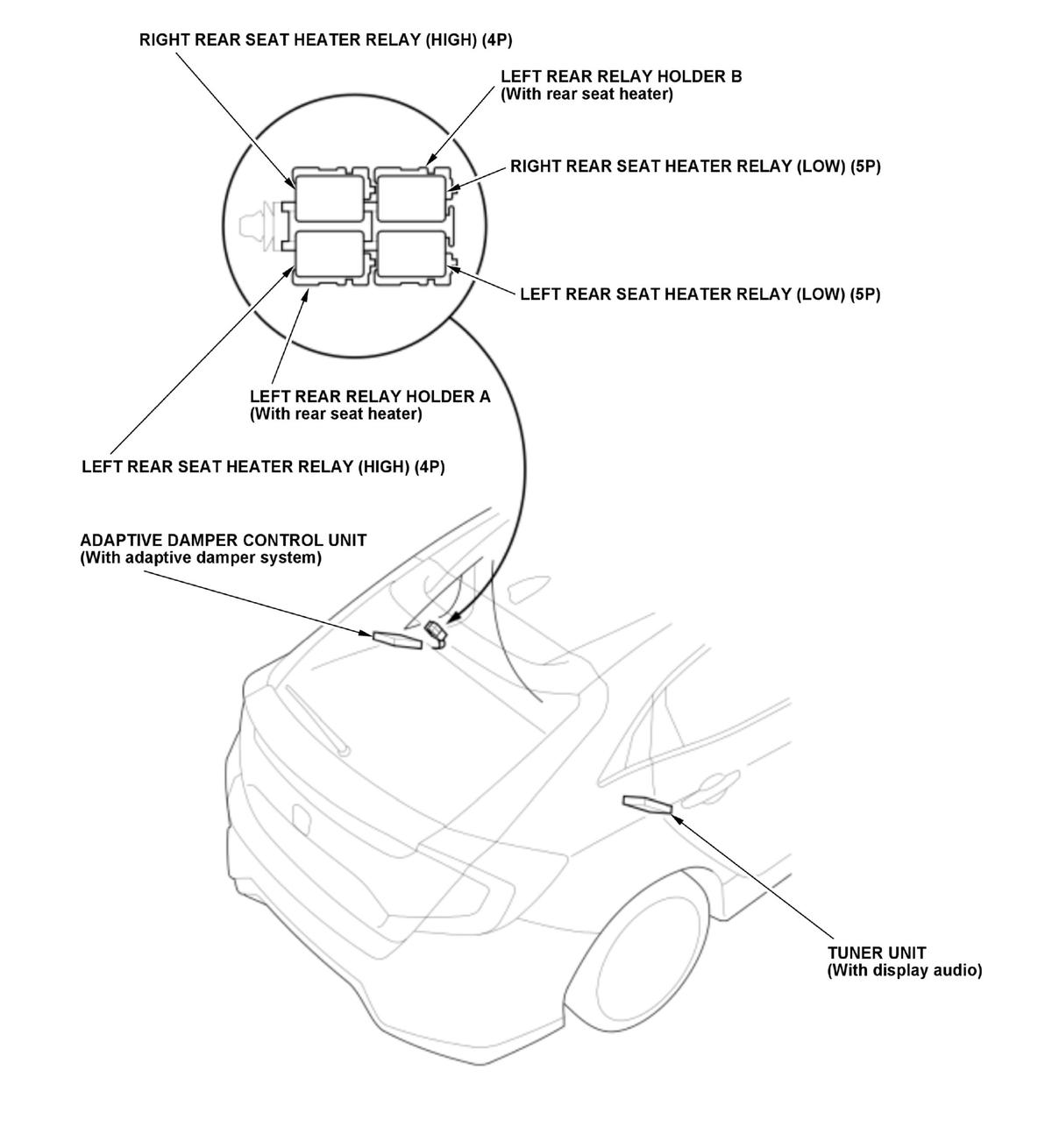

Rear - 3/35-Door

Courtesy of HONDA, U.S.A., INC.

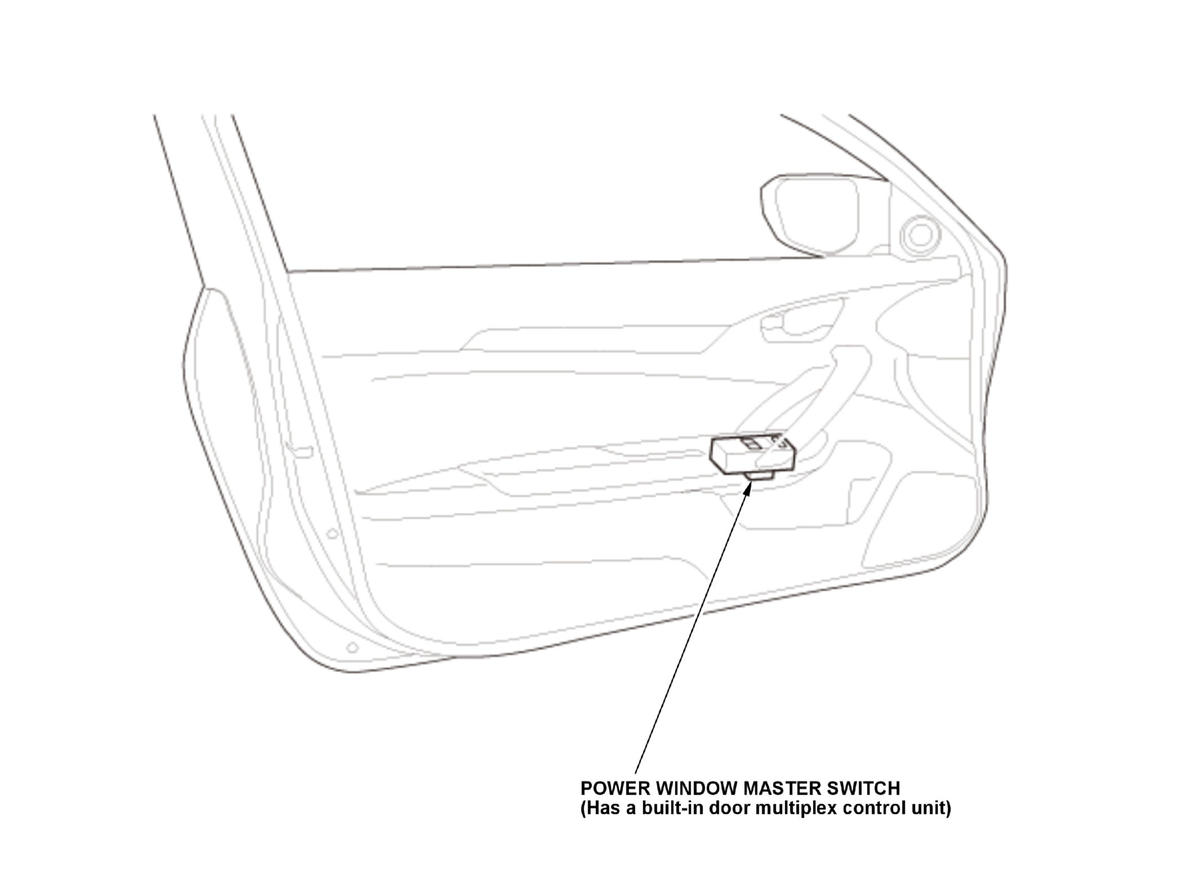

Door - 1/4 (Driver's) 2-Door

Courtesy of HONDA, U.S.A., INC.

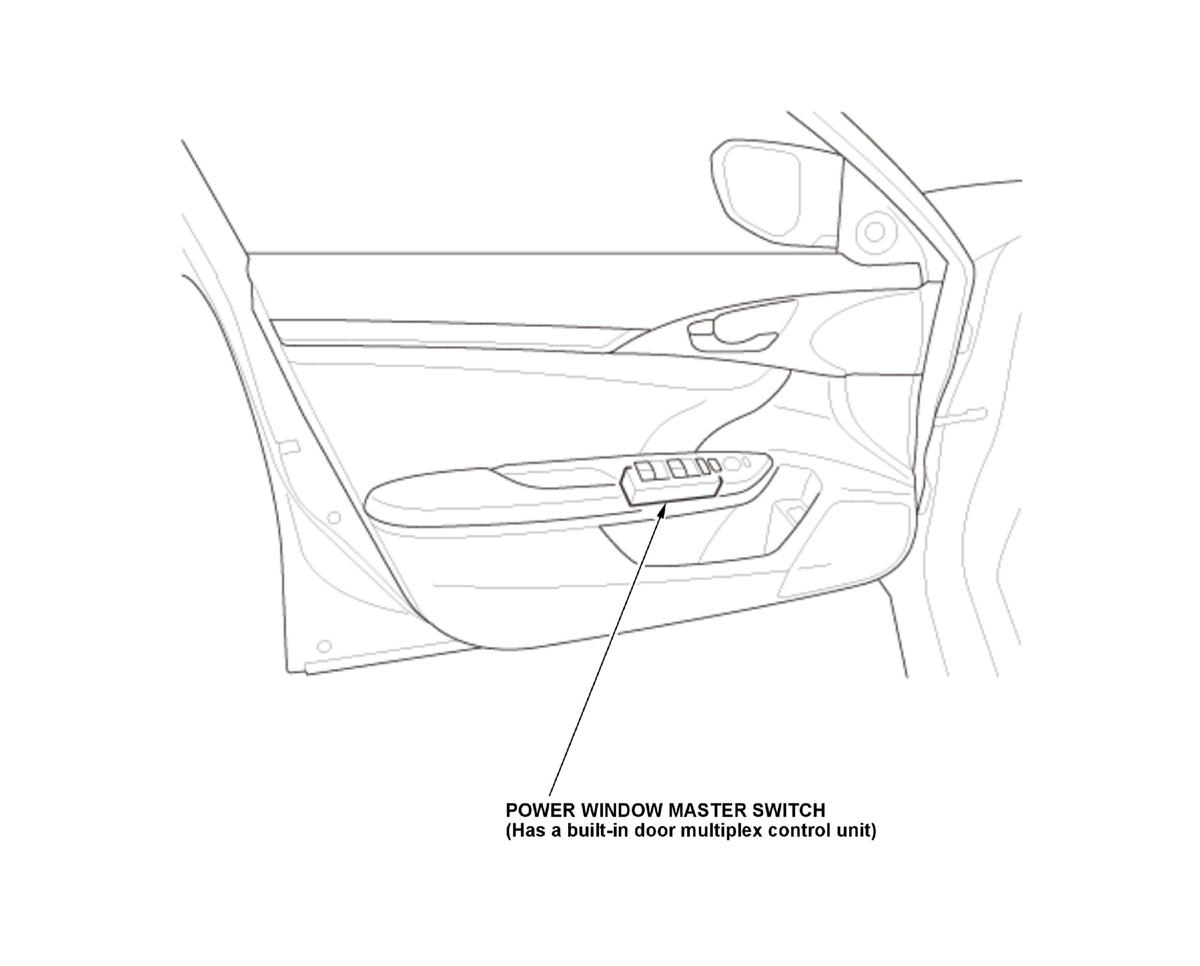

Door - 2/4 (Driver's) 4/5-Door

Courtesy of HONDA, U.S.A., INC.

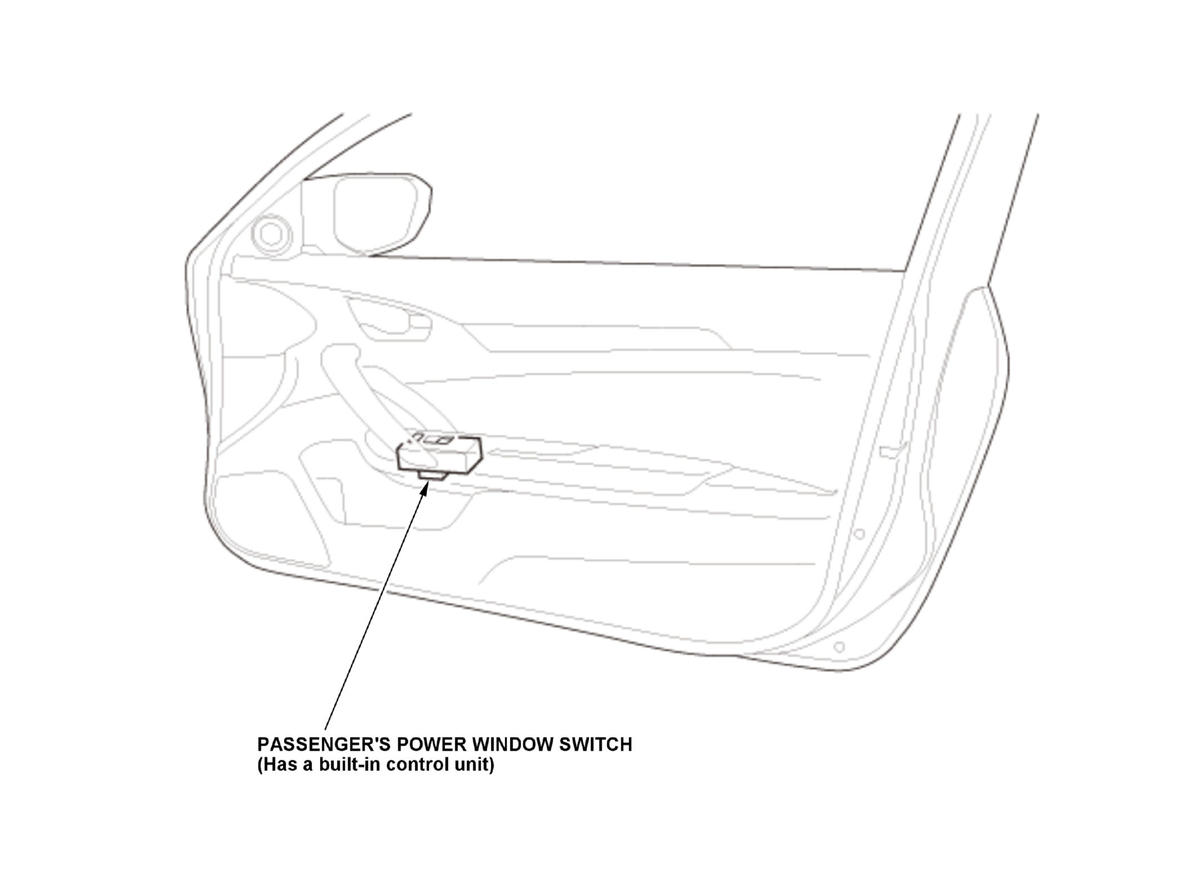

Door - 3/4 (Passenger's) 2-Door

Courtesy of HONDA, U.S.A., INC.

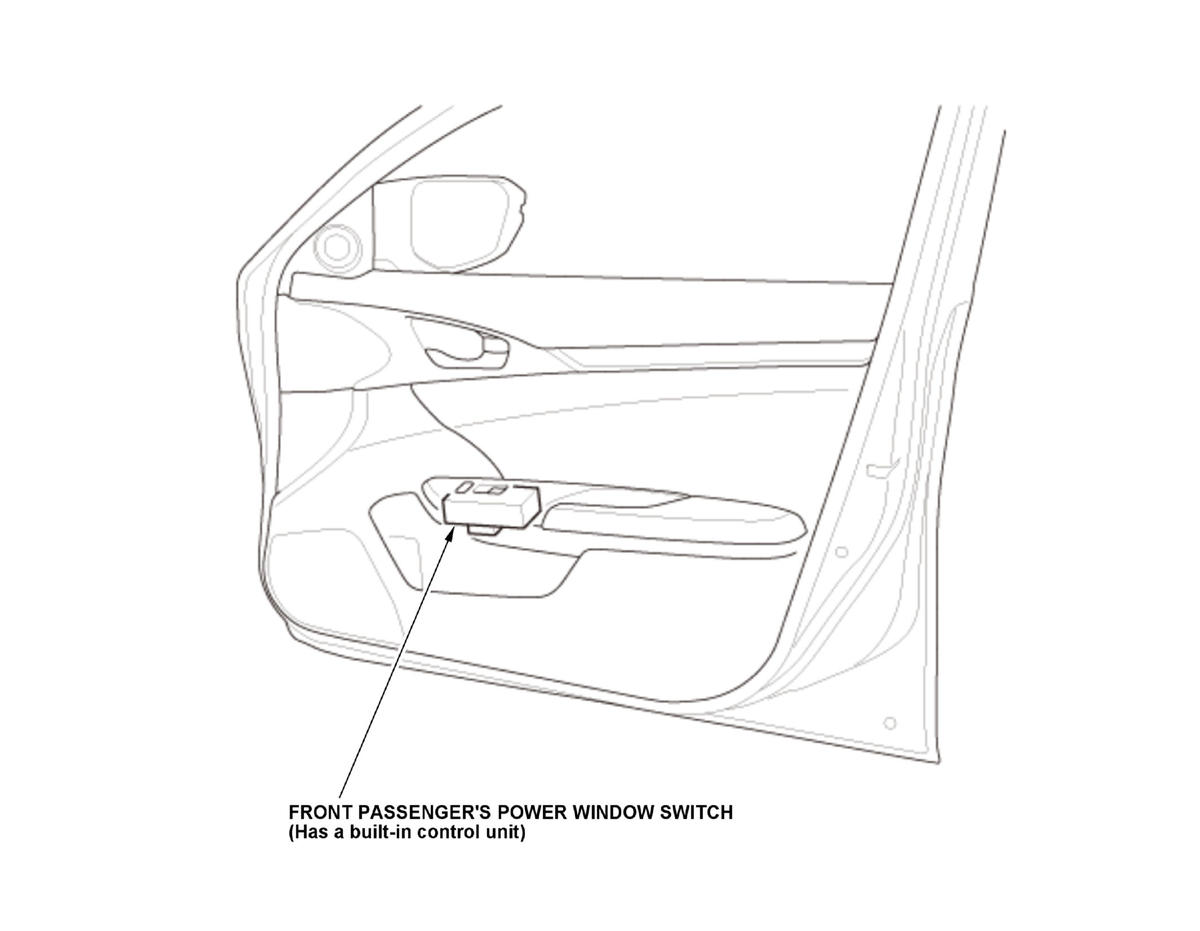

Door - 4/4 (Front Passenger's) 4/5-Door

Courtesy of HONDA, U.S.A., INC.

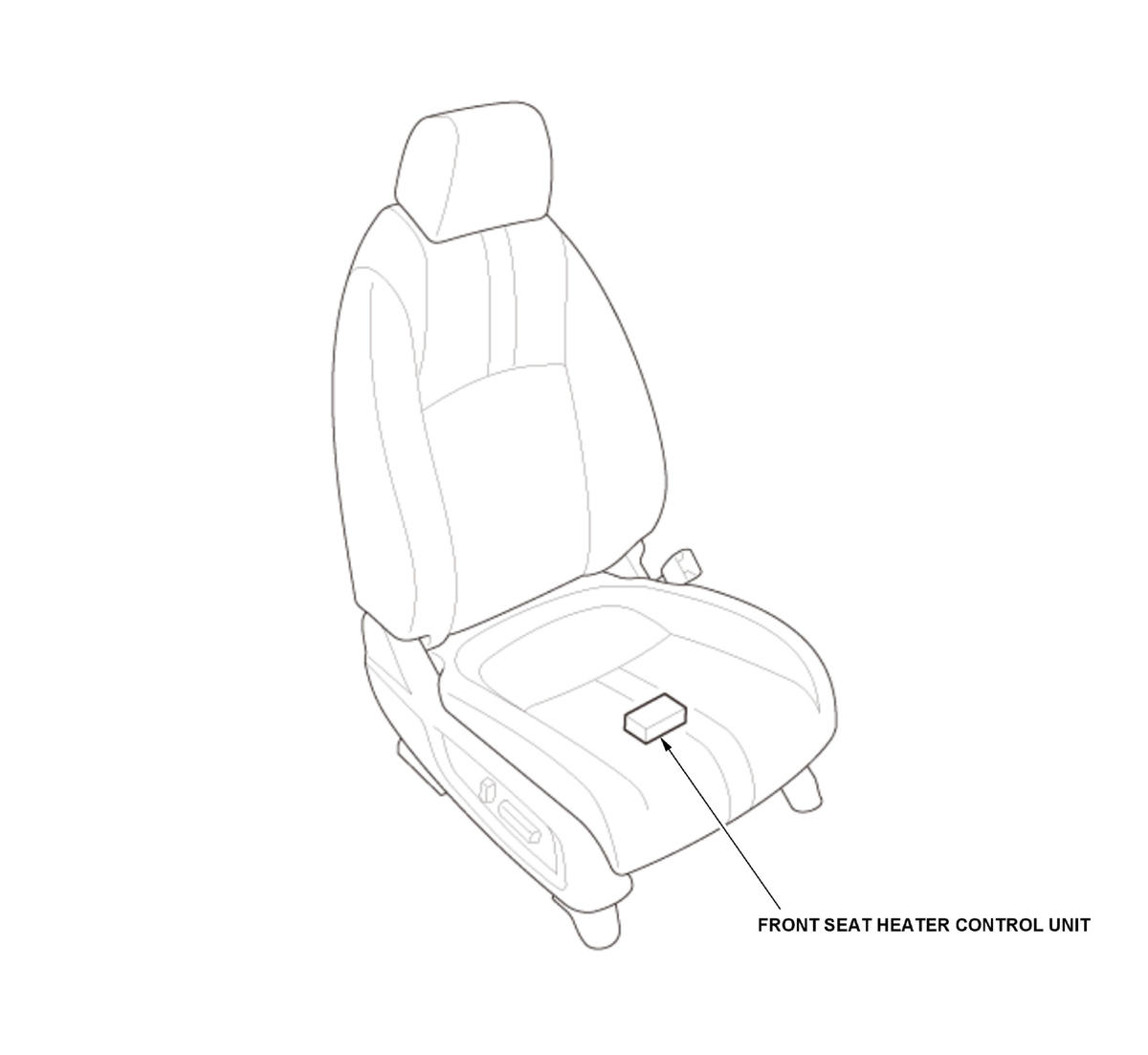

Seat (Front Passenger's) With Front Seat Heater

Courtesy of HONDA, U.S.A., INC.

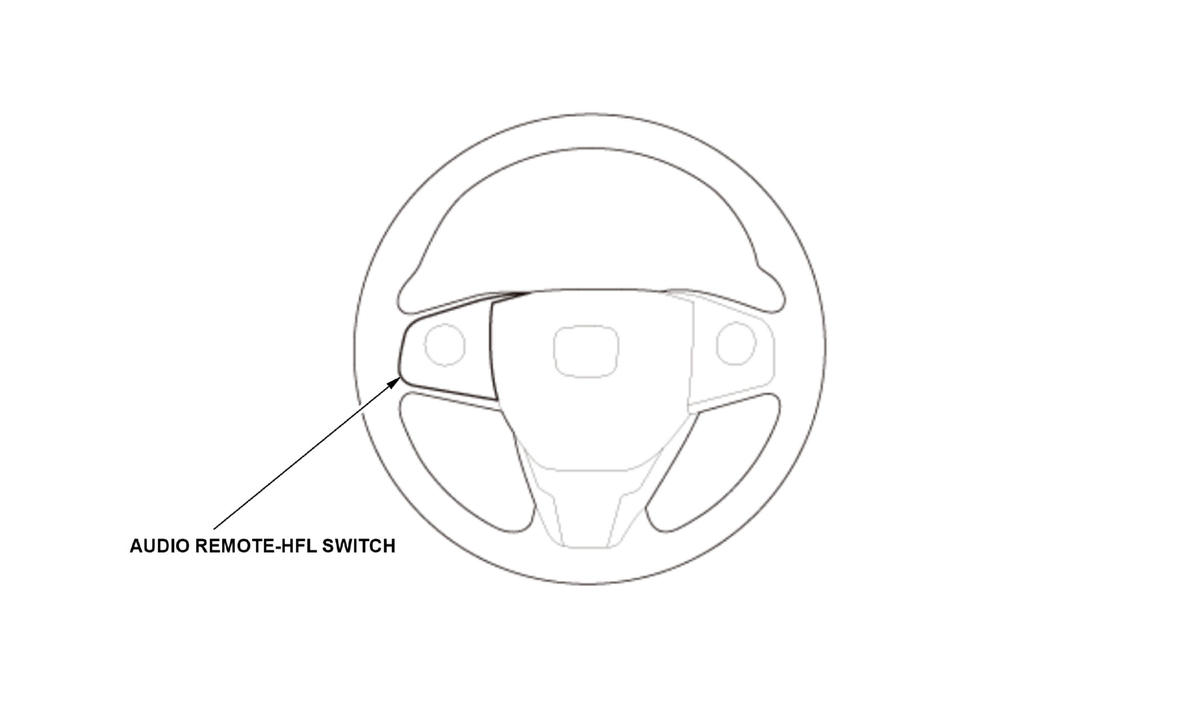

SteeringWith Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.
