Engine Removal and Installation: Removal

NOTE:

• Use fender covers to avoid damaging painted surfaces.
• To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
• Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.

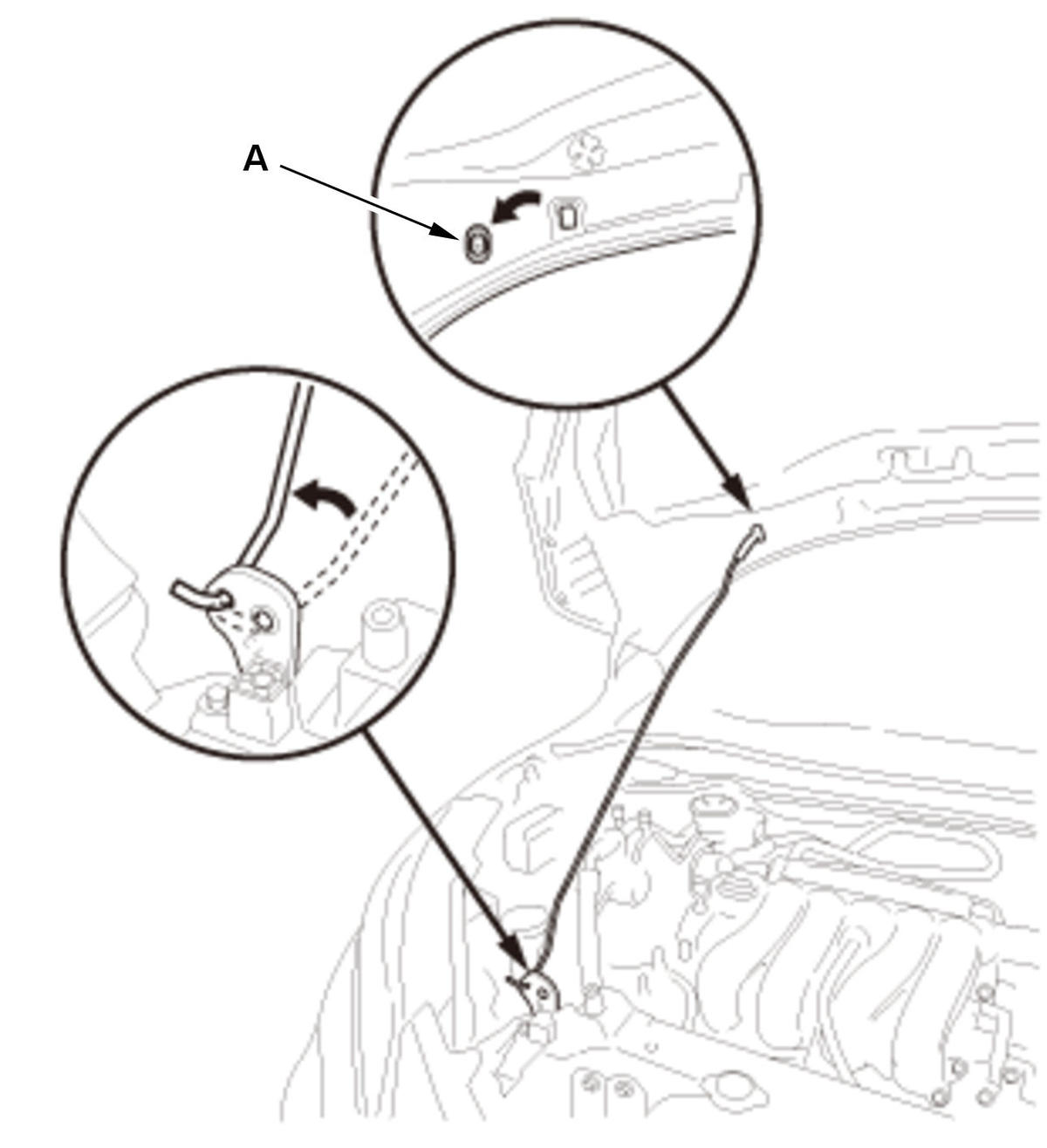

1. Hood - Wide Open

   Courtesy of HONDA, U.S.A., INC.

   1. Open the hood, and remove the plug cap (A). 2. Change the hood support rod mounting position. 3. Secure it with the hood support rod in the wide-open position.

2. Fuel Pressure - Relieve

   NOTE:  After relieving the fuel pressure, do not connect the quick-connect fitting.

3. 12 Volt Battery Terminal - Disconnect

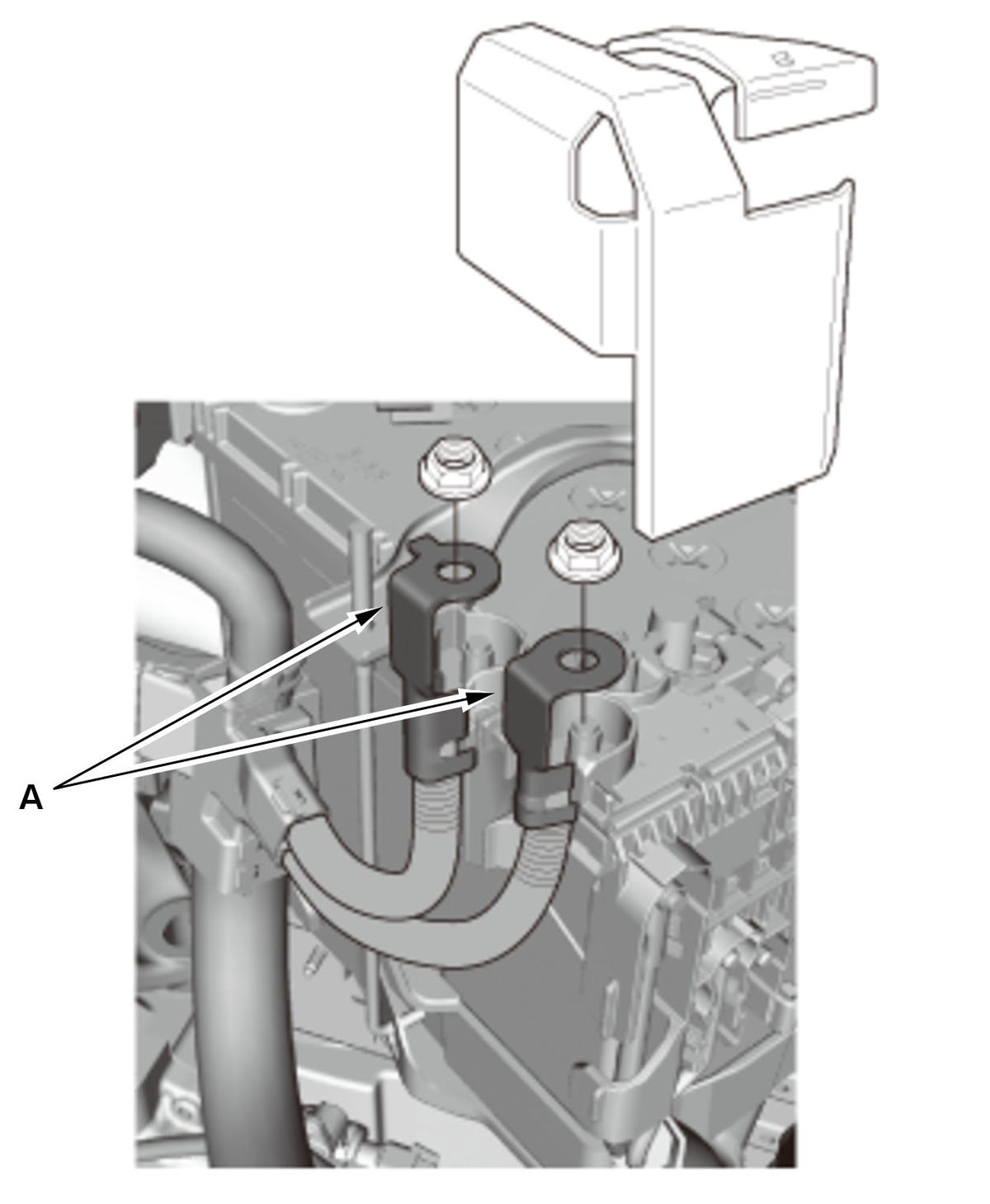

4. Positive Cable (12 Volt Battery Terminal Fuse Box) - Disconnect

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the cover. 2. Disconnect the positive cables (A).

5. 12 Volt Battery - Remove
6. Front Grille Cover - Remove
7. Air Cleaner - Remove
8. Intake Air Duct - Remove
9. Intake Air Resonator - Remove

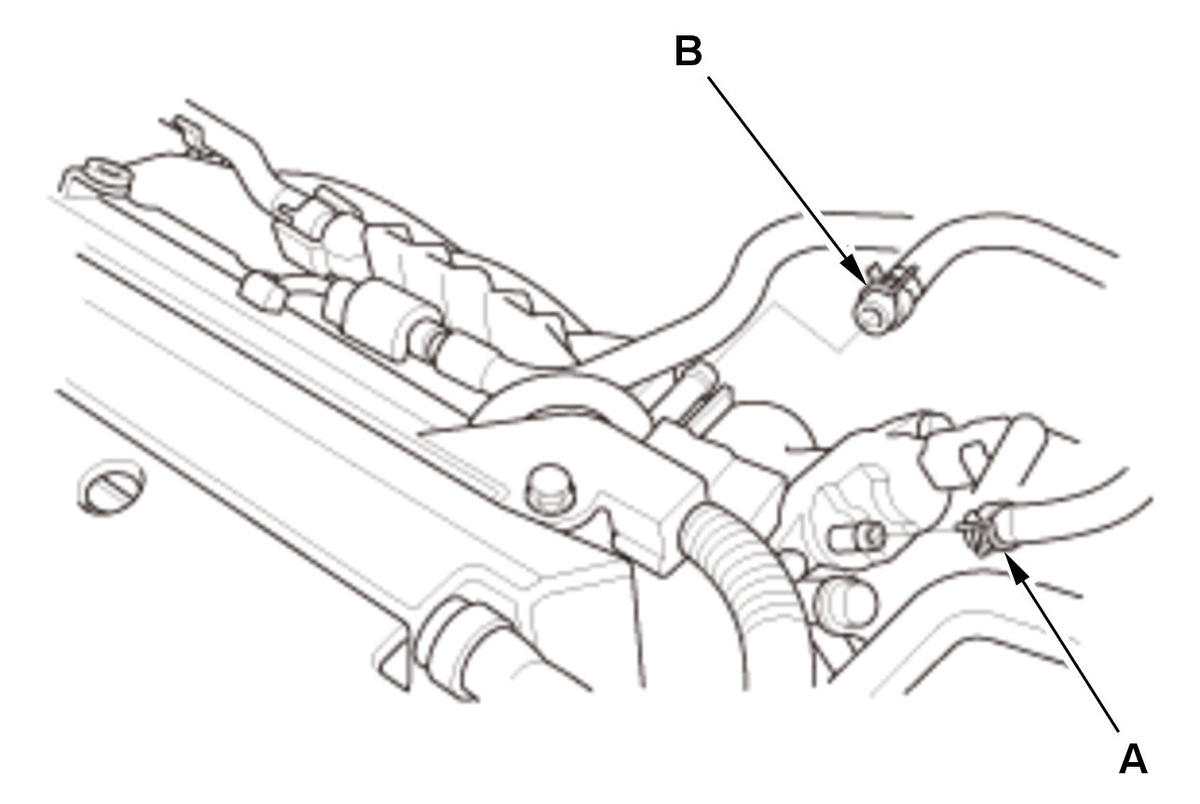

10. EVAP Canister Purge Hose and Brake Booster Vacuum Hose - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the EVAP canister purge hose (A) and the brake booster vacuum hose (B).

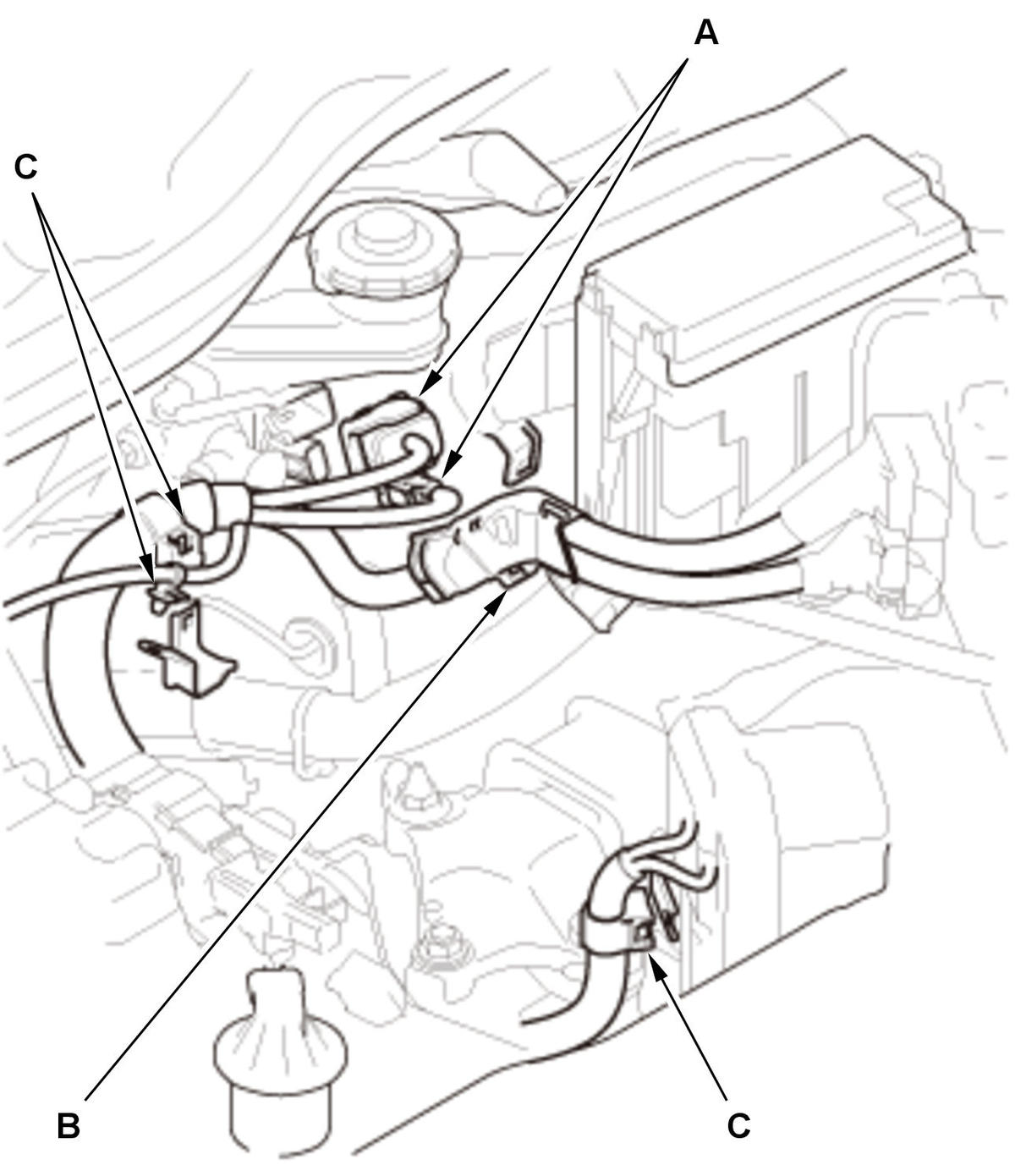

11. Connector (PCM) - Disconnect
12. Connector (Engine Wire Harness) - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the connectors (A). 2. Remove the harness holder clamp (B) and the harness clamps (C).

13. Change Wire Bracket - Remove (M/T)
14. Slave Cylinder - Move (M/T)

    NOTE:  Without disconnecting the clutch line.

15. Shift Cable (Transmission Side) - Disconnect (CVT)
16. Steering Joint - Disconnect

    NOTE:  Hold the steering wheel in the steering wheel holder tool.

17. Vehicle - Lift

    1. Raise and support the vehicle .

18. Front Wheel - Remove
19. Front Splash Shield and Engine Undercover (With Engine Undercover) - Remove
20. Drive Belt - Remove
21. A/C Pipe Clamp Bolt - Remove
22. Engine Coolant - Drain
23. Radiator - Remove
24. Engine Oil - Drain
25. Transmission Fluid - Drain

    1. Drain the transmission fluid: M/T CVT

26. Exhaust Pipe A - Remove
27. Front Stabilizer Link Ball Joint - Disconnect
28. Lower Arm Ball Joint - Disconnect
29. Tie-Rod End Ball Joint - Disconnect
30. Front Driveshaft - Remove
31. Propeller Shaft - Remove (AWD)
32. A/C Compressor - Move

    NOTE:

    • Do not disconnect the A/C hoses.
    • Do not bend the A/C hoses excessively.
    • Disconnect the connector at the same time.
    • Hang the A/C compressor with a wire tie.
33. Torque Rod - Remove

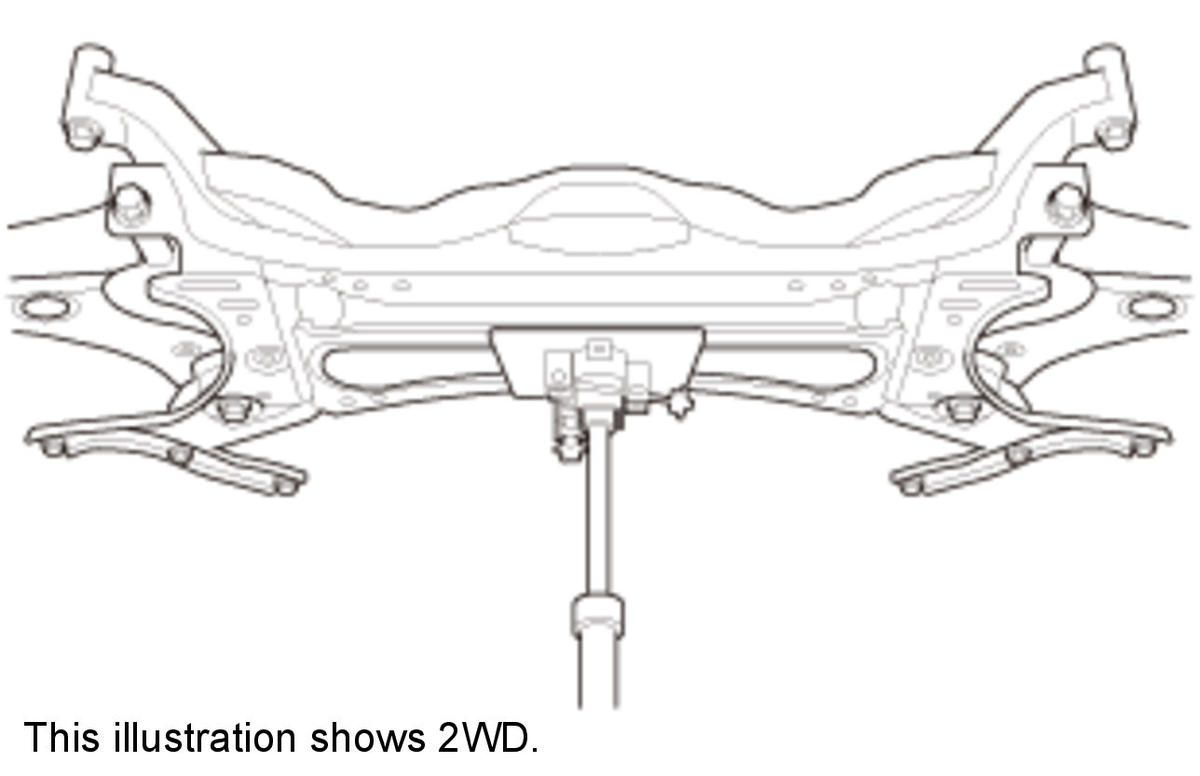

34. Front Subframe - Support

    Courtesy of HONDA, U.S.A., INC.

    1. Support the front subframe with a transmission jack.

35. Front Subframe - Remove
36. Vehicle - Lift

    1. Lower the vehicle.

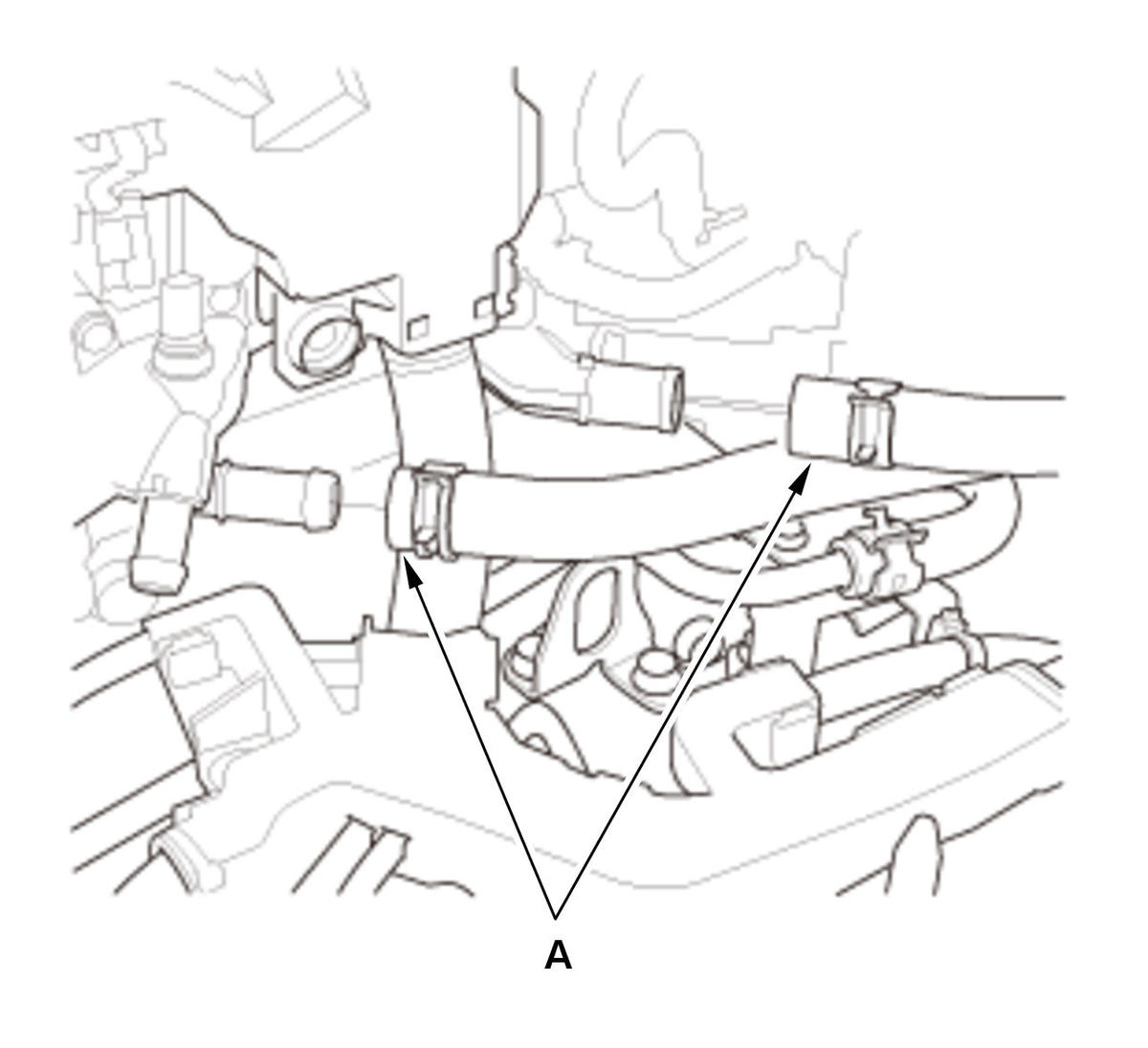

37. Heater Hose - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the heater hoses (A).

38. Engine - Support

    1. Lift and support the engine with a jack and a wood block under the oil pan.

39. Side Engine Mount - Remove

    NOTE:  Do not remove the bolt that tighten the side engine mount and the side engine mount bracket.

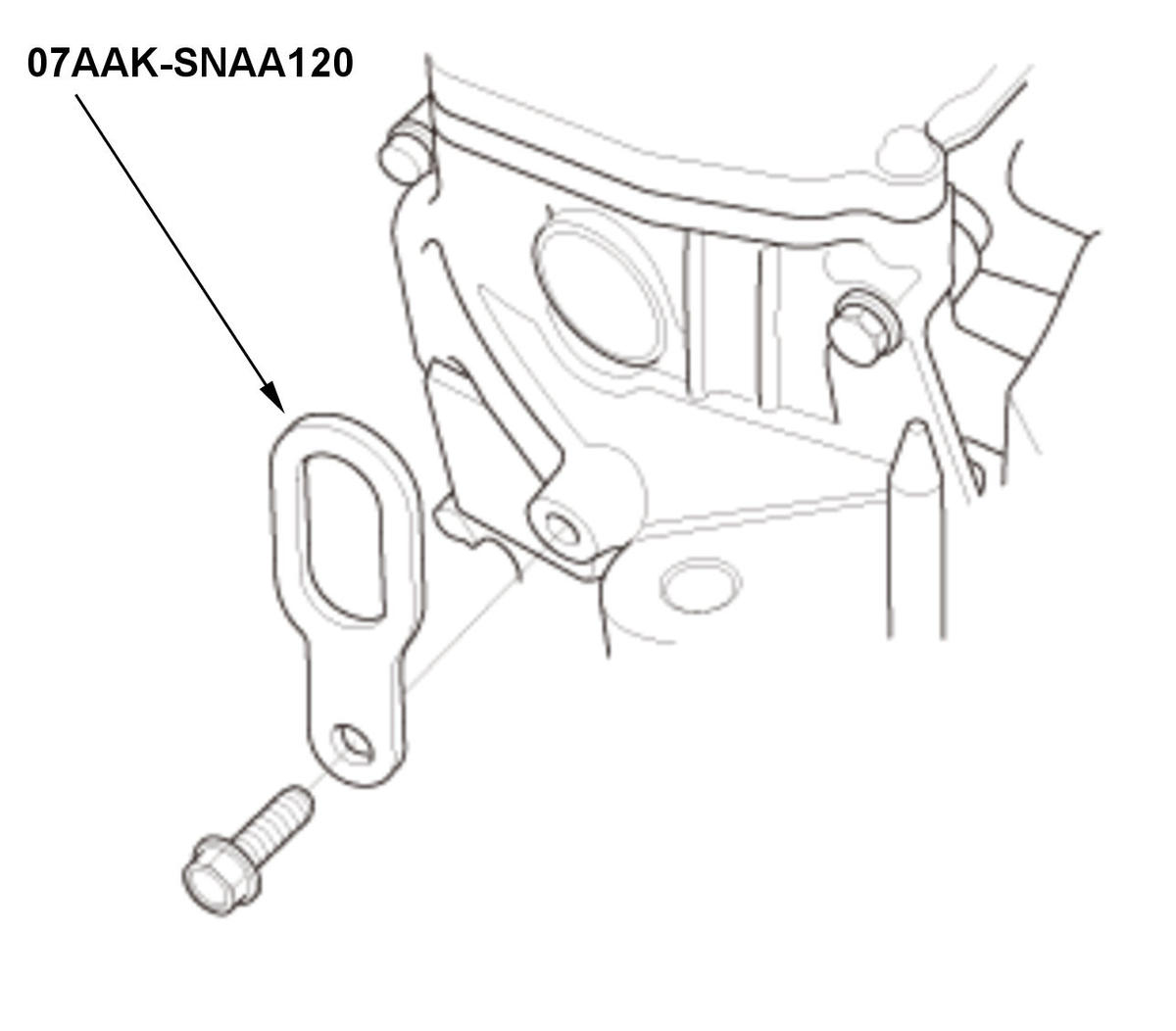

40. Universal Lifting Eyelet - Install

    Courtesy of HONDA, U.S.A., INC.

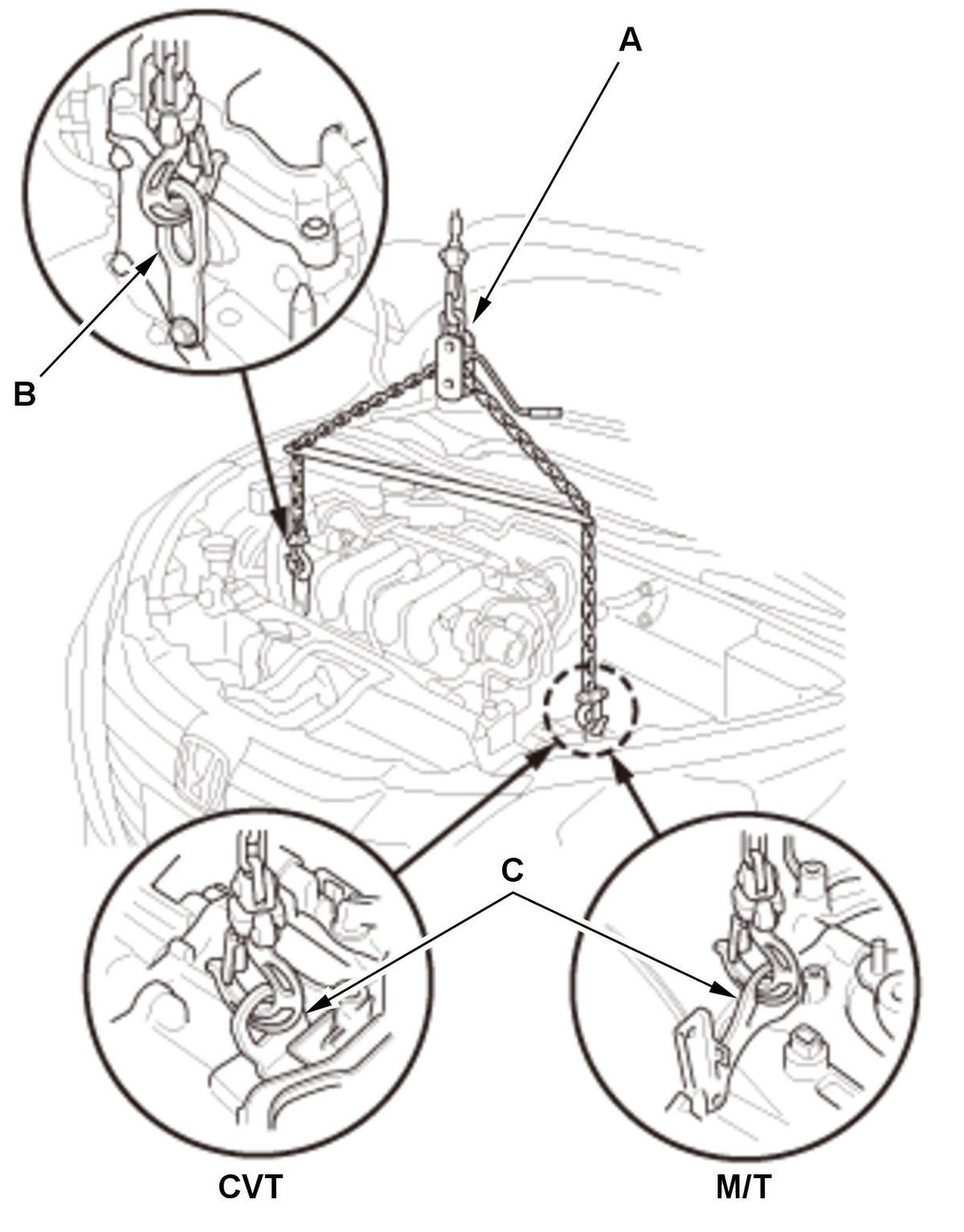

41. Chain Hoist - Install

    Courtesy of HONDA, U.S.A., INC.

    1. Attach the chain hoist (A) to the universal lifting eyelet (B) and the transmission hanger (C), then lift the engine/transmission until it is securely supported by the chain hoist.

42. Transmission Mount Bracket Mounting Bolt and Nut - Remove
43. Engine - Remove

    1. Check that the engine/transmission is completely free of the vacuum hoses, the fuel hoses, the coolant hoses, and the electrical wiring. 2. Slowly lower the engine/transmission about 150 mm (5.91 in). Check once again that all the hoses and the electrical wiring are disconnected and free from the engine/transmission, then lower it all the way and support it. 3. Remove the chain hoist from the engine/transmission. 4. Raise the vehicle, and remove the engine/transmission from under the vehicle.
