DTC P0976 (KA/Kc)
DTC P0976: Shift Solenoid Valve "B" Circuit Low
General Description
Torque converter clutch status by shift solenoid valve B output
| Torque Converter Clutch | Shift Solenoid Valve B |
|---|---|
| OFF | OFF |
| ON | ON |

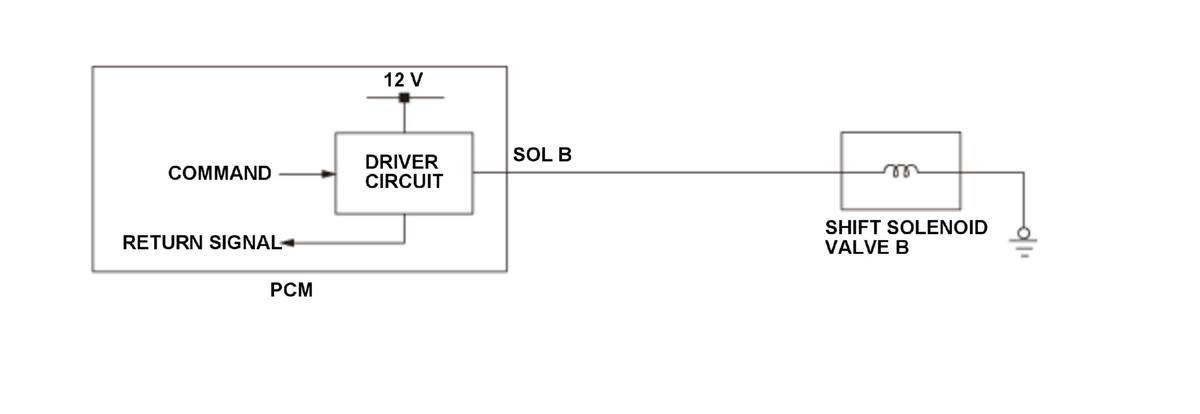

Shift solenoid valve B controls the drain circuit close/open commanded by the powertrain control module (PCM) ON/OFF commands. Oil passages which supply/discharge the oil pressure to torque converter clutch is switched by the shift solenoid valve B ON/OFF control. The PCM commands the driver circuit to turn on the shift solenoid valve B. The circuit diagnoses malfunctions such as a circuit short or open, and sends back a return signal during the PCM's command. When the return signal does not match the PCM command to turn ON the shift solenoid valve B, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | Two drive cycles, MIL on, A/T gear position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 10.0 V | - |
[ ]: HDS Parameter
Malfunction Threshold
The return signal does not match the command to turn ON shift solenoid valve B [Shift Sol B] for at least 1 second.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Shift solenoid valve B SOL B line short to ground
- Shift solenoid valve B power supply line failure (includes fuse blown)
- Shift solenoid valve B internal circuit short
- PCM internal circuit failure
Confirmation Procedure
Operating Condition
- Start the engine. Hold the engine speed [Engine Speed] at 3, 000 rpm without load (in P or N) until the radiator fan comes on.
- Drive the vehicle in D at a steady speed of 37 mph (60 km/h), for at least 10 seconds.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
