Park Pin Switch Test: Test

Park Pin Switch - Test

Courtesy of HONDA, U.S.A., INC.

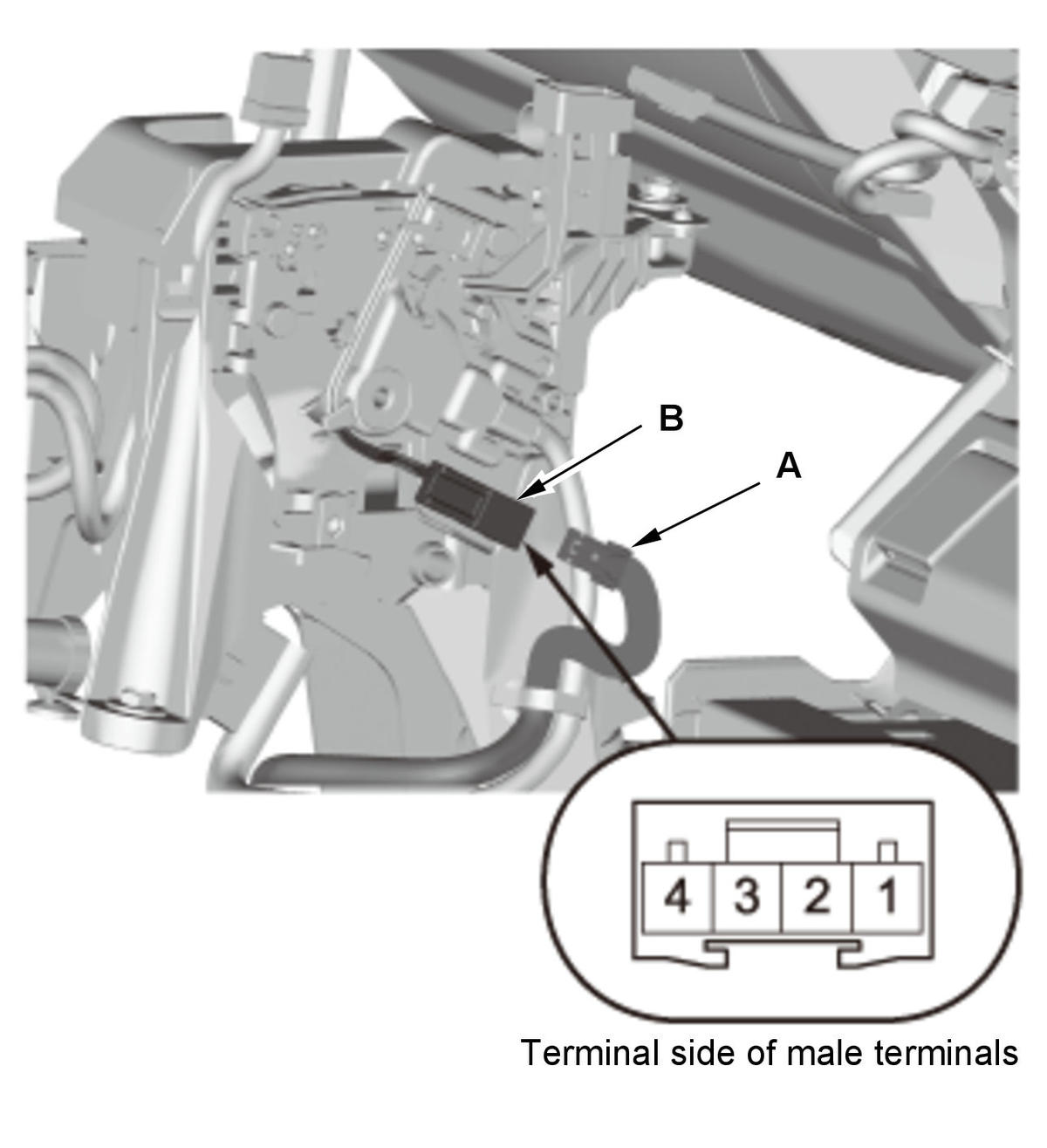

1. Disconnect the connector (A).

2. Check for continuity between the terminals No. 1 and No. 2.

There should be no continuity when the shift lever is moved to P and the shift lever button is released.
There should be continuity when the shift lever button pressed to the shift lever is moved out of P.

3. If the continuity is not as specified, check the shift cable adjustment . If the cable adjustment is OK, replace the park pin switch (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
