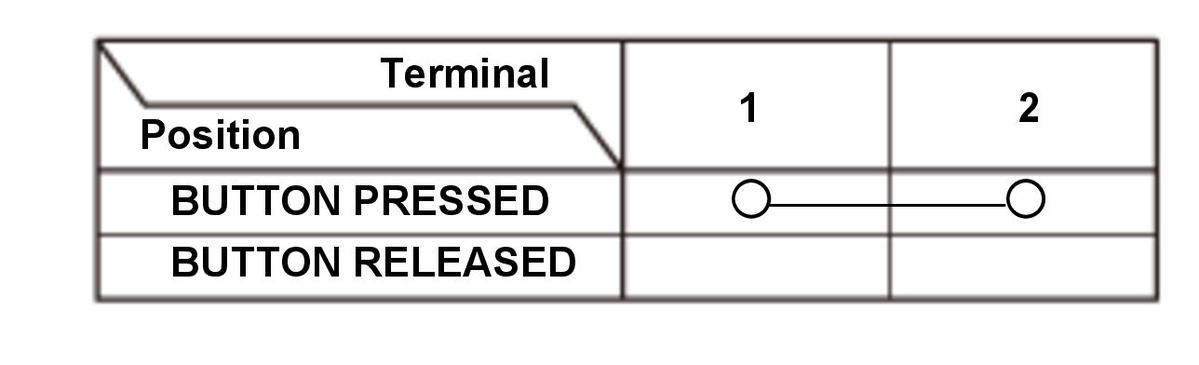

Outer Handle Switch
Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

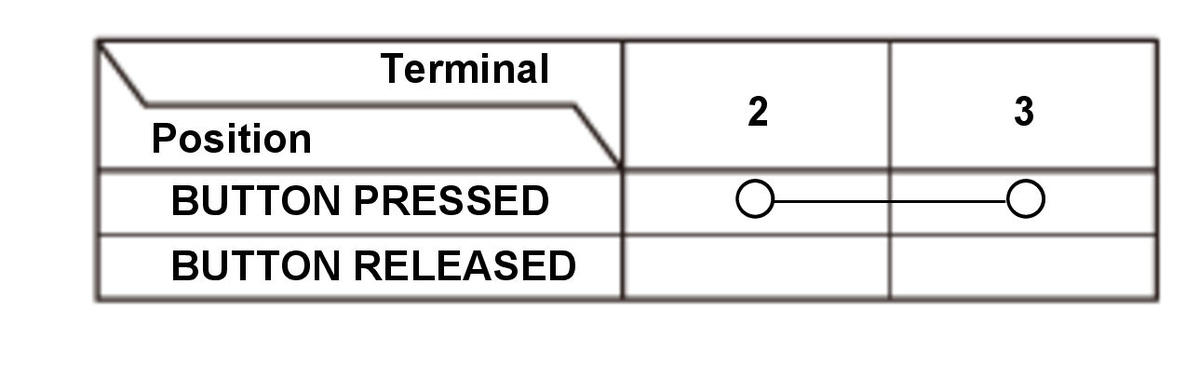

Lock Switch
Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.
|

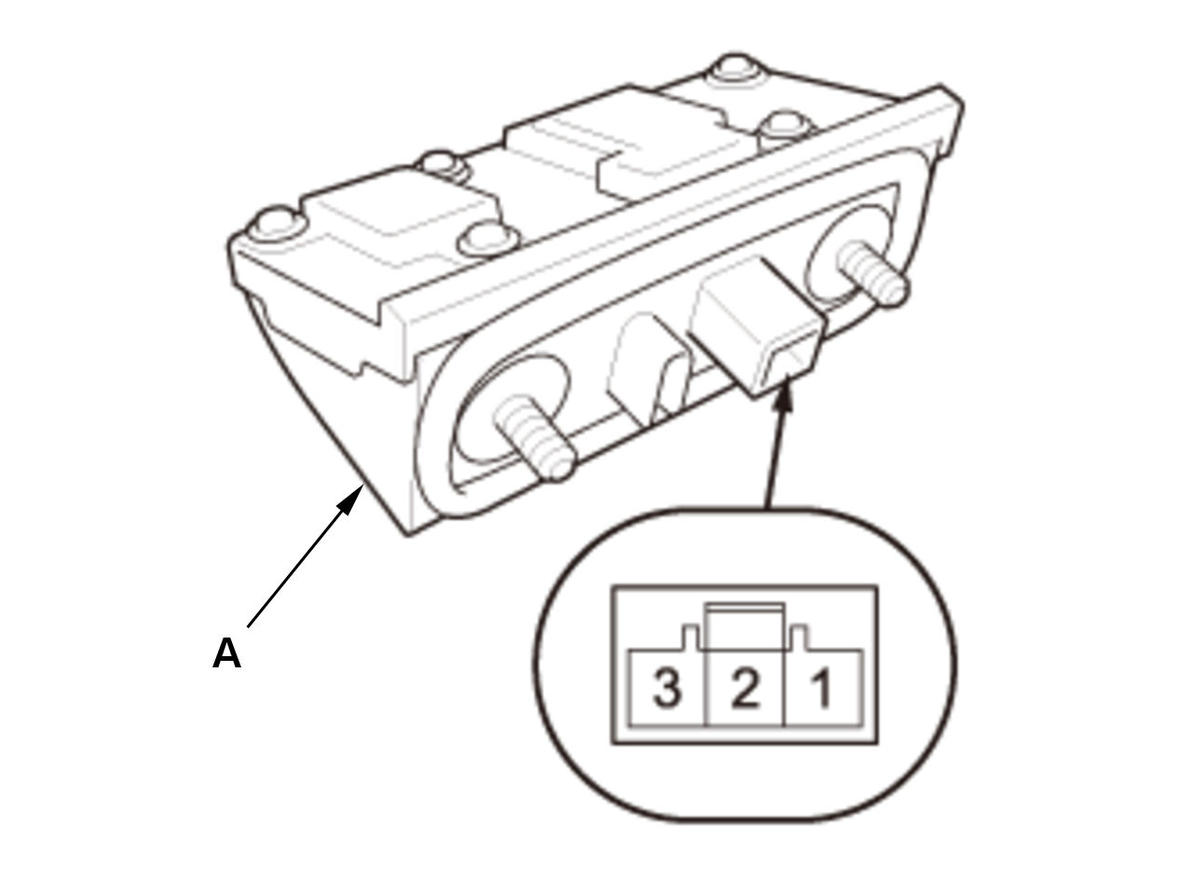

1. Check for continuity between the terminals in each switch position according to the tables. 2. If the continuity is not as specified, replace the tailgate outer handle/lock switch (A).
|
