Removal and Installation

Rocker Arm Oil Control Valve - Remove

Without rocker arm oil pressure switch or rocker arm oil pressure sensor

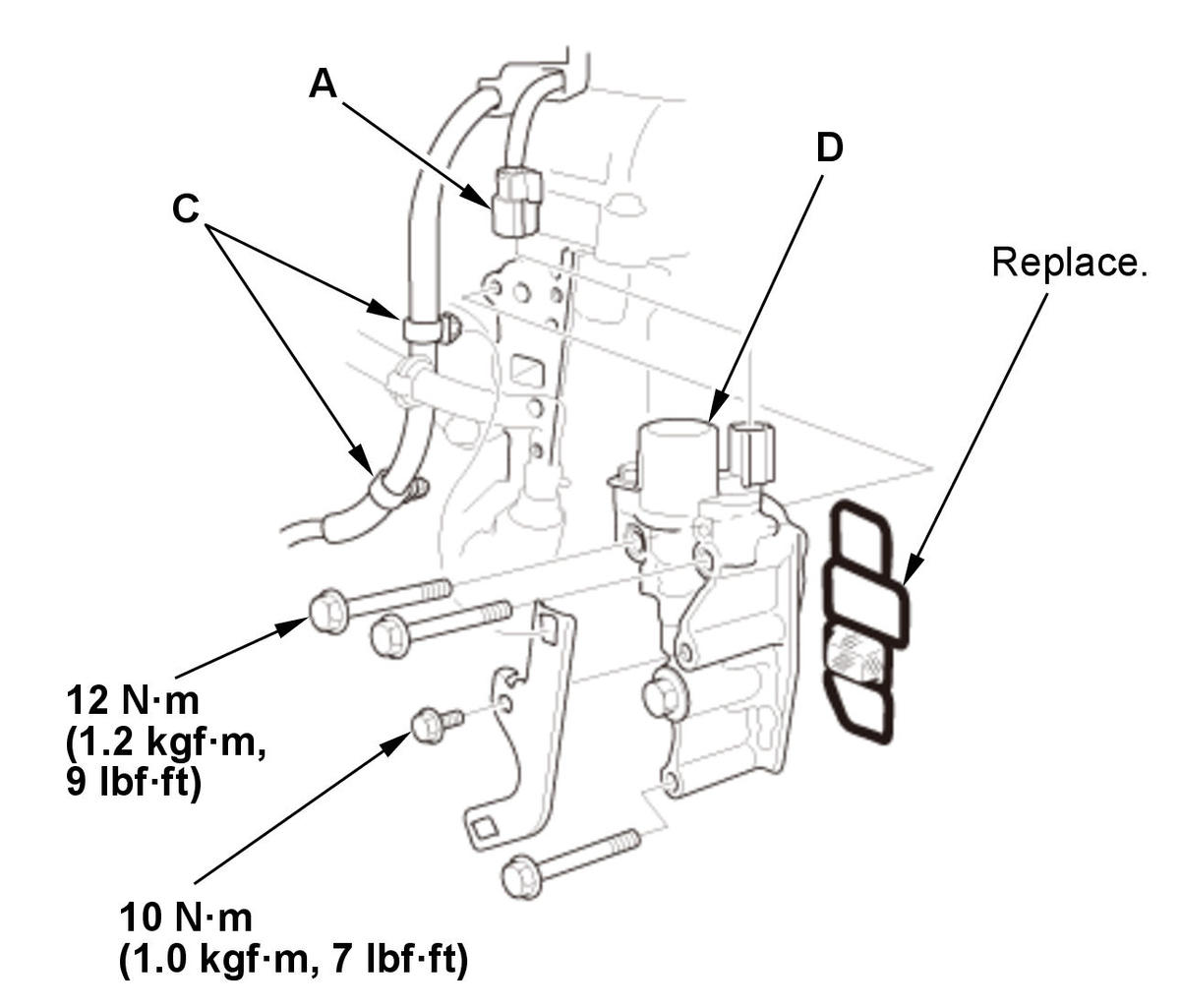

Fig 1: Rocker Arm Oil Control Valve (W/O Rocker Arm Oil Pressure Switch) With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

With rocker arm oil pressure switch or rocker arm oil pressure sensor

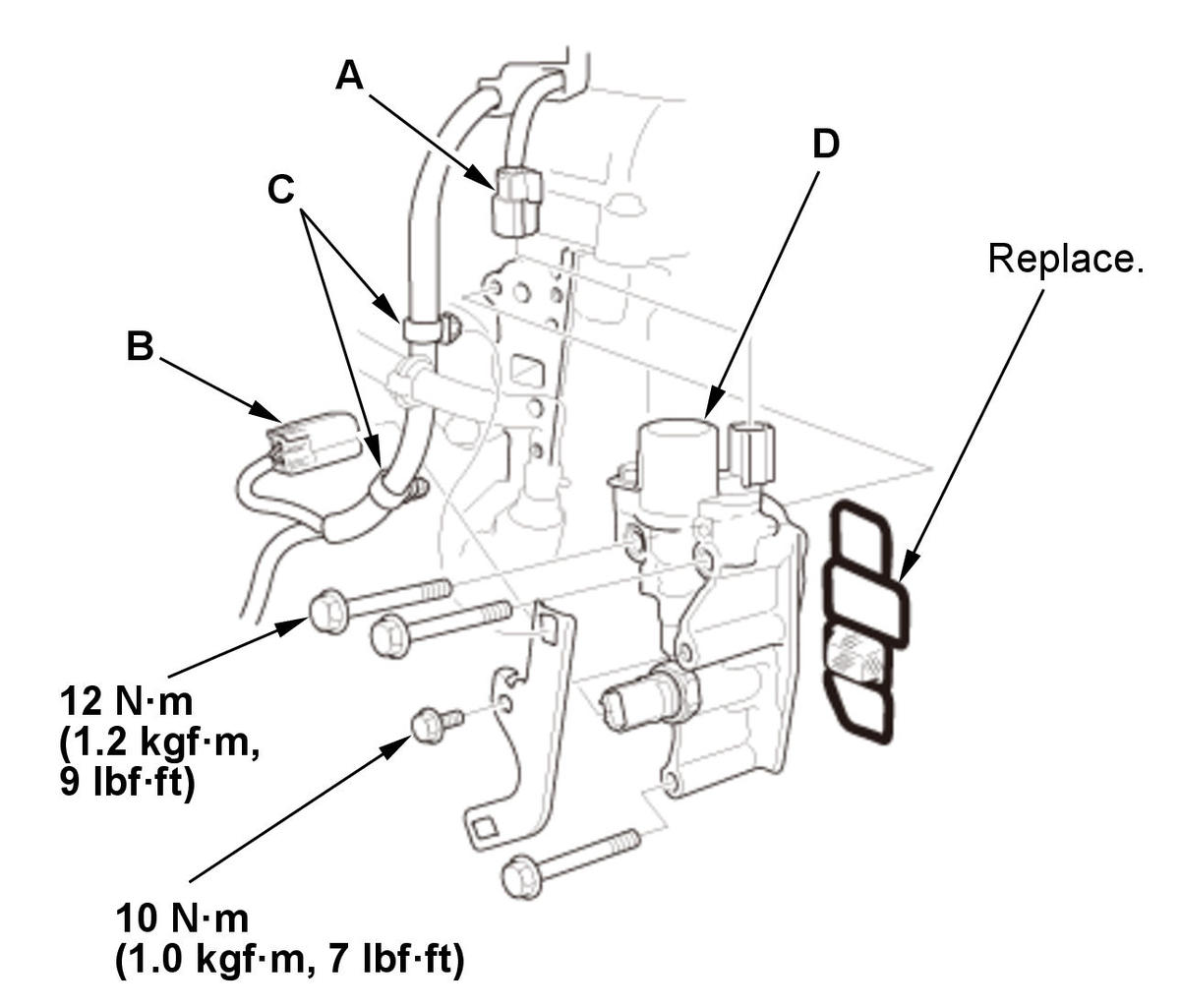

Fig 2: Rocker Arm Oil Control Valve (W/ Rocker Arm Oil Pressure Switch) With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A).

2. With rocker arm oil pressure switch or rocker arm oil pressure sensor: Disconnect the connector (B).

3. Remove the harness clamps (C).

4. Remove the rocker arm oil control valve (D).

All Removed Parts - Install

1. Install the parts in the reverse order of removal with a new O-ring.
