Tailgate Release Actuator Test: Test

Tailgate Release Actuator - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

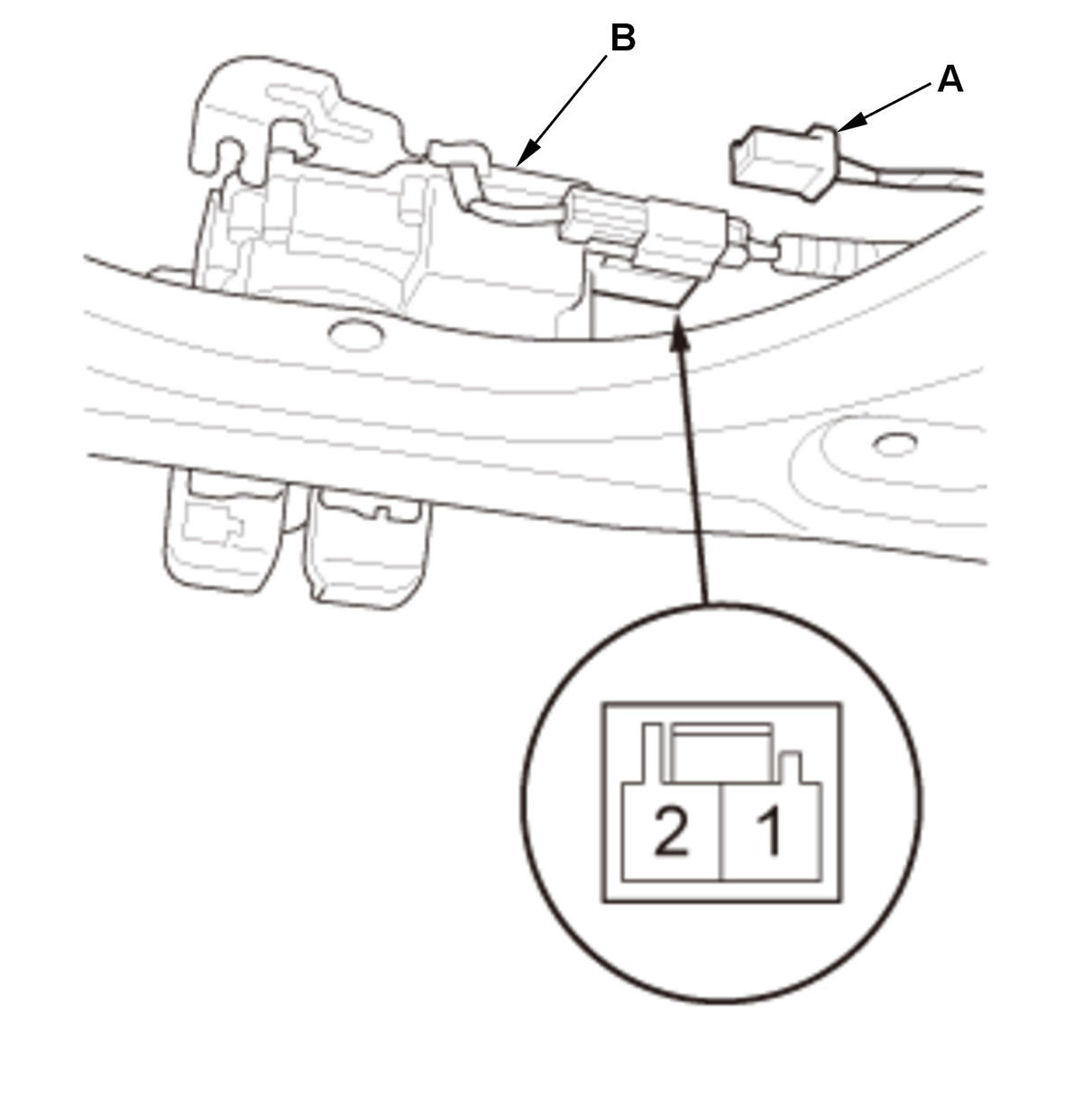

1. Disconnect the connector (A).

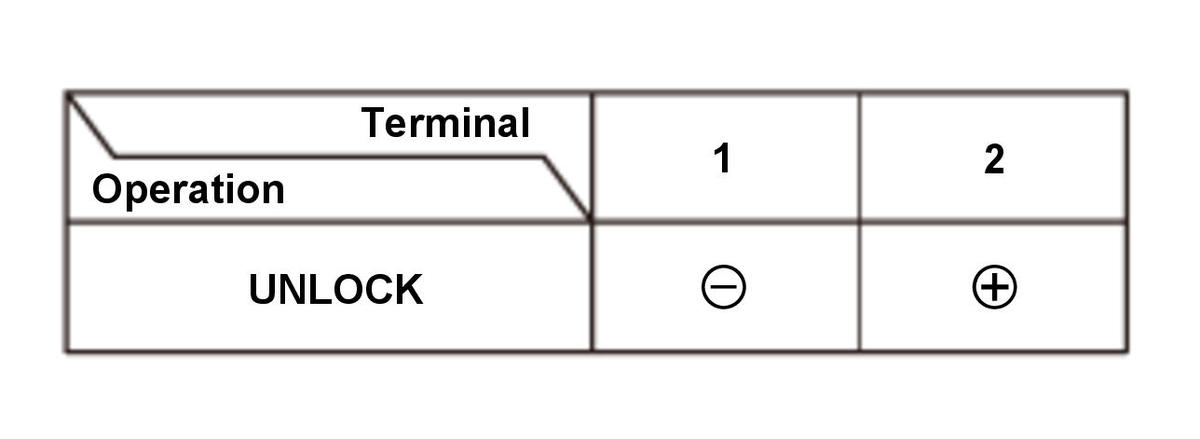

2. Check the actuator operation by connecting 12 volt battery power and ground according to the table.

NOTE: To prevent damage to the actuator, apply 12 volt battery power only momentarily.

3. If the actuator does not work, the tailgate release actuator is faulty; replace the tailgate latch (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
