Engine Start/Stop Switch Test (2019 2020 2021): Test

Dashboard Switch Panel - Remove
Engine Start/Stop Switch - Test

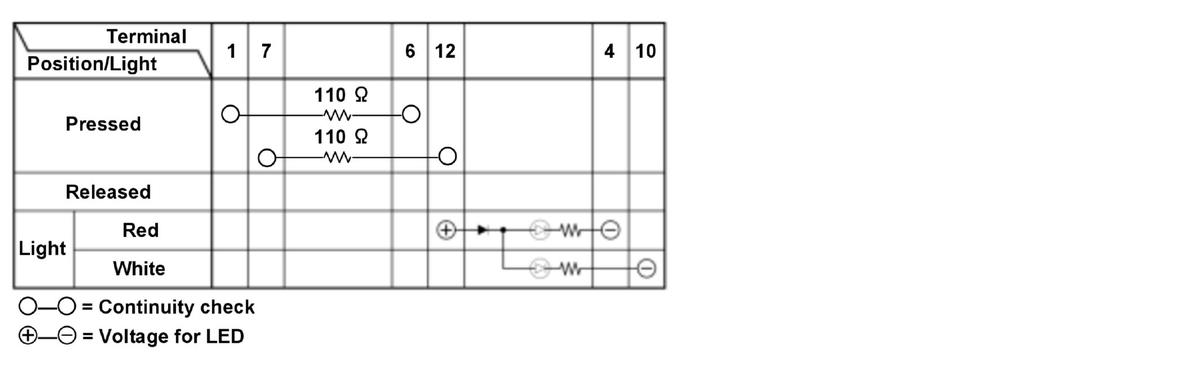

1. Check the engine start/stop switch (A) according to the table.

NOTE:
- When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the engine start/stop switch .
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
