Security Hood Switch Test: Test

  1. Hood Latch - Remove
  2. Security Hood Switch - Test
    GHH438379GHH438380Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH438379GHH438380Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

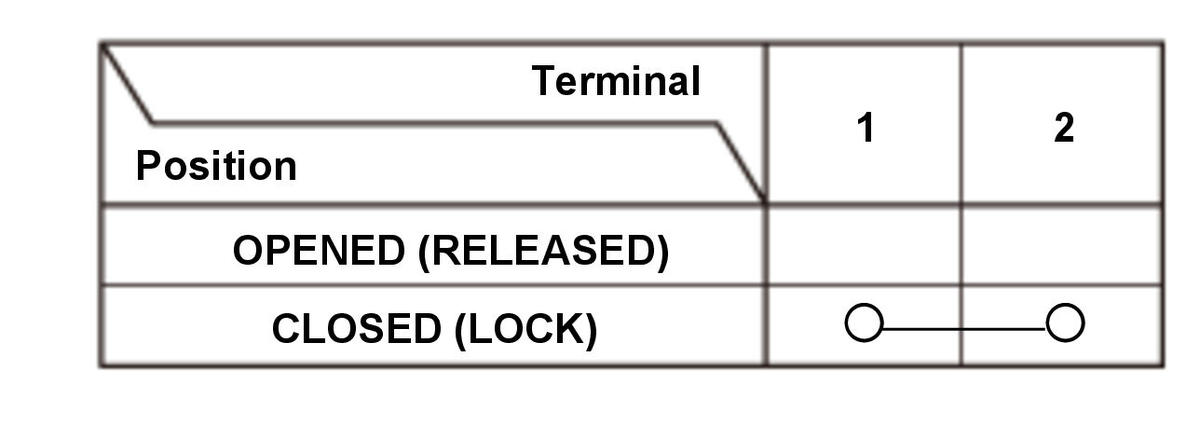

    		 1. Check for continuity between the terminals in each switch position according to the table.

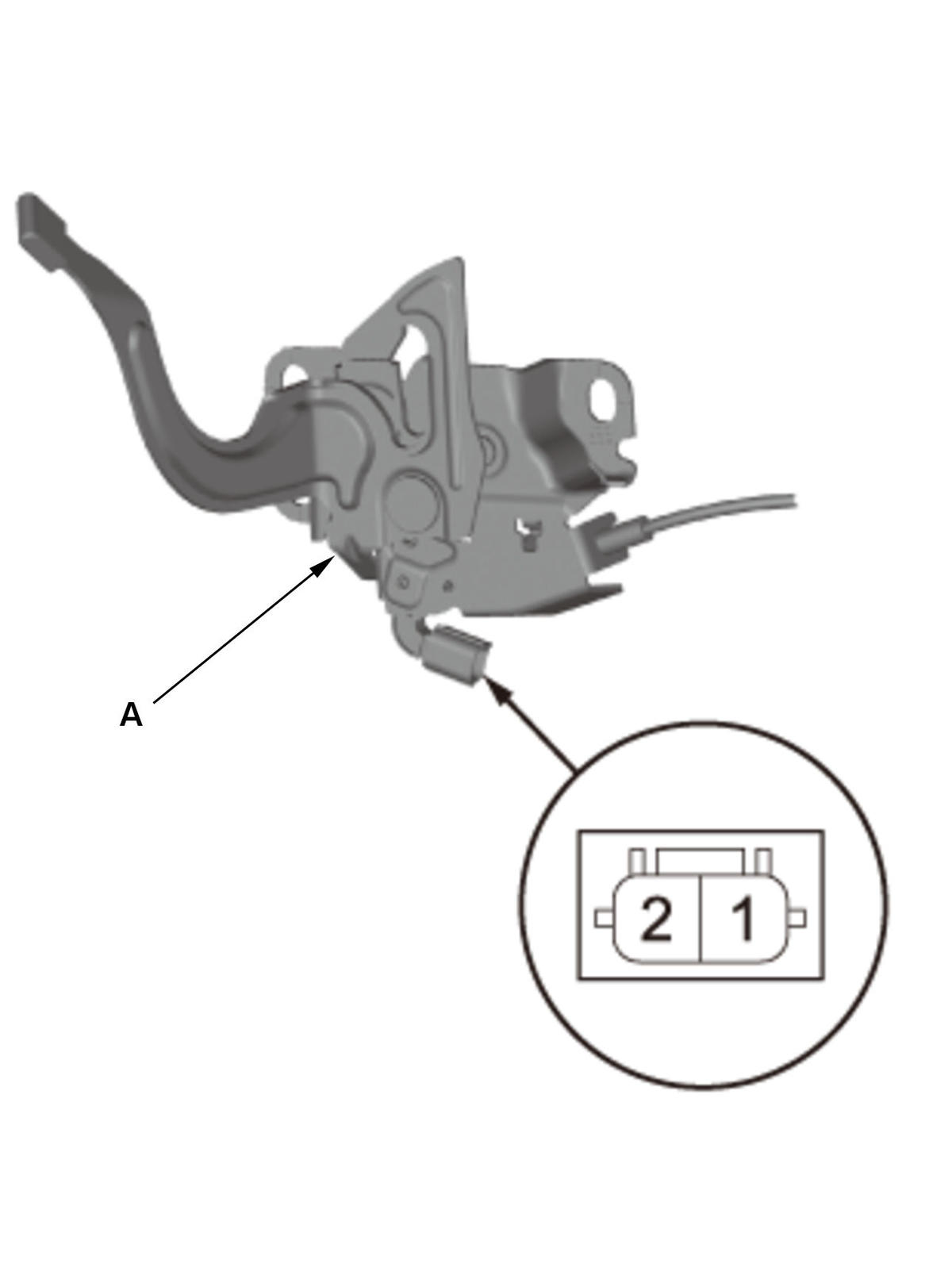

    2. If the continuity is not as specified, the security hood switch is faulty; replace the hood latch

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
