Component Location Index: Notes

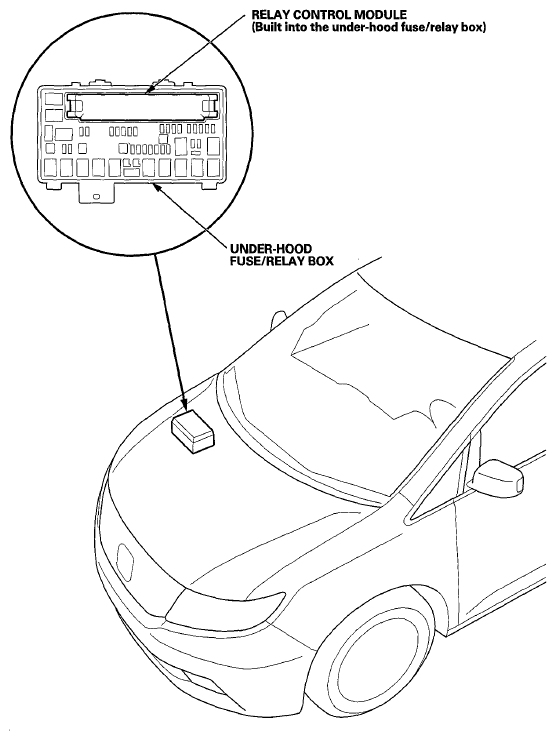

Fig 1: Identifying Multiplex Integrated Control System Replacement Components Locations (1 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

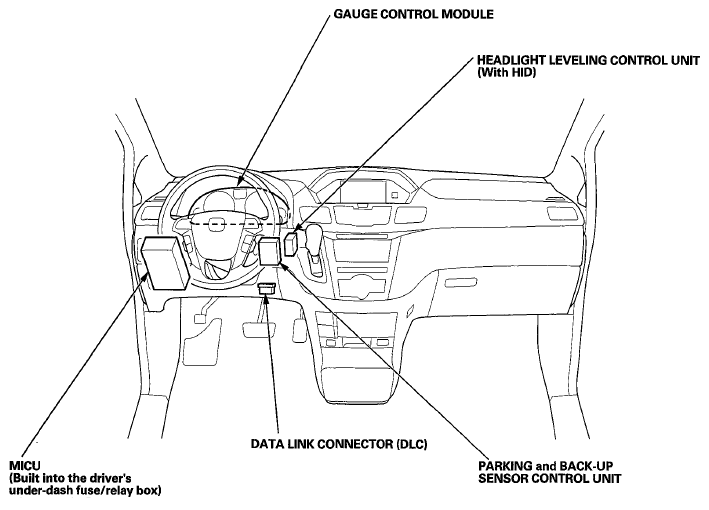

Fig 2: Identifying Multiplex Integrated Control System Replacement Components Locations (2 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
