Keyless/Power Door Locks/Security System Symptom Troubleshooting - Security alarm system will not arm (2018 2019 2020 2021 2022 2023 2024)

NOTE:  Before troubleshooting, check the B-CAN DTCs. If any DTC is indicated, troubleshoot the indicated DTC first.

1. Switch information check

   -1. Turn the vehicle to the ON mode.

   -2. Check the parameter (s) below with the HDS.

   Door Multiplex Control Unit

   Signal	Current conditions
   	Value	Unit
   Driver's Door Lock Knob Switch (UNLOCK)
   Passenger's Door Lock Knob Switch (UNLOCK)
   Driver's Door Key Cylinder Switch (LOCK)

   Body Control Module

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch
   Driver's Rear Door Lock Knob Switch (UNLOCK)
   Passenger's Rear Door Lock Knob Sw. (UNLOCK)
   Driver's Door Switch
   Front Passenger's Door Switch
   Driver's Rear Door Switch
   Passenger's Rear Door Switch
   Security Hood Switch

   Is each switch information value OK?

   YES

   Intermittent failure, the system is OK at this time.

   NO: Tailgate latch switch (without power tailgate)

   Tailgate latch switch circuit troubleshooting: go to step 2.

   NO: Power tailgate closer unit (full latch switch) (with power tailgate)

   Power tailgate closer unit circuit troubleshooting: go to step  8.

   NO: Hood latch switch

   Hood latch switch circuit troubleshooting: go to step  15.

   NO: Driver's door lock knob switch

   Driver's door lock knob switch circuit troubleshooting: go to step  21.

   NO: Front passenger's door lock knob switch

   Front passenger's door lock knob switch circuit troubleshooting: go to step  27.

   NO: Left sliding door lock knob switch

   Left sliding door lock knob switch circuit troubleshooting: go to step  33.

   NO: Right sliding door lock knob switch

   Right sliding door lock knob switch circuit troubleshooting: go to step  39.

   NO: Driver's door switch

   Driver's door switch circuit troubleshooting: go to step  45.

   NO: Front passenger's door switch

   Front passenger's door switch circuit troubleshooting: go to step  50.

   NO: Left sliding door switch

   Left sliding door switch circuit troubleshooting: go to step  55.

   NO: Right sliding door switch

   Right sliding door switch circuit troubleshooting: go to step  60.

   NO: Driver's door key cylinder switch

   Driver's door key cylinder switch circuit troubleshooting: go to step  65.

2. Keyless/power door locks/security system check 1

   -1. With the tailgate closed, check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information value ON?

   YES

   Go to step 3.

   NO

   Go to step  5.

3. Determine possible failure area (tailgate latch switch, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Tailgate latch 4P connector

   -3. Check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information value OFF?

   YES

   Faulty tailgate latch switch; replace the tailgate latch .

   NO

   Go to step 4.

4. Shorted wire check (TAIL GATE SW line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Body control module connector D (40P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Tailgate latch 4P connector: disconnected
   Test point 1	Body control module connector D (40P) No. 27
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short to ground in the wire.

   NO

   The TAIL GATE SW wire is OK. Replace the body control module .

5. Keyless/power door locks/security system check 2

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Tailgate latch 4P connector

   -3. Connect terminals A and B with a jumper wire.

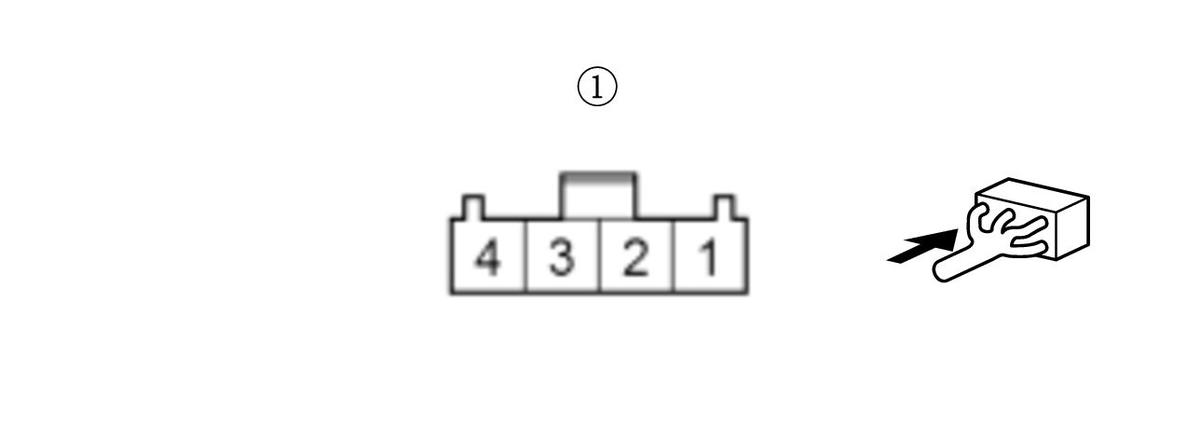

   Terminal A	Tailgate latch 4P connector (female terminals) No. 1:
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   -4. Check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information value ON?

   YES

   Go to step 6.

   NO

   Go to step  7.

6. Open wire check (PGND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the jumper wire.

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Tailgate latch 4P connector: disconnected
   Test point 1	Tailgate latch 4P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The PGND wire is OK. Faulty tailgate latch switch; replace the tailgate latch .

   NO

   Repair an open or high resistance in the ground wire or poor ground (G601).

7. Open wire check (TAIL GATE SW line)

   -1. Remove the jumper wire.

   -2. Connect terminals A and B with a jumper wire.

   Terminal A	Body control module connector D (40P) No. 27
   Terminal B	Body ground

   -3. Check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information value ON?

   YES

   Repair an open or high resistance in the wire.

   NO

   The TAIL GATE SW wire is OK. Replace the body control module .

8. Keyless/power door locks/security system check 1

   -1. With the power tailgate closed, check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information value ON?

   YES

   Go to step 9.

   NO

   Go to step  11.

9. Determine possible failure area (full latch switch, others)

   -1. Disconnect the following connector.

   Power tailgate closer unit connector B (6P)

   -2. Check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information value OFF?

   YES

   Faulty power tailgate full latch switch; replace the power tailgate closer unit .

   NO

   Go to step 10.

10. Shorted wire check (TAIL GATE SW line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Body control module connector D (40P)

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Power tailgate closer unit connector B (6P): disconnected Body control module connector D (40P): disconnected
    Test point 1	Body control module connector D (40P) No. 27
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The TAIL GATE SW wire is OK. Replace the body control module .

11. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Power tailgate closer unit connector B (6P)

    -3. Connect terminals A and B with a jumper wire.

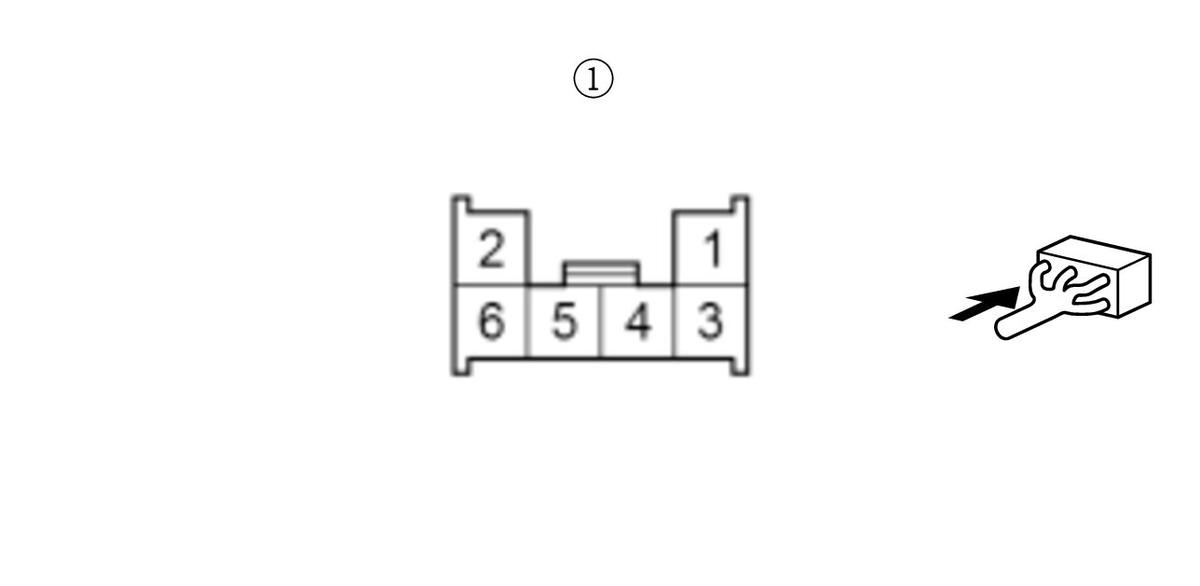

    Terminal A	Power tailgate closer unit connector B (6P) (female terminals) No. 1:
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Trunk Lid/Tailgate Switch

    Is information value ON?

    YES

    Go to step 12.

    NO

    Go to step  14.

12. Open wire check (PTG/PTL SEG3 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Disconnect the following connector.

    Power tailgate control unit connector A (24P)

    -4. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Power tailgate closer unit connector B (6P): disconnected Power tailgate control unit connector A (24P): disconnected
    Test point 1	Power tailgate closer unit connector B (6P) (female terminals) No. 2:
    Test point 2	Power tailgate control unit connector A (24P) No. 21

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 13.

    NO

    Repair an open or high resistance in the wire.

13. Power Tailgate Latch/Ratchet Switch check

    -1. Do the Power Tailgate Latch/Ratchet Switch test

    Is the switch OK?

    YES

    Replace the power tailgate control unit .

    NO

    Replace the power tailgate closer unit .

14. Open wire check (TAIL GATE SW line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector D (40P) No. 27
    Terminal B	Body ground

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Trunk Lid/Tailgate Switch

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The TAIL GATE SW wire is OK. Replace the body control module .

15. Keyless/power door locks/security system check 1

    -1. With the hood opened, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Security Hood Switch

    Is information value OFF?

    YES

    Go to step 16.

    NO

    Go to step  18.

16. Determine possible failure area (hood latch switch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Hood latch switch 2P connector

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Security Hood Switch

    Is information value ON?

    YES

    Faulty hood latch switch; replace the hood latch .

    NO

    Go to step 17.

17. Shorted wire check (HOOD SW line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Body control module connector C (28P)

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Body control module connector C (28P): disconnected Hood latch switch 2P connector: disconnected
    Test point 1	Body control module connector C (28P) No. 19
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The HOOD SW wire is OK. Replace the body control module .

18. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Hood latch switch 2P connector

    -3. Connect terminals A and B with a jumper wire.

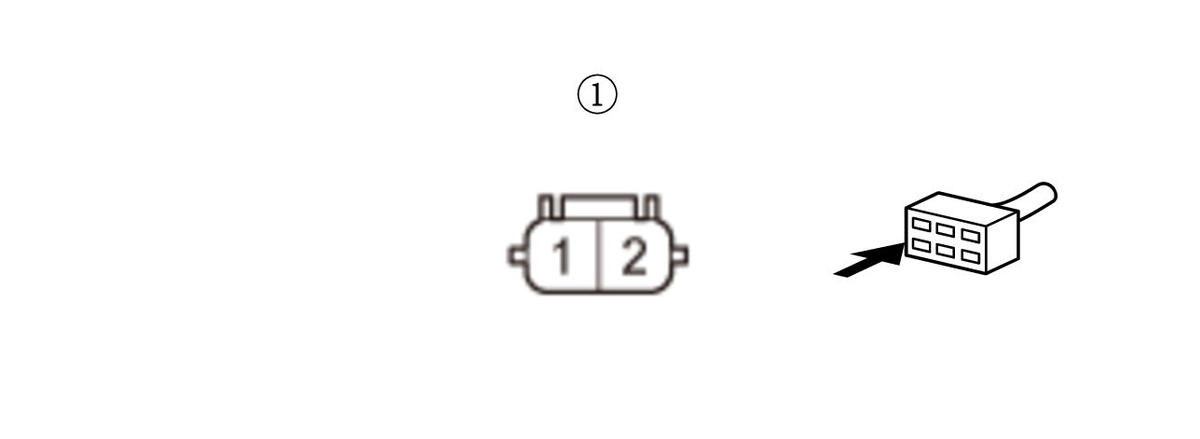

    Terminal A	Hood latch switch 2P connector (female terminals) No. 1:
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Security Hood Switch

    Is information value OFF?

    YES

    Go to step 19.

    NO

    Go to step  20.

19. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Hood latch switch 2P connector: disconnected

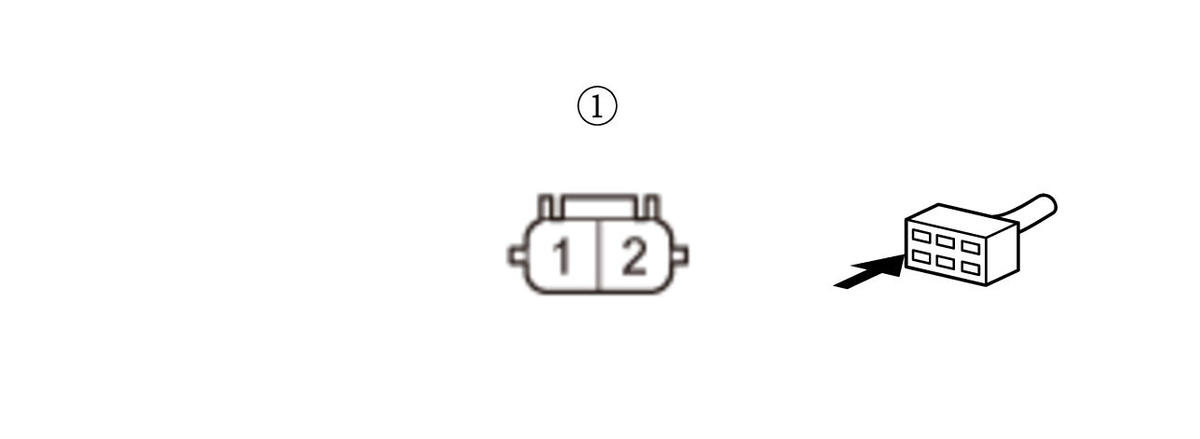

    Test point 1	Hood latch switch 2P connector (female terminals) No. 2:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty hood latch switch; replace the hood latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G202).

20. Open wire check (HOOD SW line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector C (28P) No. 19
    Terminal B	Body ground

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Security Hood Switch

    Is information value OFF?

    YES

    Repair an open or high resistance in the wire.

    NO

    The HOOD SW wire is OK. Replace the body control module .

21. Keyless/power door locks/security system check 1

    -1. With the driver's door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 22.

    NO

    Go to step  24.

22. Determine possible failure area (driver's door lock knob switch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Driver's door latch 10P connector

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value OFF?

    YES

    Faulty driver's door lock knob switch; replace the driver's door latch .

    NO

    Go to step 23.

23. Shorted wire check (DR SILCON UNLOCK line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Power window master switch 37P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Power window master switch 37P connector: disconnected Driver's door latch 10P connector: disconnected
    Test point 1	Power window master switch 37P connector No. 20

    Test point 2

    Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The DR SILCON UNLOCK wire is OK. Replace the power window master switch .

24. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Driver's door latch 10P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's door latch 10P connector (female terminals) No. 5:
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 25.

    NO

    Go to step  26.

25. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's door latch 10P connector: disconnected
    Test point 1	Driver's door latch 10P connector (female terminals) No. 7:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty driver's door lock knob switch; replace the driver's door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G402).

26. Open wire check (DR SILCON UNLOCK line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Power window master switch 37P connector No. 20
    Terminal B	Body ground

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The DR SILCON UNLOCK wire is OK. Replace the power window master switch .

27. Keyless/power door locks/security system check 1

    -1. With the front passenger's door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 28.

    NO

    Go to step  30.

28. Determine possible failure area (front passenger's door lock knob switch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Front passenger's door latch 10P connector

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information value OFF?

    YES

    Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

    NO

    Go to step 29.

29. Shorted wire check (AS SILCON UNLOCK line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Front passenger's power window switch 24P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Front passenger's power window switch 24P connector: disconnected Front passenger's door latch 10P connector: disconnected
    Test point 1	Front passenger's power window switch 24P connector No. 11
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The AS SILCON UNLOCK wire is OK. Replace the front passenger's power window switch .

30. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Front passenger's door latch 10P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Front passenger's door latch 10P connector (female terminals) No. 10:
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 31.

    NO

    Go to step 32.

31. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Front passenger's door latch 10P connector: disconnected
    Test point 1	Front passenger's door latch 10P connector (female terminals) No. 8:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G407).

32. Open wire check (AS SILCON UNLOCK line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Front passenger's power window switch 24P connector No. 11
    Terminal B	Body ground

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The AS SILCON UNLOCK wire is OK. Replace the front passenger's power window switch .

33. Keyless/power door locks/security system check 1

    -1. With the left sliding door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 34.

    NO

    Go to step  36.

34. Determine possible failure area (left sliding door lock knob switch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Left sliding door lock actuator 6P connector

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information indicator OFF?

    YES

    Faulty left sliding door lock knob switch; replace the left sliding door lock actuator .

    NO

    Go to step 35.

35. Shorted wire check (RR L SILCON UNLOCK line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Body control module connector C (28P)

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Body control module connector C (28P): disconnected Left sliding door lock actuator 6P connector: disconnected
    Test point 1	Body control module connector C (28P) No. 15
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR L SILCON UNLOCK wire is OK. Replace the body control module .

36. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Left sliding door lock actuator 6P connector

    -3. Connect terminals A and B with a jumper wire.

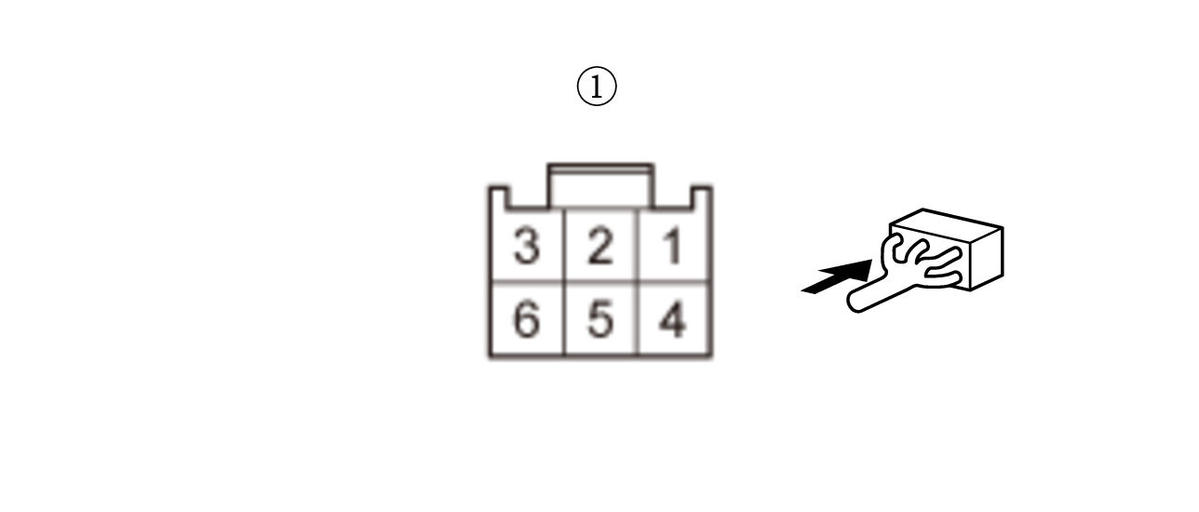

    Terminal A	Left sliding door lock actuator 6P connector (female terminals) No. 3:
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 37.

    NO

    Go to step  38.

37. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Left sliding door lock actuator 6P connector: disconnected
    Test point 1	Left sliding door lock actuator 6P connector (female terminals) No. 6:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty left sliding door lock knob switch; replace the left sliding door lock actuator .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G601).

38. Open wire check (RR L SILCON UNLOCK line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector C (28P) No. 15
    Terminal B	Body ground

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR L SILCON UNLOCK wire is OK. Replace the body control module .

39. Keyless/power door locks/security system check 1

    -1. With the right sliding door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value ON?

    YES

    Go to step 40.

    NO

    Go to step  42.

40. Determine possible failure area (right sliding door lock knob switch, others)

    -1. Disconnect the following connector.

    Right sliding door lock actuator 6P connector

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value OFF?

    YES

    Faulty right sliding door lock knob switch; replace the right sliding door lock actuator .

    NO

    Go to step 41.

41. Shorted wire check (RR R SILCON UNLOCK line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Body control module connector C (28P)

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Body control module connector C (28P): disconnected Right sliding door lock actuator 6P connector: disconnected
    Test point 1	Body control module connector C (28P) No. 16
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR R SILCON UNLOCK wire is OK. Replace the body control module .

42. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Right sliding door lock actuator 6P connector

    -3. Connect terminals A and B with a jumper wire.

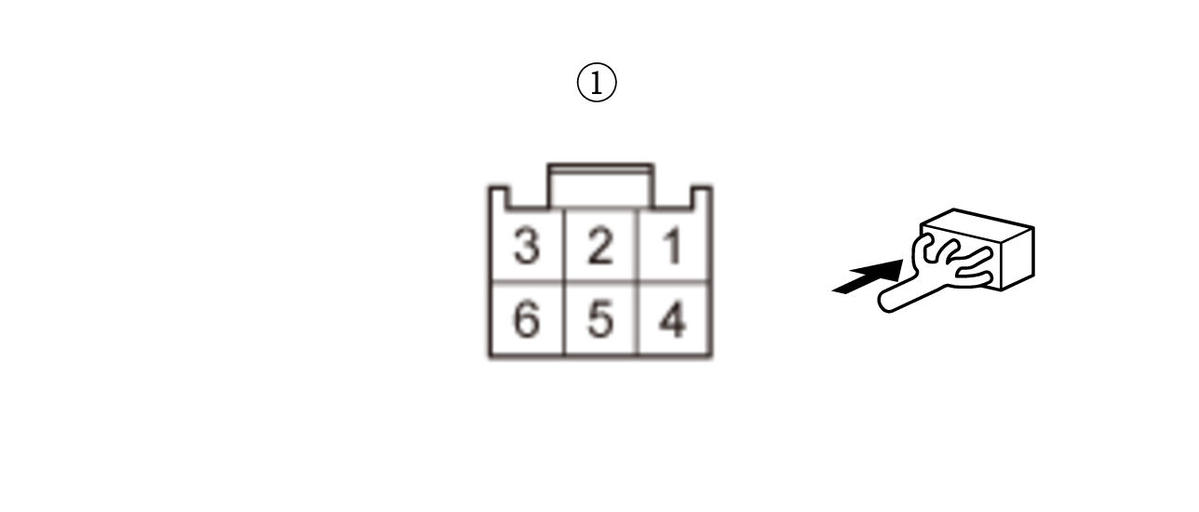

    Terminal A	Right sliding door lock actuator 6P connector (female terminals) No. 6:
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value ON?

    YES

    Go to step 43.

    NO

    Go to step  44.

43. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Right sliding door lock actuator 6P connector: disconnected
    Test point 1	Right sliding door lock actuator 6P connector (female terminals) No. 3:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty right sliding door lock knob switch; replace the right sliding door lock actuator .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G602).

44. Open wire check (RR R SILCON UNLOCK line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector C (28P) No. 16
    Terminal B	Body ground

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR R SILCON UNLOCK wire is OK. Replace the body control module .

45. Keyless/power door locks/security system check

    -1. With the driver's door closed, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Switch

    Is information value ON?

    YES

    Go to step 46.

    NO

    Go to step  48.

46. Driver's door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the driver's door switch.

    -3. Disconnect the following connector.

    Driver's door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Driver's door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 47.

    NO

    Replace the driver's door switch.

47. Shorted wire check (FL DOOR SW line)

    -1. Disconnect the following connector.

    Body control module connector D (40P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Driver's door switch 1P connector: disconnected
    Test point 1	Body control module connector D (40P) No. 22
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The FL DOOR SW wire is OK. Replace the body control module .

48. Driver's door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the driver's door switch.

    -3. Disconnect the following connector.

    Driver's door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Driver's door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 49.

    NO

    Replace the driver's door switch.

49. Open wire check (FL DOOR SW line)

    -1. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector D (40P) No. 22
    Terminal B	Body ground

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Switch

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The FL DOOR SW wire is OK. Replace the body control module .

50. Keyless/power door locks/security system check

    -1. With the front passenger's door closed, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Front Passenger's Door Switch

    Is information value ON?

    YES

    Go to step 51.

    NO

    Go to step  53.

51. Front passenger's door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the front passenger's door switch.

    -3. Disconnect the following connector.

    Front passenger's door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Front passenger's door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 52.

    NO

    Replace the front passenger's door switch.

52. Shorted wire check (FR DOOR SW line)

    -1. Disconnect the following connector.

    Body control module connector D (40P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Front passenger's door switch 1P connector: disconnected
    Test point 1	Body control module connector D (40P) No. 23
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The FR DOOR SW wire is OK. Replace the body control module .

53. Front passenger's door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the front passenger's door switch.

    -3. Disconnect the following connector.

    Front passenger's door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Front passenger's door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 54.

    NO

    Replace the front passenger's door switch.

54. Open wire check (FR DOOR SW line)

    -1. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector D (40P) No. 23
    Terminal B	Body ground

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Front Passenger's Door Switch

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The FR DOOR SW wire is OK. Replace the body control module .

55. Keyless/power door locks/security system check

    -1. With the left sliding door closed, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Switch

    Is information value ON?

    YES

    Go to step 56.

    NO

    Go to step  58.

56. Left sliding door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the left sliding door switch.

    -3. Disconnect the following connector.

    Left sliding door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Left sliding door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 57.

    NO

    Replace the left sliding door switch.

57. Shorted wire check (RL DOOR SW line)

    -1. Disconnect the following connector.

    Body control module connector D (40P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Left sliding door switch 1P connector: disconnected
    Test point 1	Body control module connector D (40P) No. 24
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RL DOOR SW wire is OK. Replace the body control module .

58. Left sliding door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the left sliding door switch.

    -3. Disconnect the following connector.

    Left sliding door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Left sliding door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 59.

    NO

    Replace the left sliding door switch.

59. Open wire check (RL DOOR SW line)

    -1. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector D (40P) No. 24
    Terminal B	Body ground

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Switch

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RL DOOR SW wire is OK. Replace the body control module .

60. Keyless/power door locks/security system check

    -1. With the right sliding door closed, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Switch

    Is information value ON?

    YES

    Go to step 61.

    NO

    Go to step  63.

61. Right sliding door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the right sliding door switch.

    -3. Disconnect the following connector.

    Right sliding door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Right sliding door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 62.

    NO

    Replace the right sliding door switch.

62. Shorted wire check (RR DOOR SW line)

    -1. Disconnect the following connector.

    Body control module connector D (40P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Body control module connector D (40P): disconnected Right sliding door switch 1P connector: disconnected
    Test point 1	Body control module connector D (40P) No. 28
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR DOOR SW wire is OK. Replace the body control module .

63. Right sliding door switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the right sliding door switch.

    -3. Disconnect the following connector.

    Right sliding door switch 1P connector

    -4. Check for continuity between test points 1 and 2.

    Test point 1	Right sliding door switch 1P connector:
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 64.

    NO

    Replace the right sliding door switch.

64. Open wire check (RR DOOR SW line)

    -1. Connect terminals A and B with a jumper wire.

    Terminal A	Body control module connector D (40P) No. 28
    Terminal B	Body ground

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Switch

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR DOOR SW wire is OK. Replace the body control module .

65. Keyless/power door locks/security system check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

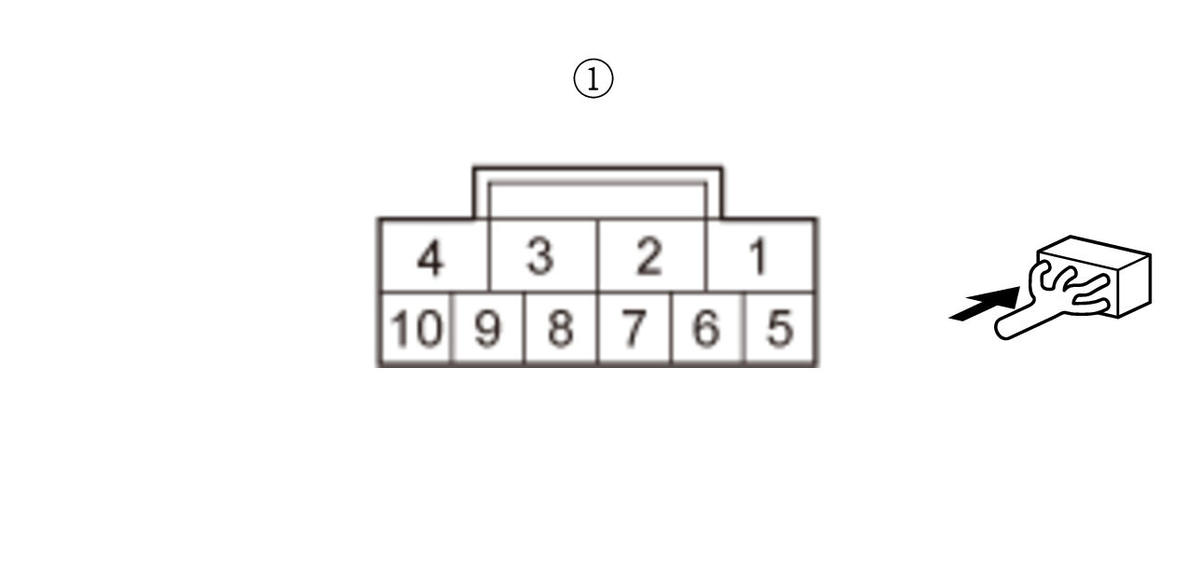

    Driver's door latch 10P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's door latch 10P connector (female terminals) No. 9:
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Key Cylinder Switch (LOCK)

    Is information value ON?

    YES

    Go to step 66.

    NO

    Go to step  68.

66. Driver's door key cylinder switch operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

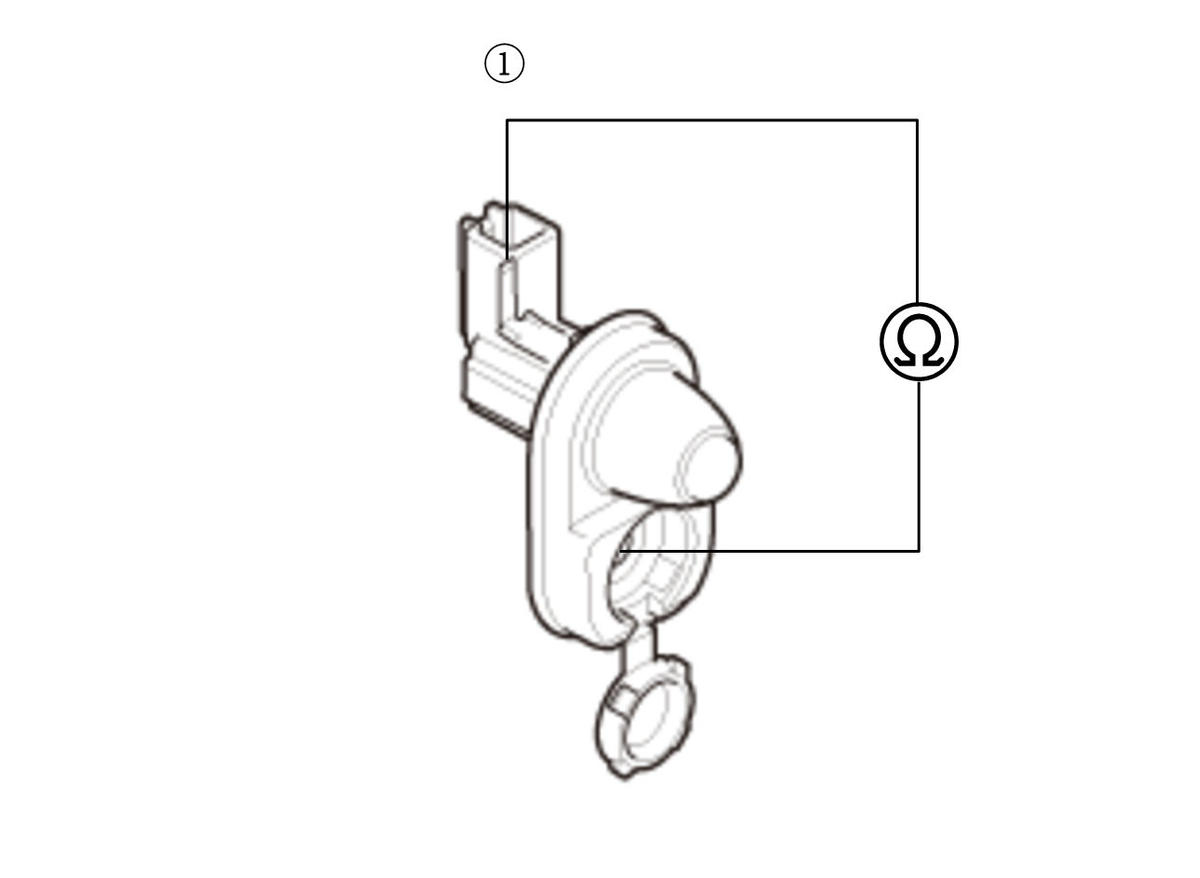

    -2. Test the driver's door key cylinder switch .

    Is the switch OK?

    YES

    Go to step 67.

    NO

    Faulty driver's door key cylinder switch; replace the driver's door latch .

67. Open wire check (GND line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's door latch 10P connector: disconnected
    Test point 1	Driver's door latch 10P connector (female terminals) No. 7:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Replace the power window master switch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G402).

68. Open wire check (KEY SW LOCK line)

    -1. Connect terminals A and B with a jumper wire.

    Terminal A	Power window master switch 37P connector No. 7
    Terminal B	Body ground

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Key Cylinder Switch (LOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The KEY SW LOCK wire is OK. Replace the power window master switch .
