How to Read History of the System Auto Stop Control Code
NOTE: Make sure the battery is fully charged before you begin.
1. Turn the vehicle to the OFF (LOCK) mode.

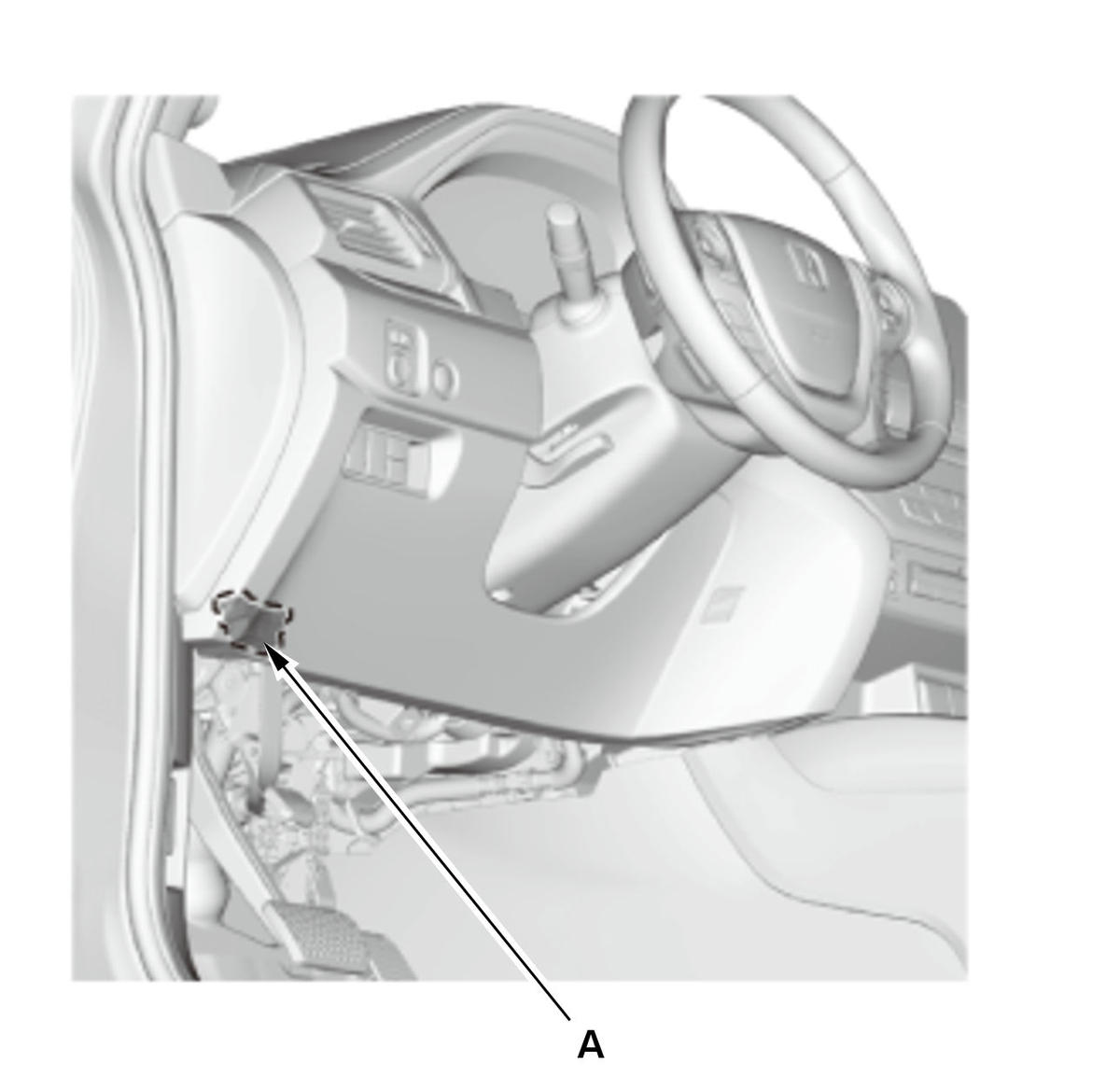

2. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (A) located under the driver's side of the dashboard.
3. Turn the vehicle to the ON mode.
4. Make sure the HDS communicates with the vehicle and the multipurpose camera unit. If it does not communicate go to the DTC troubleshooting index - Go to: Driving Support System (2016 2017 2018) .
5. In the DRIVING SUPPORT MENU of the HDS, select DATA LIST.
- ACC system auto stop control history is recorded from 1. When automatic cancellation takes place 11 times or more, the past 10 records are held. In this case, history 10 is the latest record and the 10 latest records are held. When 0, no record is held.
- When DTCs are cleared by the HDS, ACC system auto stop control history is cleared as well.
- Some of the following ACC system auto stop control codes may not be used for specific model specifications.
NOTE:
ACC System Auto Stop Control Codes
| Code | ACC system auto stops operating | ACC Indicator | Also check for |
|---|---|---|---|
| 82 | Adaptive cruise control (ACC) brake control temporarily prohibited by Electric Parking Brake | >-< | The ACC brake works continuously, or ACC brake control is temporarily prohibited by a communication line error detected between the multipurpose camera unit and electric parking brake control unit. |
| 83 | Radar detection unstable | >-< | Driving behind a target vehicle that caused unstable reception. |
| 84 | Target vehicle comes closer than the radar detecting limits | >-< | The target vehicle brakes suddenly, etc. |
| 85 | Extensive driving on a rough or winding road | >-< | Extensive driving on a rough or winding road. |
| 86 | Abnormal tire pressure | >-< | Abnormal tire pressure, flat tire. |
| 87 | Adaptive cruise control (ACC) brake control temporarily prohibited by VSA | >-< | The ACC brake works continuously, or ACC brake control is temporarily prohibited by a communication line error detected between the multipurpose camera unit and VSA modulator-control unit. |
| 88* | Radar temporary problem (temperature, voltage, etc.) | >-< | The millimeter wave radar temperature is too high, the millimeter wave radar supply voltage is too low, or out of detection condition. |
| 89 | Front wheel spin | >-< | Front wheel spin when the vehicle is driving. |
| 91 | Vehicle skidded, spun out, or abrupt steering wheel movements | >-< | Vehicle skidded, spun out, or abrupt steering wheel movements. |
| 93 | Front tire problem | >-< | Different diameter tires, flat tire, or large air pressure differential. |
| 94 | Rear tire problem | >-< | Different diameter tires, flat tire, or large air pressure differential. |
| 95* | Power supply voltage too high | >-< | Battery voltage |
| 96* | Power supply voltage too low | >-< | Battery voltage |
| 97* | Extensive driving on a rough or winding road. (CMBS/FCW) | >-< | Extensive driving on a rough road or turn the vehicle to the OFF (LOCK) mode when the vehicle is driving. |
| 98 | Multipurpose camera unit temperature too high | >-< | Parked under the blazing sun for a certain time. |
| 99 | Acceleration/deceleration abnormality | >-< | Detect the vehicle acceleration/deceleration abnormality. |
| 101 | Rear wheel locked | >-< | Driving with the parking brake applied, or the parking brake stuck. |
| 108 | Adaptive cruise control (ACC) brake control temporarily prohibited by ESB | >-< | The ACC brake works continuously, or ACC brake control is temporarily prohibited by a communication line error detected between the multipurpose camera unit and electric servo brake control unit. |
| 127 | i-DCD cannot receive traction request | >-< | After the DCT (the built-in motor type) shifted during the acceleration. (especially low speed). |
| 140 | Yaw rate sensor temporarily error (low voltage, etc.) | >-< | 12 Volt battery deterioration. |
*: While the code is detected, the CMBS operation stops temporarily.
6. Turn the vehicle to the OFF (LOCK) mode.
7. Disconnect the HDS from the DLC.
